Atmospheric Visibility Sensor for Weather Monitoring SystemsThe
An atmospheric visibility sensor is a device used to measure atmospheric visibility in real time by detecting fog, haze, rain, dust, and other environmental conditions. It features high accuracy, fast response, stable outdoor performance, and low maintenance, making it ideal for weather stations, highways, airports, ports, and smart transportation safety monitoring solutions.
- Atmospheric temperature: -40-60℃
- Atmospheric humidity: 0-100%RH
- Supply: 12-24VDC
- Saída: RS485(Modbus)
- Range: 10m-10km
- Accuracy: <2km
Preço: $1,805-$2,500
Introdução
An atmospheric visibility sensor is a precision instrument used to measure atmospheric transparency and determine meteorological optical range (MOR). Currently, mainstream visibility sensors operate based on the principle of forward scattering. Simply put, an emitter inside the sensor emits a beam of infrared light into the air, while a receiver, positioned at a specific angle (typically between 33° and 45°) relative to the emitted light, measures the intensity of the scattered light caused by airborne particles (such as fog, haze, rain, or snow). Using a specific mathematical model, the sensor converts the scattered light intensity into a current visibility value.
Structure atmospheric visibility sensor
- Optical Transmitter Module
Emits stable light signals for atmospheric visibility measurement. - Optical Receiver Module
Receives scattered light signals and converts them into visibility data. - High-Precision Detection Chamber
Ensures accurate monitoring under fog, haze, rain, and dust conditions. - LED / Infrared Light Source
Provides long-life and stable optical performance for continuous operation. - Signal Processing Circuit Board
Processes optical signals quickly for real-time visibility analysis. - Microprocessor Control Unit
Controls sensor operation and improves overall measurement accuracy. - Temperature Compensation Module
Reduces environmental temperature influence on sensor performance. - Anti-Condensation Protection System
Prevents moisture buildup and ensures reliable outdoor monitoring. - Weatherproof Protective Housing
Protects internal components from rain, dust, and harsh environments. - Mounting Bracket and Pole Clamp
Supports stable installation for highways, airports, and weather stations.
tamanhos
Mostrar detalhes

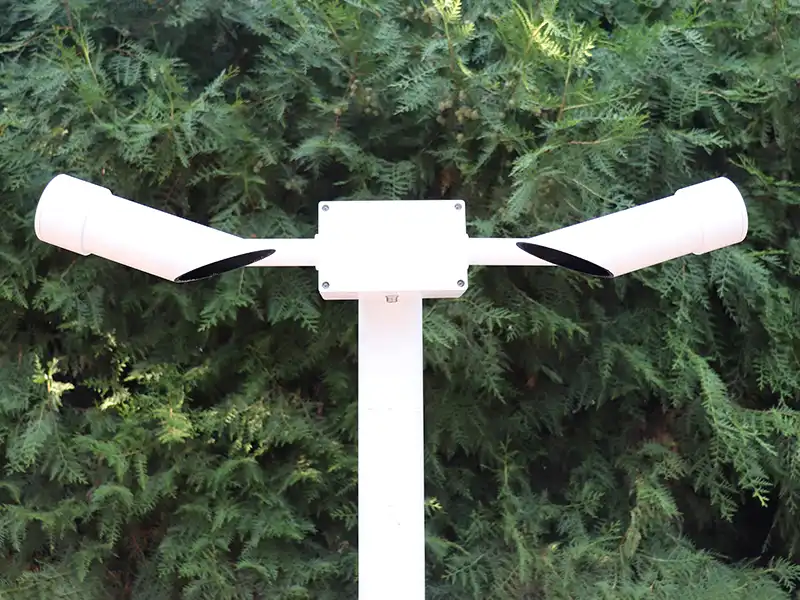

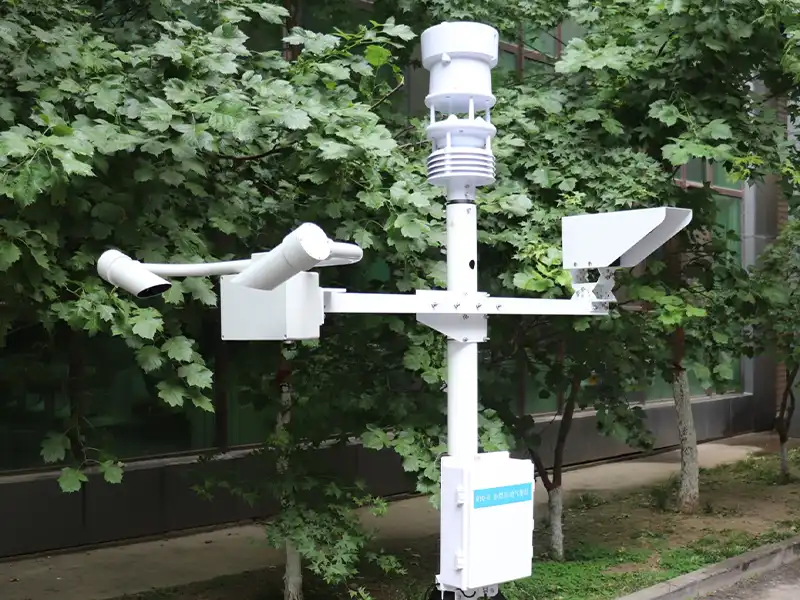

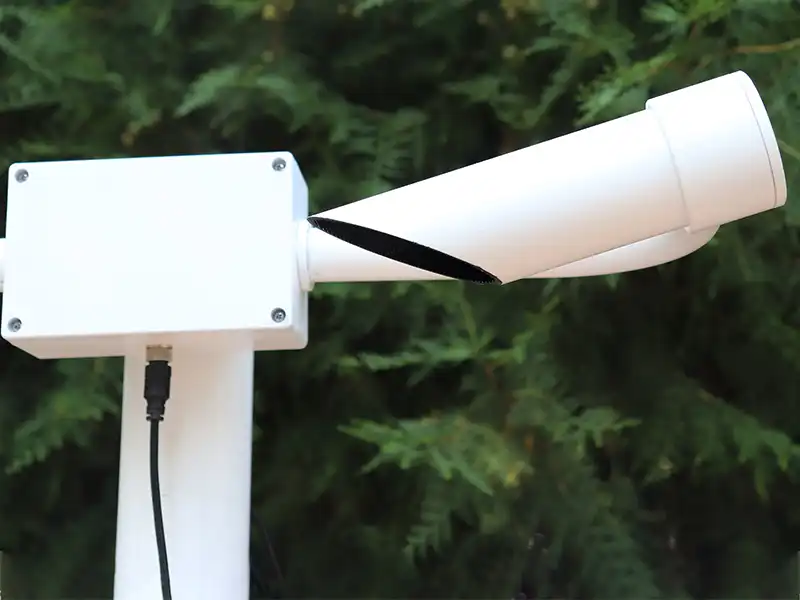

This atmospheric visibility sensor features a compact design, durability, and excellent weather resistance, making it ideal for long-term use in harsh outdoor environments. Detailed structural diagrams and multi-angle views clearly demonstrate its exceptional build quality, making it well-suited for applications in meteorology, transportation, and industrial monitoring. Below are detailed images of the atmospheric visibility sensor:
princípio do sensor de visibilidade
- Princípio de dispersão para a frente: Estima a visibilidade através da medição da intensidade de dispersão dos feixes de luz pelas partículas em suspensão no ar.
- Análise da atenuação da luz: Calcula a transmitância atmosférica com base em alterações na atenuação da intensidade da luz causadas por partículas.
- Modelo de resposta de múltiplas partículas: Distingue e compensa as caraterísticas de dispersão de partículas com tamanhos e formas variáveis - como fumo, poeira, neblina, chuva e neve - através de diferenciação algorítmica.
- Supressão da luz ambiente: Elimina a interferência de fontes de luz de fundo, como a luz solar e os faróis dos veículos, utilizando estruturas de sombreamento ótico e algoritmos de filtragem.
- Compensação de temperatura e humidade: Corrige automaticamente as variações ambientais que afectam a propagação da luz para melhorar a precisão do cálculo da visibilidade.
- Filtragem dinâmica e processamento de estabilidade: Suaviza os sinais de medição para evitar erros de interpretação causados por impulsos de chuva/neve e flutuações transitórias.
Diagrama de instalação
Especificações
The atmospheric visibility sensor is designed with high-precision optical technology and stable signal processing performance. Below are the key technical parameters that define its measurement accuracy, environmental adaptability, and long-term reliability for outdoor monitoring applications.
Parâmetros
| Gama de medição | 10m-10km |
| Tensão de funcionamento | DC12V ～24V |
| Consumo de energia | Sem aquecimento ≤ 2 W |
| Aquecimento | ≤ 6 W |
| Saída | Protocolo modbus padrão RS485 |
| Exatidão | ≤2km ± 2%;
2km~10km ± 5% |
| Intervalo de atualização de dados | Anos 15/60 |
| Temperatura de funcionamento | -40-60℃ |
| Humidade de funcionamento | 0-100%RH |
| Temperatura de armazenamento | -50-85℃ |
Features Meteorological Visibility Sensor
16 km Range
High-precision visibility measurement up to 16 km for wide-area monitoring.
Saída flexível
Multiple output options for easy system integration and data transmission.
42° Forward Scatter
Proven optical design ensures stable and reliable measurement performance.
Anti-Icing Design
Geometrical structure reduces icing effects for harsh weather operations.
Compact & Lightweight
Small and light structure for convenient installation and deployment.
Instalação fácil
Simple setup and maintenance for efficient field operation.
Applications atmospheric visibility sensor
The atmospheric visibility sensor is widely used in monitorização meteorológica, transportation safety, aviation, maritime operations, and industrial environmental systems. It provides real-time and reliable visibility data, helping improve safety, operational efficiency, and early warning capabilities in complex weather conditions.
Road Weather Information Systems (RWIS)
Provides real-time visibility data to support highway safety management and traffic control decisions.
Fog Detection Networks
Enables wide-area monitoring of fog events and supports early warning systems for low-visibility conditions.
Port Safety Management
It monitors weather conditions such as fog, haze, rain, and dust storms in real time, providing critical data for weather analysis and forecasting.
Airport Weather Systems (AWOS)
Supplies critical visibility data for aviation safety and flight operations.
Tunnel Air Quality Monitoring
Supports safety and ventilation control in enclosed transportation tunnels.
Meteorological Monitoring Stations
Provides essential data for weather forecasting, climate analysis, and environmental research.
atmospheric visibility sensor custom
The optical visibility sensor can be flexibly customized to meet different project requirements across meteorology, transportation, aviation, and industrial monitoring applications. From output interfaces to measurement range and structural design, customized solutions ensure better system compatibility, improved performance, and reliable operation in diverse environmental conditions.
Opções de personalização
- Gama de medição
The visibility range can be adjusted to meet specific application scenarios such as highways, airports, or industrial zones. - Output Signal Options
Supports customization of RS485, Modbus, analog output, or other communication protocols for seamless system integration. - Structural Design
Housing materials, mounting methods, and compact designs can be adapted for different installation environments. - Environmental Adaptation Upgrade
- Enhanced protection levels, such as anti-corrosion, anti-salt fog, and anti-icing, can be customized for harsh climates.
- Configuração da fonte de alimentação
Flexible voltage options can be provided to match different power system requirements. - Calibration & Software Support
Custom calibration standards and software integration services ensure compatibility with user platforms and data systems.
atmospheric visibility sensor manufacturer and supplier
Yantai Sensor is a professional atmospheric visibility sensor manufacturer and supplier, providing advanced visibility monitoring solutions for meteorology, transportation, aviation, maritime, and environmental monitoring applications. Our visibility sensor delivers accurate real-time measurement of visibility conditions in fog, haze, rain, snow, and dust environments, ensuring reliable data for road safety, airport operations, and intelligent weather monitoring systems, including an atmospheric visibility sensor for highway safety systems and fog detection visibility sensors for traffic monitoring applications.
Our IoT-based atmospheric visibility sensor supports RS485, Modbus RTU, 4G, LoRa, WiFi, and cloud-based remote monitoring, enabling stable data transmission and seamless system integration. Designed with weatherproof protection, anti-icing structure, low power consumption, and corrosion resistance, the sensor also supports flexible OEM/ODM customization services to meet diverse project and industry requirements. Contacto us to get the best atmospheric visibility sensor solution and professional technical support for your project.
