XF603 Best Outdoor Air Quality Sensor For Smart City & Traffic (Xf603) | Pm2.5 Pm10 Noise Light
The XF603 best outdoor air quality sensor is a compact six-parameter weather station, integrating atmospheric temperature, humidity, light intensity, noise, PM2.5, and PM10 measurements into a single unit. Achieved through a highly integrated design, it enables 24/7 continuous online monitoring of outdoor meteorological parameters. All six parameters are output to the user simultaneously via a digital communication interface.
- Ambient Temperature: -40-85℃
- Operating Temperature: -40℃-80℃
- Power Supply: DC9-24V
- Relative Humidity: 0-100%RH
- Illuminance: 0-100KLux
- Noise: 30-130dB
- PM2.5: 0-500ug/m³ (Extensible 1000ug/m³)
Price: $160-$172
บทนำ
The XF603 best outdoor air quality sensor is a compact, six-element integrated environmental monitoring device that integrates atmospheric temperature, humidity, light intensity, noise, PM2.5, and PM10 monitoring functions. It features easy installation, stable operation, and low maintenance costs, making it suitable for applications such as smart cities, micro-environments, gridded environments, ecological parks, scenic areas, road environments, and long-term air quality monitoring.

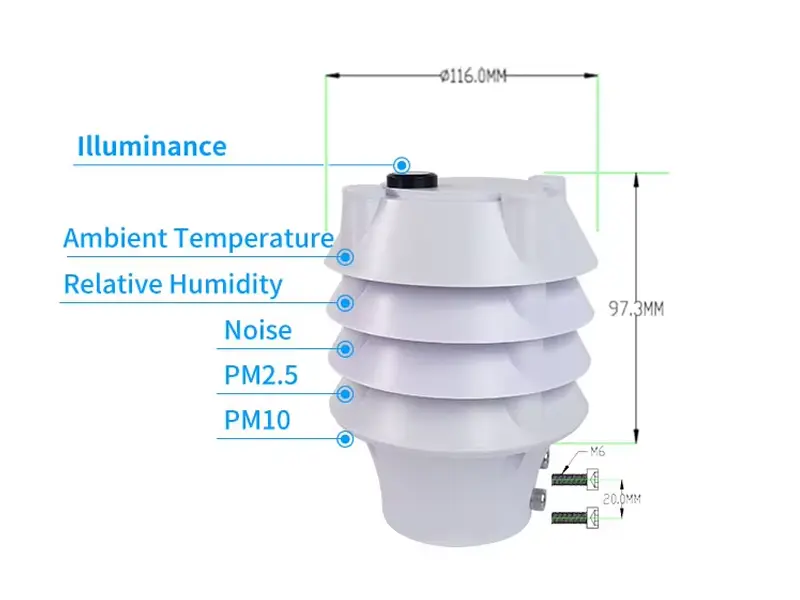

Best Outdoor Air Quality Sensor Structure
- Multi-Parameter Integrated Sensor Module
Integrates six sensing units for temperature, humidity, light intensity, noise, PM2.5, and PM10 to enable simultaneous monitoring. - Highly Integrated Protective Housing

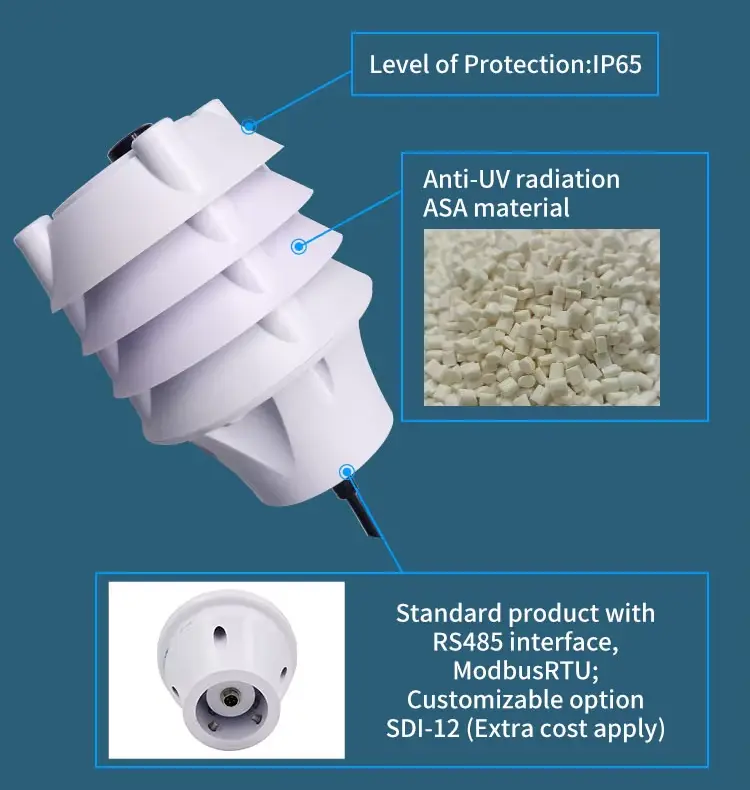

Features an outdoor-rated design with dustproof, rainproof, and UV-resistant capabilities for long-term outdoor operation. - Air Sampling and Ventilation
Optimized airflow channel design enhances accuracy and response speed for particulate matter and environmental parameter measurements. - Digital Signal Processing Unit (MCU)
Performs real-time processing, compensation, and calibration of collected data to enhance measurement stability and reliability. - Communication interface module
Supports digital communication interfaces like RS485, enabling simultaneous output of six monitoring parameters for seamless system integration. - Power Management System
Provides a stable power supply with overvoltage protection, supporting continuous long-term operation. - Mounting Structure
Features standard bracket or clamp mounting designs for quick deployment on flange fixation or a bending plate fixing method.

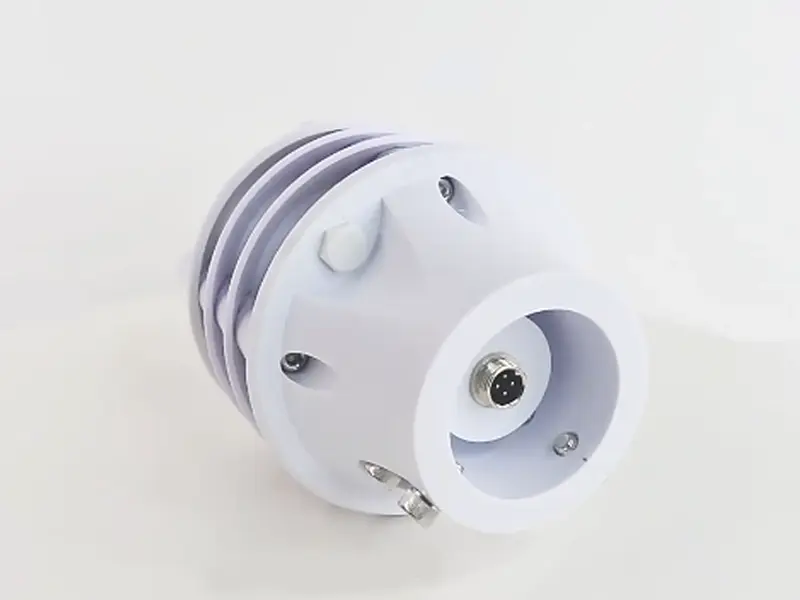

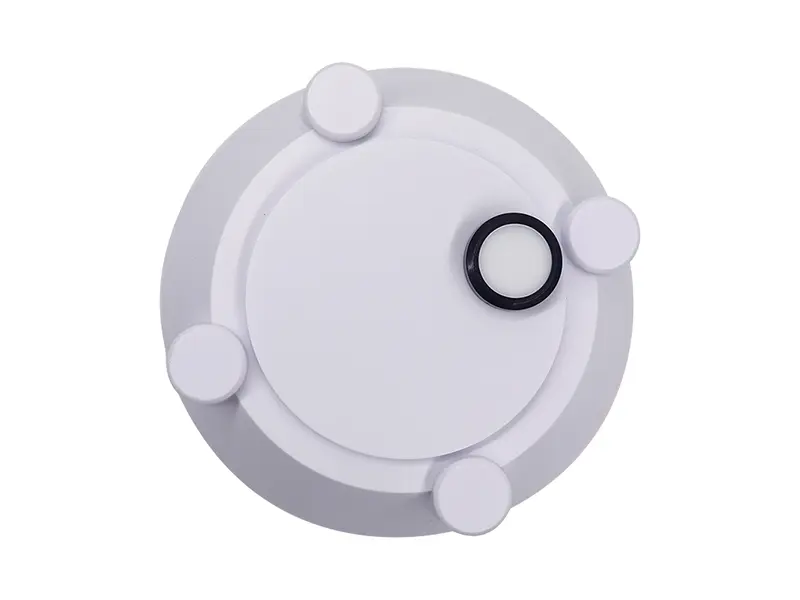

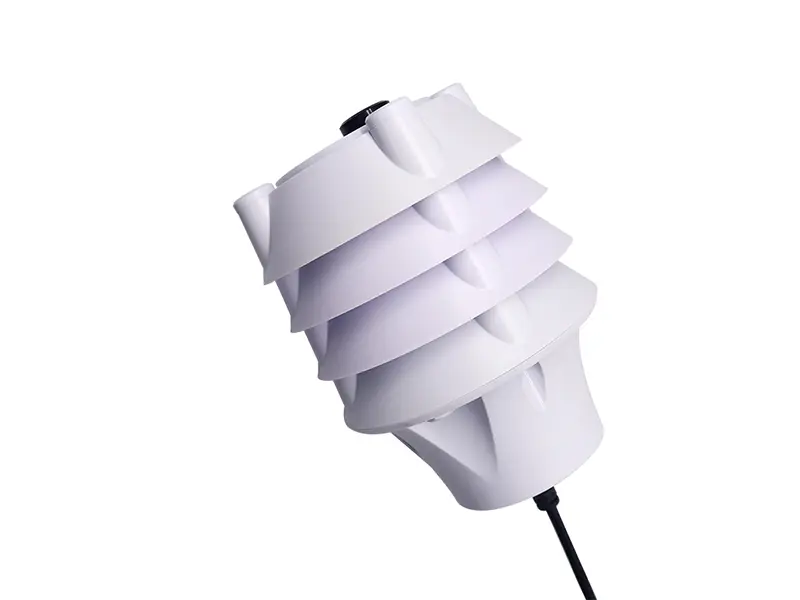

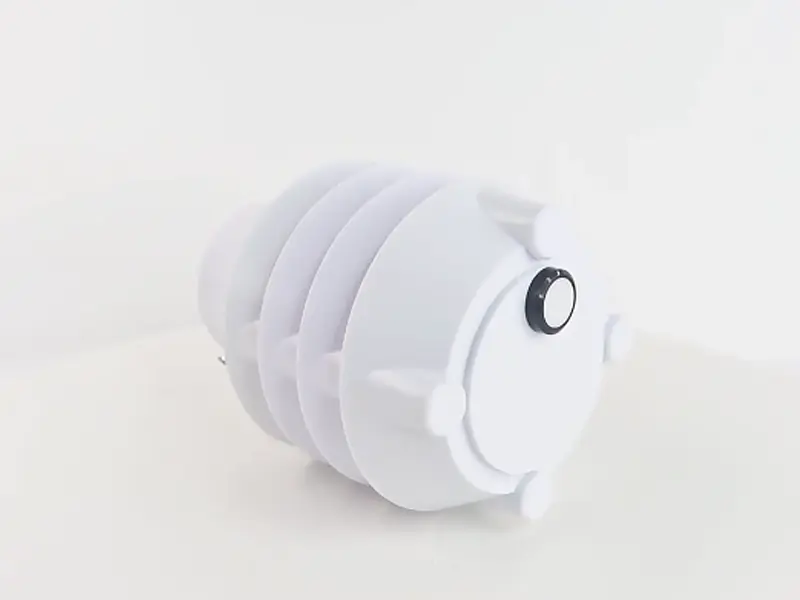

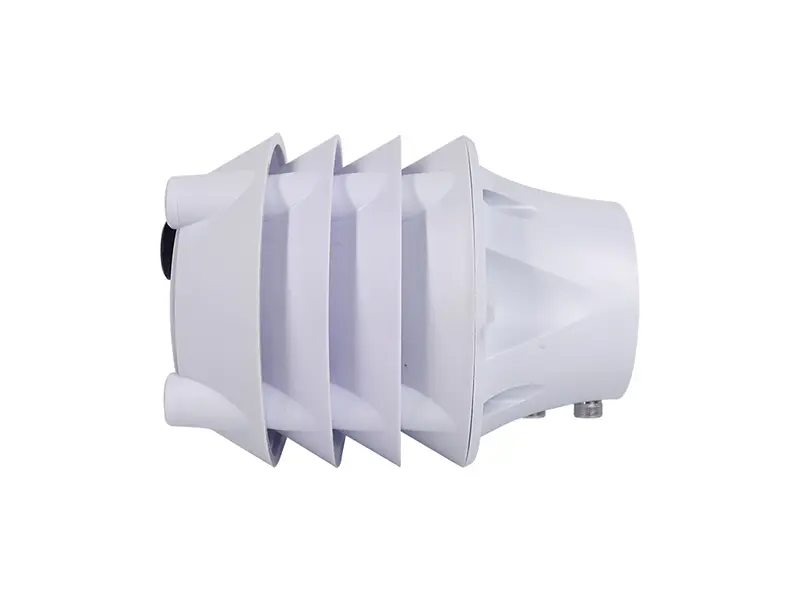

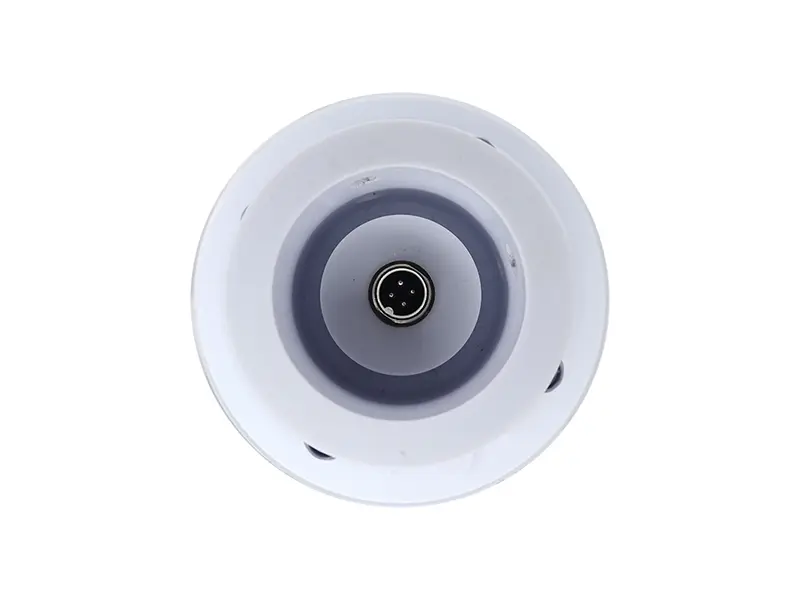

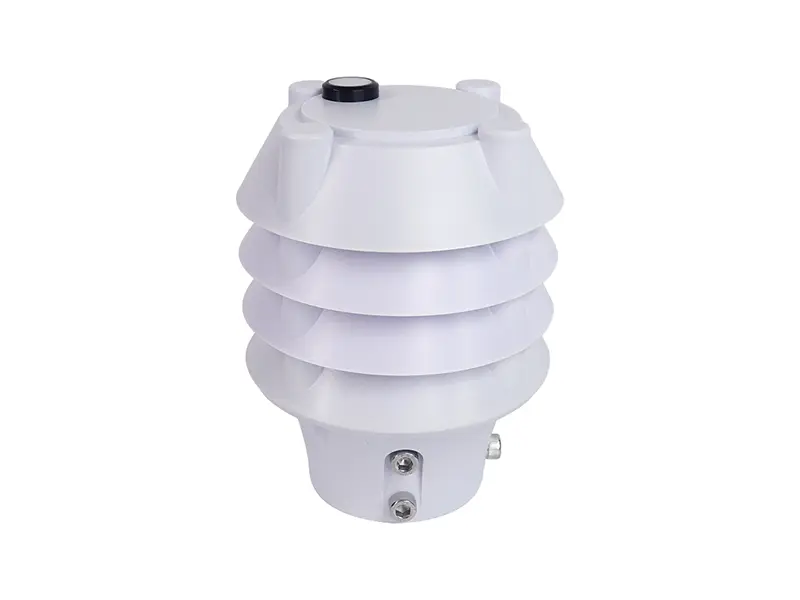

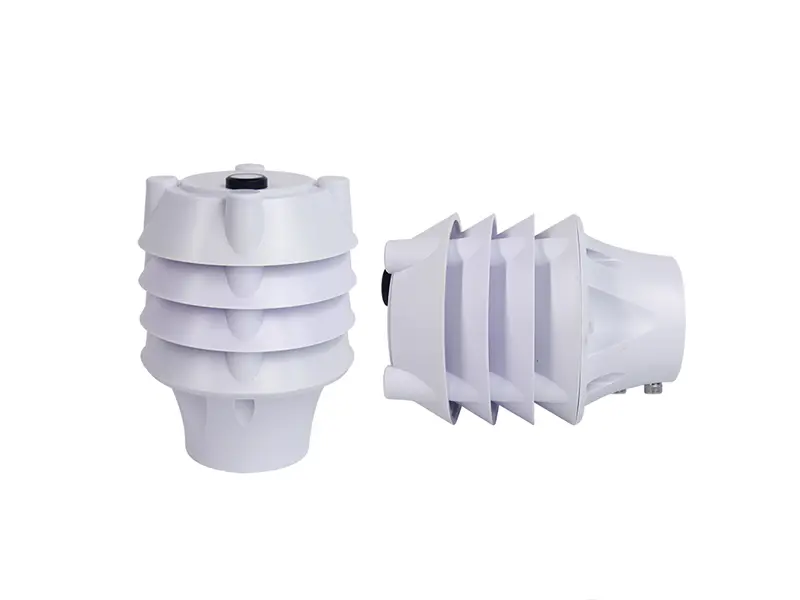

รายละเอียดแสดง
The XF603 best outdoor air quality sensor features a highly integrated structure. Every detail—from housing protection and sensor layout to interfaces and mounting design—has been optimized. This allows you to gain a more intuitive understanding of the product’s structural design, manufacturing quality, and key functional components.
Installation Method

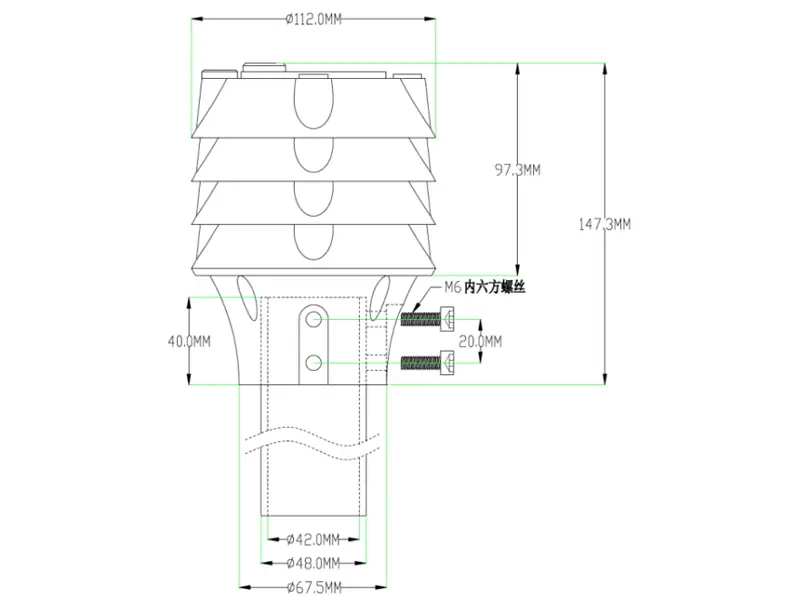

sizes
ข้อมูลจำเพาะ
The XF603 is the best outdoor air quality sensor for smart city & traffic (Xf603) | Pm2.5 Pm10 noise light. This section covers environmental monitoring elements and equipment operating specifications, including temperature, humidity, illuminance, noise, PM2.5, and PM10 monitoring performance, as well as operating conditions, output methods, and installation configurations. This information helps you quickly understand the overall performance and application adaptability of the product.
พารามิเตอร์
| พารามิเตอร์ | ช่วงการวัด | ความถูกต้อง | การแก้ไขปัญหา | ความถี่ในการสุ่มตัวอย่าง |
| Ambient Temperature | -40-85℃ | ±0.3℃@25℃ | 0.01℃ | 1HZ |
| Relative Humidity | 0-100%RH | ±3%RH(10%-80%RH, No Condensation) | 0.01%RH | 1HZ |
| Illuminance | 0-100KLux | ±3% Or 1%F.S | 10Lux | 1HZ |
| Noise | 30-130dB | ±1.5dB | 0.1dB | 1HZ |
| PM2.5 | 0-500ug/m³（Extensible 1000ug/m³） | ±（10+10%）ug/m³ | 1ug/m³ | 1HZ |
| PM10 | 0-500ug/m³（Extensible 1000ug/m³） | ±（10+10%）ug/m³ | 1ug/m³ | 1HZ |
| อุณหภูมิการทำงาน | -40℃—80℃ | |||
| ผลลัพธ์ | Standard product with RS485 interface, ModbusRTU;Customizable option SDI-12(Extra costs apply) | |||
| ความถี่สูงสุดของเอาต์พุต | โหมดพาสซีฟ: 1/วินาที โหมดแอคทีฟ: 1/นาที | |||
| แหล่งจ่ายไฟ | DC9-24V | |||
| ระดับการคุ้มครอง | IP65 | |||
| การติดตั้งอย่างสุภาพ | ผลิตภัณฑ์มาตรฐานเป็นแบบปลอกยึด (ตัวเลือก: ชิ้นส่วนที่เข้าชุดกัน มีค่าใช้จ่ายเพิ่มเติม โปรดดูที่อุปกรณ์เสริมและชิ้นส่วน) | |||

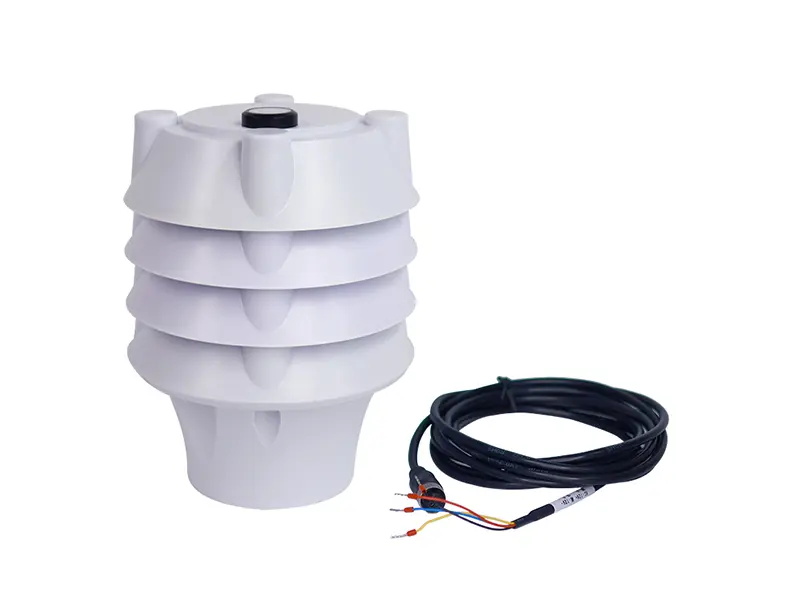

| สายเคเบิล | สายเคเบิลยาว 3 เมตร (ตัวเลือก: สายเคเบิลยาว 10 เมตร มีให้บริการเพิ่มเติมโดยมีค่าใช้จ่ายเพิ่มเติม) | |||
| Remarks | 1. This Sensor with Ambient Temperature and Relative Humidity integrated, is installed in a three-layer outdoor radiation shield. The radiation shield adopts PC+ fiber special proportion confrontation, and the interior is sprayed with thermal insulation layer, to minimize the solar radiation influence. 2. Noise: Select high precision electric pickup, A weighting method to measure environmental noise. It is small in volume, high precision and high sensitivity. 3. Particulate Matter PM2.5/PM10 : Based on the principle of laser scattering, the number of suspended particles with different particle sizes in the air in a unit volume can be continuously collected and calculated, which is the distribution of particle concentration. 4. Illuminance: Select high specification 400-1100nm wavelength range optical elements with filter to achieve measurement. | |||
Features best outdoor air quality monitor
Compact and integrated design
Compact structure, highly integrated, multi-parameter monitoring integrated into one, saving installation space.
Highly integrated structure
The integrated design of multiple sensing modules reduces dependence on external devices and makes the system more stable and reliable.
Modular design, no moving parts
Reduce mechanical losses, improve long-term operational stability and service life, and facilitate maintenance.
Easy to install
Supports rapid deployment and standardized installation methods to reduce on-site construction time.
Heat shield
Optimize heat dissipation and insulation performance to improve data accuracy in complex outdoor environments.
Support parameter expansion
Monitoring elements can be expanded according to project needs, and one-year quality assurance services are provided.
Best Outdoor Air Quality Sensor Applications
The XF603 best outdoor air quality sensor features a multi-parameter integrated design and stable outdoor performance, widely applied in urban environmental monitoring and smart management scenarios. Whether for micro-environmental monitoring, grid-based air quality management, or park/scenic area and smart city development, it enables data collection and monitoring. Below are applications for the XF603:
Micro ambient air quality monitoring
Suitable for real-time monitoring of urban blocks, communities, and small-scale environments.
Grid air quality monitoring system
Support refined urban distribution and achieve precise management of regional environmental data.
Ecological Parks and Green Space
Used for environmental quality and comfort assessment in parks and green areas.
Scenic area environmental monitoring
Real-time monitoring of air quality and environmental noise levels in tourist attractions.
Comfort monitoring of offices and public spaces
Provide environmental data reference for parks, commercial areas, and public areas.
Smart City/Smart Light Pole Environmental Monitoring
Can be integrated into smart light pole systems to realize an urban IoT environment perception and data collection
custom Best Outdoor Air Quality Sensor
To meet diverse project scenarios and monitoring requirements, the Best Outdoor Air Quality Sensor supports flexible customization solutions. It can be tailored to specific application environments, monitoring parameters, and system integration needs, delivering more precise and efficient environmental monitoring solutions.
Customization Options
- Customizable Monitoring Parameters
Supports expansion of gas parameters, meteorological elements, or specialized environmental monitoring indicators. - Customizable Communication Methods
Offers multiple data transmission options including RS485, 4G, LoRa, NB-IoT, and Ethernet. - Customizable Power Supply Solutions
Supports DC power supply, solar power supply, or hybrid power systems. - Customizable Structure and Installation Methods
Provides pole-mounted, wall-mounted, or smart pole integration solutions tailored to installation scenarios. - Data Platform and Protocol Customization
Supports integration with third-party platforms, private protocol development, and cloud platform integration. - Environmental Adaptability Customization
Can be reinforced for high-temperature, high-humidity, strong wind/sand, or extreme cold environments.
