compact weather station monitoring system
A weather station monitoring system is an intelligent solution for real-time environmental monitoring, featuring high-precision sensors, wireless data transmission, cloud platform management, and remote alarms. It provides reliable weather data and customized solutions for agriculture, solar power plants, smart cities, transportation, and industrial environmental monitoring.
- Temperature Range: -40℃ ~ +80℃
- Communication Method: RS485 / 4G / WiFi / LoRa Wireless Transmission
- Power Supply: Solar Panel + Rechargeable Battery
- Protection Level: IP65 / IP66
- Data Storage: ≥100,000 Records
- Operating Environment: -40℃ ~ +70℃
Price: $1680-$1710
مقدمة
Microclimate conditions are highly unpredictable, and it is virtually impossible to analyze their fluctuations through manual means. Therefore, it is essential to utilize new technologies to monitor weather conditions in real time, enabling the implementation of appropriate measures to prevent or resolve incidents.

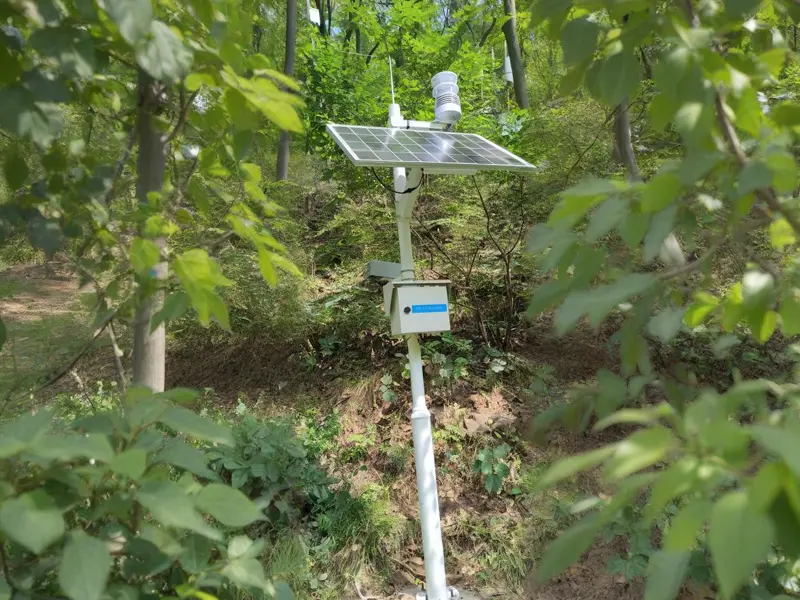

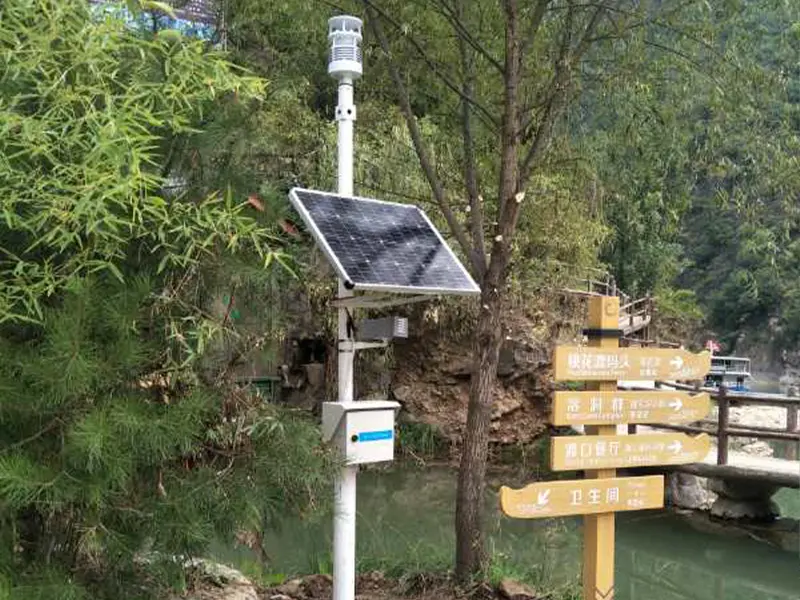

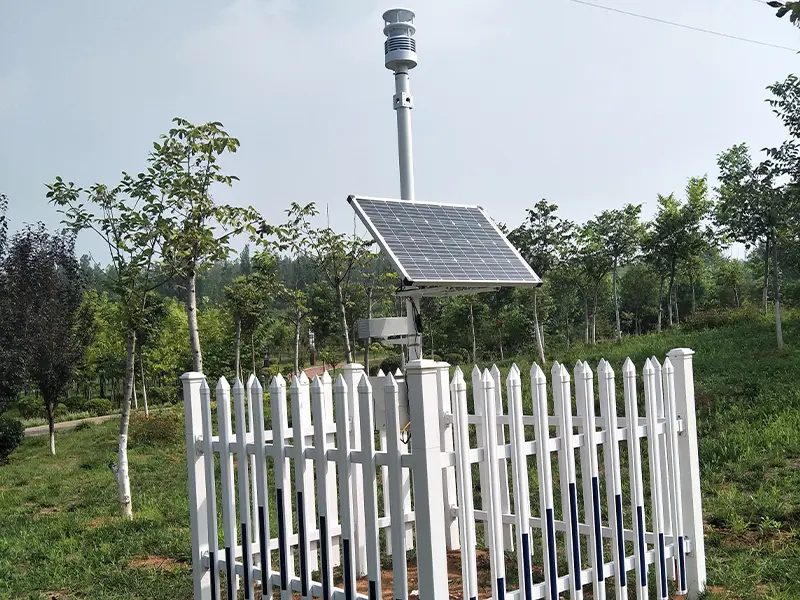

The weather station monitoring system consists of meteorological sensors (weather stations), microcomputer-based data loggers, a power supply system, all-weather protective enclosures, and an environmental monitoring cloud platform. It enables round-the-clock on-site monitoring of more than a dozen meteorological parameters, including wind speed, wind direction, rainfall, air temperature, air humidity, light intensity, soil temperature, soil moisture, evaporation, and atmospheric pressure.
Structure weather station monitoring system
- Meteorological Sensors
Measures temperature, humidity, wind speed, wind direction, rainfall, atmospheric pressure, solar radiation, and other environmental parameters. - Data Logger
Collects, stores, and processes sensor data with high accuracy and stability. - Wireless Communication Module
Supports 4G, GPRS, LoRa, WiFi, RS485, or Ethernet for real-time remote data transmission. - Power Supply System
Includes solar panels, rechargeable batteries, and power management modules for continuous outdoor operation. - Mounting Bracket & Protective Enclosure
Corrosion-resistant structure designed for harsh outdoor environments and long-term monitoring. - Cloud Monitoring Platform
Provides real-time data display, historical data analysis, remote management, and alarm notifications via PC or mobile devices. - Display & Alarm System

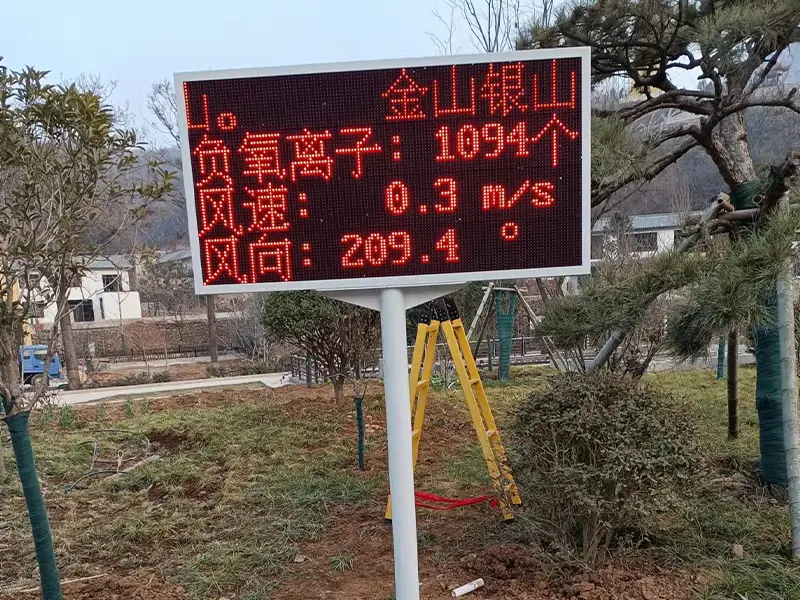

Optional LED display screens, sound/light alarms, and weather warning functions for intelligent monitoring applications.
Technical Principles
The core of a wireless weather station system lies in its sensor technology. Different types of sensors are responsible for capturing different meteorological parameters, such as:
- Temperature Sensors
These sensors use thermistors or thermocouples to convert temperature changes into electrical signals. - Humidity Sensors
These sensors measure the water vapor content in the air and output corresponding humidity values. - Wind Speed and Direction Sensor
Determines wind speed and direction based on the rotation speed of anemometer cups or propellers, as well as the orientation of a wind vane.
The raw data collected by these sensors undergoes preliminary processing by a data logger, then is transmitted via wireless communication modules (such as GPRS, 4G, LoRa, etc.) to a remote server or cloud platform for further data analysis, storage, and display.
عرض التفاصيل

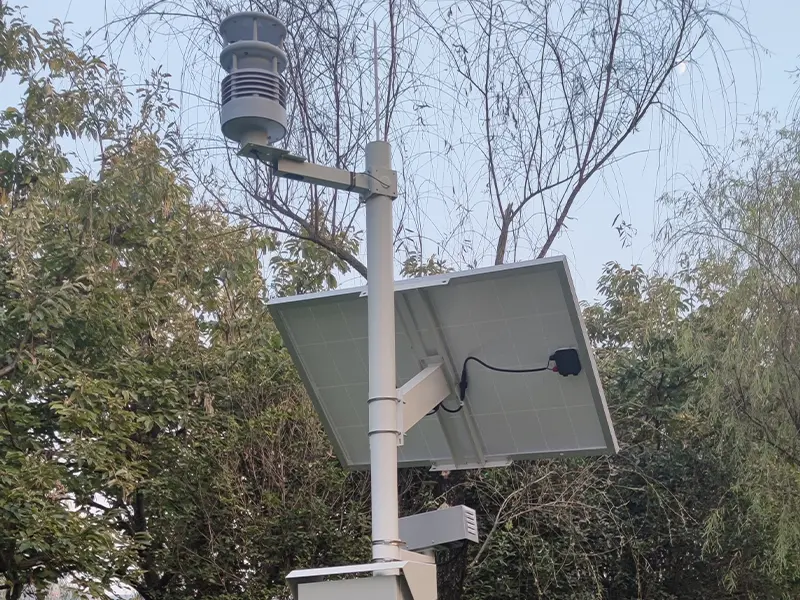

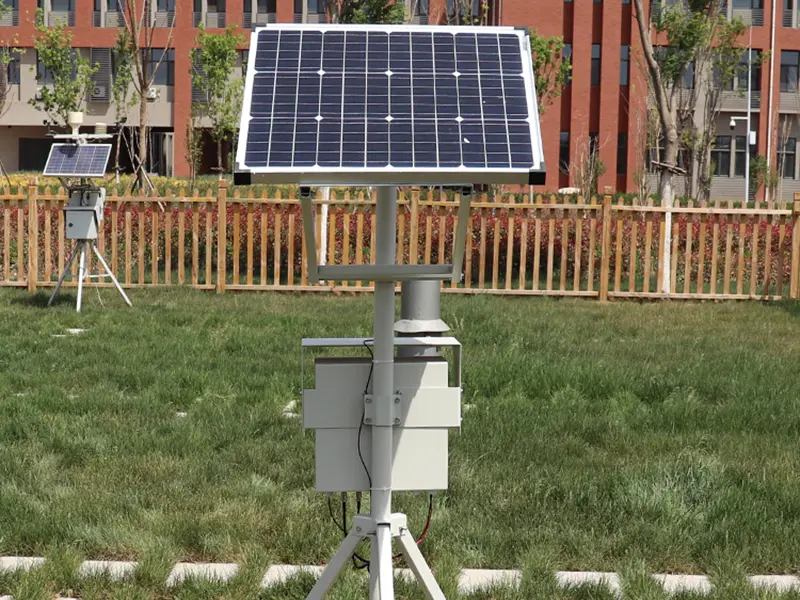

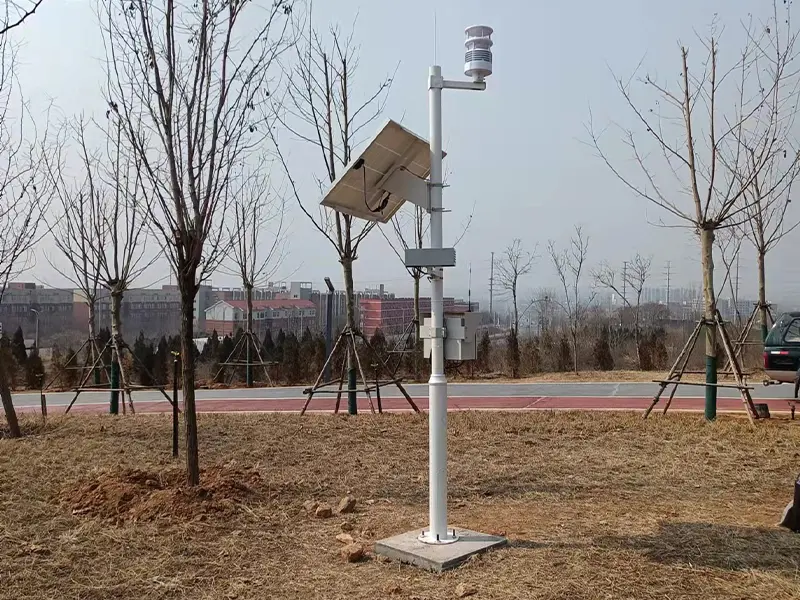

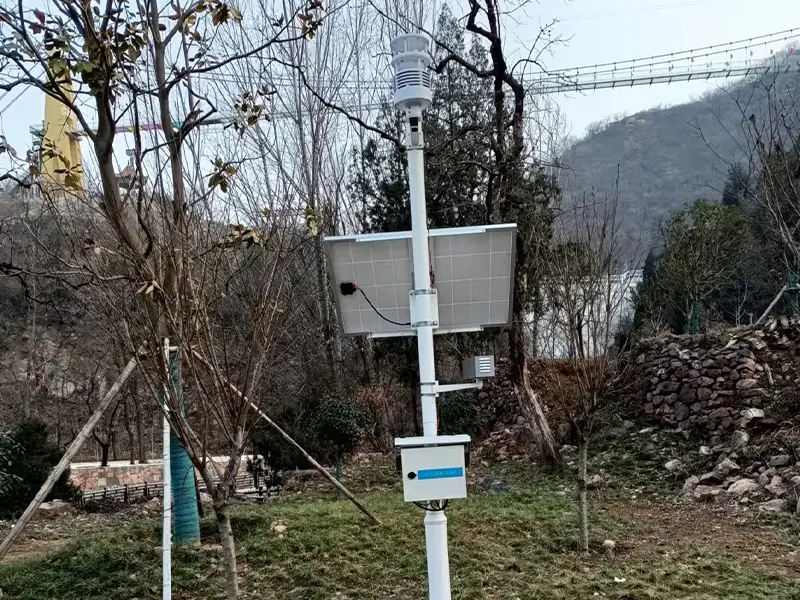

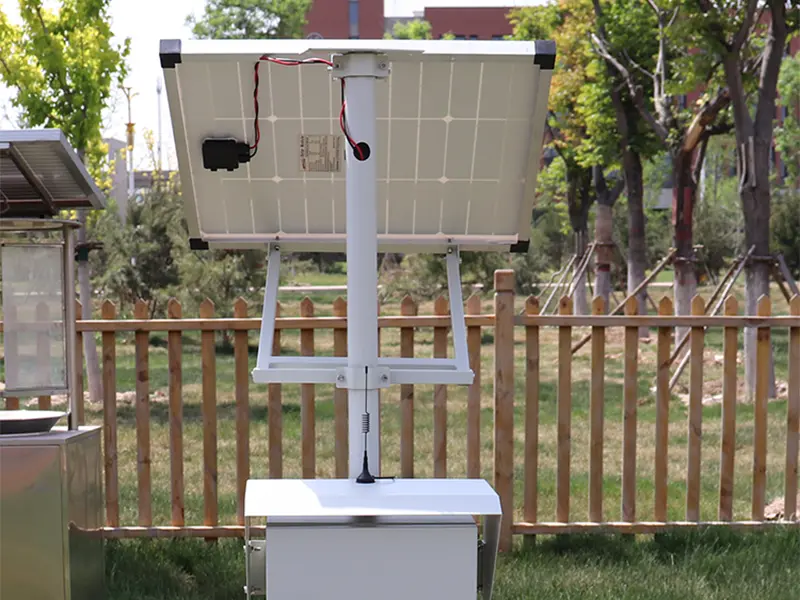

Real-time weather monitoring system: Meticulously crafted down to the finest details, from the sensor probes to the protective housing and wireless transmission modules, every component has undergone rigorous testing to ensure stable operation in harsh environments. Below is a detailed overview of the weather station monitoring system:
المواصفات
The weather station monitoring system can monitor air temperature and humidity, wind speed and direction, soil temperature, moisture, EC, pH, nitrogen, phosphorus, and potassium, as well as noise, air quality, atmospheric pressure, light intensity, rain and snow, UV radiation, evaporation, total radiation, negative oxygen ions, CO, O3, NO₂, SO₂, H₂S, O₂, CO₂, NH₃, TVOC, tipping-bucket rain gauges, and many other meteorological parameters.
المعلمات
| المعلمة | المواصفات |
|---|---|
| Monitoring Parameters | Temperature, Humidity, Wind Speed, Wind Direction, Rainfall, Pressure, Solar Radiation |
| Temperature Range | -40℃ ~ +80℃ |
| نطاق الرطوبة | 0 ~ 100% RH |
| Wind Speed Range | 0 ~ 60m/s |
| Wind Direction Range | 0 ~ 360° |
| Rainfall Resolution | 0.2mm |
| الضغط الجوي | 300~1100hPa |
| Data Storage | ≥ 100,000 Records |
| Communication Method | RS485 / 4G / GPRS / WiFi / LoRa |
| مزود الطاقة | Solar Panel + Rechargeable Battery |
| Operating Environment | -40℃ ~ +70℃ |
| مستوى الحماية | IP65 / IP66 |
| Mounting Method | Pole Mounting |
| Data Upload Interval | 1~60 Minutes Adjustable |
| Cloud Platform | PC & Mobile Remote Monitoring |
| Alarm Function | SMS / Email / Sound-Light Alarm |
| المواد | Corrosion-Resistant Aluminum Alloy |
| Application Areas | Agriculture, Solar Plant, Smart City, Traffic, Environmental Monitoring |
Features weather monitoring system
Wireless Data Transmission
Supports remote communication methods such as 4G, Wi-Fi, and LoRa.
Solar-Powered
Low-power design, suitable for long-term unattended outdoor operation.
Smart Alarms
Automatically triggers SMS or audible/visual alarms during abnormal weather conditions.
Cloud Platform Management
Supports remote viewing and data analysis via PC and mobile devices.
Modular Design
Flexibly expandable to monitor a wide range of meteorological parameters.
Easy Installation
Simple structure, high deployment efficiency, and low maintenance costs.
Applications weather station monitoring system
Weather station monitoring systems are widely deployed across sectors such as agriculture, photovoltaics, electric power, transportation, environmental protection, and smart cities. These systems enable real-time monitoring of meteorological environmental changes, facilitating data acquisition, remote transmission, intelligent analysis, and early warning management. Characterized by high precision, exceptional stability, and all-weather operational capabilities, the system provides reliable meteorological monitoring solutions for a diverse range of industries.
مراقبة الأرصاد الجوية الزراعية
Provides farmers with accurate weather forecasts, soil temperature and humidity data, and farmland environmental monitoring data.
Traffic Safety Management
Monitors road visibility, wind speed, precipitation, and road surface conditions to ensure traffic safety on highways, bridges, and in tunnels.
PV Power Plant Monitoring
Monitor solar radiation, module temperature, and environmental parameters to enhance photovoltaic power generation efficiency and operational safety.
Smart City Development
Provides real-time environmental data for urban weather alerts, public safety, ecological management, and intelligent management systems.
Water Conservation and Flood Control
Monitors rainfall, water levels, and climate change to provide a basis for flood prevention, disaster mitigation, and water resource management.

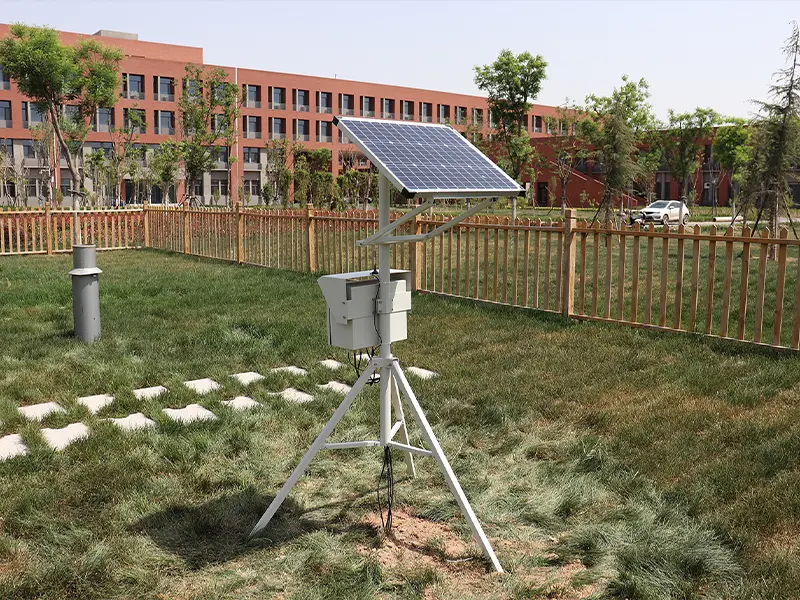

Campus and Research
Widely used in university teaching, scientific research experiments, and meteorological data analysis to meet research and monitoring needs.
weather station monitoring system custom
Weather station monitoring system supports flexible customization according to different application environments and project requirements. It can be tailored in terms of sensor configuration, communication methods, power supply, structural design, and data platforms, ensuring high adaptability for agriculture, solar power plants, smart cities, transportation, and environmental monitoring projects.
خيارات التخصيص
- Sensor Configuration: You can configure a combination of various sensors, including temperature and humidity, wind speed and direction, rainfall, atmospheric pressure, and radiation, according to your needs.
- Communication Methods: Supports multiple data transmission methods, including 4G, Wi-Fi, LoRa, GPRS, and RS485.
- Power Supply: Choose from mains power, solar power, or hybrid power supply systems to suit different scenarios.
- Structure and Installation: Supports pole-mounted, wall-mounted, and integrated structural designs to accommodate various installation environments.
- Data Platform: Integrates with cloud platforms, API interfaces, or local systems to enable data visualization and management.
- Alert System: Supports configurable alert methods including SMS, email, and audible/visual alarms.
- Protection Design: Customizable protection ratings (IP65/IP66/IP67) to withstand harsh outdoor environments.
- Industry Solutions: Provides specialized meteorological monitoring solutions for industries such as agriculture, solar power, electricity, and transportation.
weather station monitoring system manufacturer and supplier
Yantai Sensor is a professional weather station monitoring system manufacturer and supplier, providing advanced environmental monitoring solutions for smart agriculture, solar energy, transportation, and industrial applications. Our weather monitoring system integrates high-precision measurement of temperature, humidity, wind speed, wind direction, rainfall, atmospheric pressure, and solar radiation, delivering reliable and accurate data for various environmental monitoring needs. The system is widely used as an all-in-one weather monitoring station and supports real-time data acquisition for intelligent decision-making.
Our real-time weather monitoring system features multiple communication options such as RS485, 4G, LoRa, and IoT connectivity, ensuring stable remote data transmission and cloud-based monitoring. With strong R&D capability and strict quality control, we provide durable solutions designed for harsh outdoor environments. In addition, we offer customized weather monitoring solutions through OEM/ODM services, allowing flexible configuration to meet different project requirements and application scenarios.
