Question 1

1. What is a radiation sensor used for?

Accepted Answer

What is a radiation sensor used for?

A radiation sensor is used to measure solar irradiance, ultraviolet, or other radiation levels in real time. In photovoltaic systems, it provides W/m² data for performance monitoring, energy yield calculation, and system optimization. It is also widely used in weather stations, environmental studies, and scientific research.

Question 2

2. What types of radiation sensors are commonly used in PV systems?

Accepted Answer

What types of radiation sensors are commonly used in PV systems?

The most common types include pyranometers for global solar irradiance, reference cells for module-based measurement, and UV sensors for environmental monitoring. Each type serves a different purpose, but all help ensure accurate solar resource assessment and reliable PV performance evaluation.

Question 3

3. What is the difference between a pyranometer and a reference cell?

Accepted Answer

What is the difference between a pyranometer and a reference cell?

A pyranometer measures solar irradiance based on thermal response, while a reference cell measures irradiance using a photovoltaic response similar to PV modules. Pyranometers are more stable for environmental monitoring, while reference cells are better for real-time PV performance ratio (PR) tracking.

Question 4

4. How accurate are radiation sensors?

Accepted Answer

How accurate are radiation sensors?

Accuracy depends on sensor type and class. High-quality pyranometers typically offer ±2% to ±5% accuracy, while reference cells may vary slightly due to temperature effects. In most PV applications, this level of accuracy is sufficient for reliable performance monitoring and energy yield estimation.

Question 5

5. Where should a radiation sensor be installed?

Accepted Answer

Where should a radiation sensor be installed?

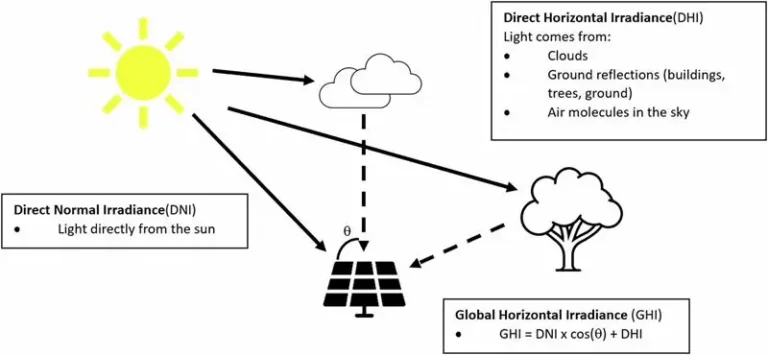

Radiation sensors should be installed in an open area without shading from buildings, trees, or PV panels. For solar monitoring, they are usually mounted at the same tilt angle as the PV array or horizontally for global horizontal irradiance (GHI) measurement.

Question 6

6. Do radiation sensors need maintenance?

Accepted Answer

Do radiation sensors need maintenance?

Yes, but maintenance is relatively simple. Regular cleaning of the sensor dome or surface is required to avoid dust or dirt affecting readings. In outdoor PV environments, we recommend inspection every 1–3 months depending on site conditions and pollution levels.

Question 7

7. What affects radiation sensor measurement accuracy?

Accepted Answer

What affects radiation sensor measurement accuracy?

Key factors include dust accumulation, improper installation angle, temperature drift, and shading effects. Calibration quality also plays a major role. Even a small installation error can lead to noticeable deviations in long-term solar energy data analysis.

Question 8

8. How do I choose the right radiation sensor for my project?

Accepted Answer

How do I choose the right radiation sensor for my project?

You should consider your application, required accuracy, environmental conditions, and budget. For PV systems, pyranometers or reference cells are most commonly used. If you are unsure, consulting with an experienced supplier or engineer helps avoid over- or under-specification.
