XF600L Compact Smart Weather Station
XF600L compact smart weather station integrates six meteorological parameters, Ambient Temperature, Relative Humidity, Atmospheric Pressure, Wind Speed (Third Generation), Wind Direction (Third Generation) and Optical Rainfall, in one structure. It realizes 24 hours continuous online monitoring of outdoor meteorological parameters, and output these data to users through digital communication interface all at once.
- Ambient Temperature: -40-85℃
- Power supply: DC 9-24V
- Relative Humidity: 0-100%RH
- Wind Speed(Third Generation): 0-40m/s
- Atmospheric Pressure: 500-1100hPa
- Optical Rainfall: 0-200mm/h
- Operating Temperature: -30℃-70℃
Price: $345-$372
Introduction
XF600L compact smart weather station is an integrated meteorological monitoring solution designed for reliable and continuous outdoor environmental measurement. It combines six key weather parameters — ambient temperature, relative humidity, atmospheric pressure, third-generation wind speed, third-generation wind direction, and optical rainfall — into a single compact unit. Compact design, easy installation, and maintenance-free operation, the XF600L is ideal for smart agriculture, environmental monitoring, photovoltaic power plants, transportation safety, and scientific research applications.

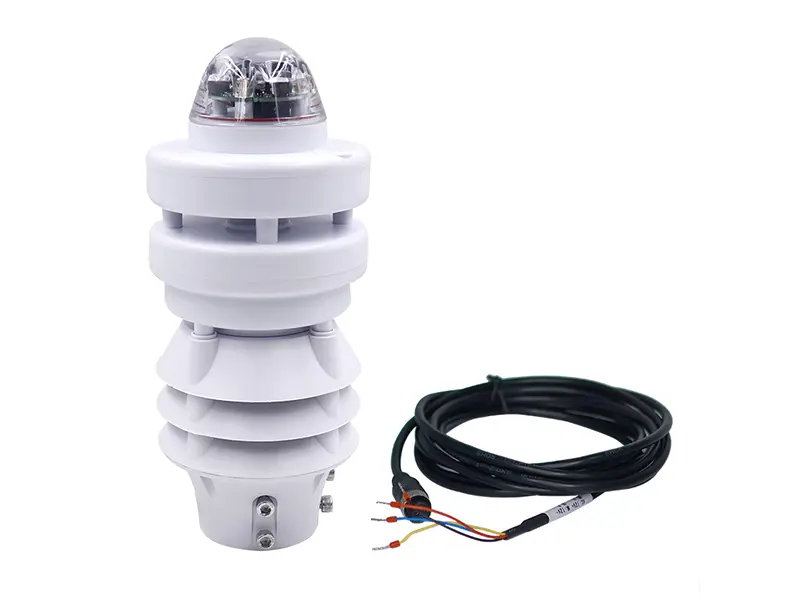

Structure Compact Smart Weather Station
- Integrated Temperature, Humidity, and Pressure Sensor Module: Integrates three sensor types—ambient temperature, relative humidity, and atmospheric pressure—encapsulated within a three-layer outdoor radiation shield. The shield features a specialized PC + fiber composite material with an internal thermal coating to minimize solar radiation interference with measurements.
- Ultrasonic Wind Speed and Direction Module: Utilizes third-generation ultrasonic wind measurement technology with no mechanical moving parts, enabling precise measurement of wind direction (0-360°) and wind speed (0-40 m/s). This module serves as the core wind measurement component of the device.
- Optical Rainfall Monitoring Module: Detects raindrops via optical sensing principles with no moving parts, monitoring rainfall from 0-200mm/h. This serves as the core measurement unit for rainfall parameters within the six-element system.
- Protective Housing Structure: ASA UV-resistant material body with specially engineered thermal insulation shield. Overall IP65 protection rating.
- Circuit Control Structure: Integrated data acquisition and processing circuitry with low-power design, compatible with a wide voltage supply.
- Communication Interface Structure: Standard RS485 (Modbus RTU) interface, supports custom SDI-12/CAN Port, etc.
- Physical Installation Structure: 116×260mm compact integrated design, M6 mounting points, compatible with multiple mounting methods
- Connection Accessories Structure: Standard 3-meter sleeve cable, customizable extended cables, flange/bend plate mounting brackets
Détails Afficher
XF600L compact smart weather station Product details and structural design with actual photos provide a more intuitive understanding of its integrated structure, sensor layout, compact appearance, and industrial-grade manufacturing process. Below are the details of the XF600L compact smart weather station:
Installation Method
Spécifications
Core technical specifications and performance metrics of the XF600L compact smart weather station cover key information including monitored parameters, measurement accuracy, operating environment, and communication methods. Through clear data comparisons, you can intuitively understand the device’s stability and reliability in long-term outdoor monitoring.
For customized configurations or project solution support, please contact us for professional advice and a prompt quote.
Paramètres
| Paramètres | Plage de mesure | Précision | Résolution | Fréquence d'échantillonnage |
| Température ambiante | -40-85℃ | ±0.3℃@25℃ | 0.01℃ | 1HZ |
| Humidité relative | 0-100%RH | ±3%RH(10%-80%RH, No Condensation) | 0,01%RH | 1HZ |
| Wind Speed(Third Generation) | 0-40m/s | ±(0.5+0.05V)M/S | 0,01m/s | 10HZ |
| Wind Direction(Third Generation) | 0-359.9° | ±5°(Wind Speed ＜10M/S) | 0.1° | 10HZ |
| Pression atmosphérique | 500-1100hPa | ±0.5hPa(25℃,950-1100hPa) | 0,1hPa | 1HZ |
| Optical Rainfall | 0-200mm/h | / | 0.2mm | 1HZ |
| Température de fonctionnement | -30℃-70℃ | |||
| Sortie | Produit standard avec interface RS485, ModbusRTU ; option personnalisable SDI-12 (frais supplémentaires) | |||
| Fréquence de sortie maximale | Mode passif : 1/S Mode actif : 1/min | |||
| Alimentation électrique | DC9-24V | |||
| Niveau de protection | IP65 | |||
| Mode de montage | Le produit standard est un manchon fixe (en option : pièces assorties, frais supplémentaires, voir Accessoires et pièces). | |||
| Tréteaux fixes | En option : support de 1,5 mètre ou de 1,8 mètre (coût supplémentaire) | |||
| Câble | Ligne de câble de 3 mètres (option : ligne de câble de 10 mètres disponible pour un coût supplémentaire) | |||
Features compact smart weather station
Small in size
Compact dimensions for easy deployment in limited spaces
Heat-insulated cover
Special heat-insulated protective cover for stable performance in harsh environments
High integration
Highly integrated design to reduce system complexity and cost
Easy to install
Tool-free installation for quick on-site setup and deployment
Integrated design
All-in-one structure to minimize maintenance requirements
Extended parameters
Expandable sensor ports for additional environmental monitoring
Applications compact smart weather station
The compact smart weather station is suitable for meteorological and environmental monitoring needs in multiple industries and scenarios, and can provide stable, continuous, and high-precision meteorological data support for different application fields.
Surveillance météorologique
Used for conventional meteorological stations and regional meteorological data collection, enabling real-time environmental monitoring and data analysis.

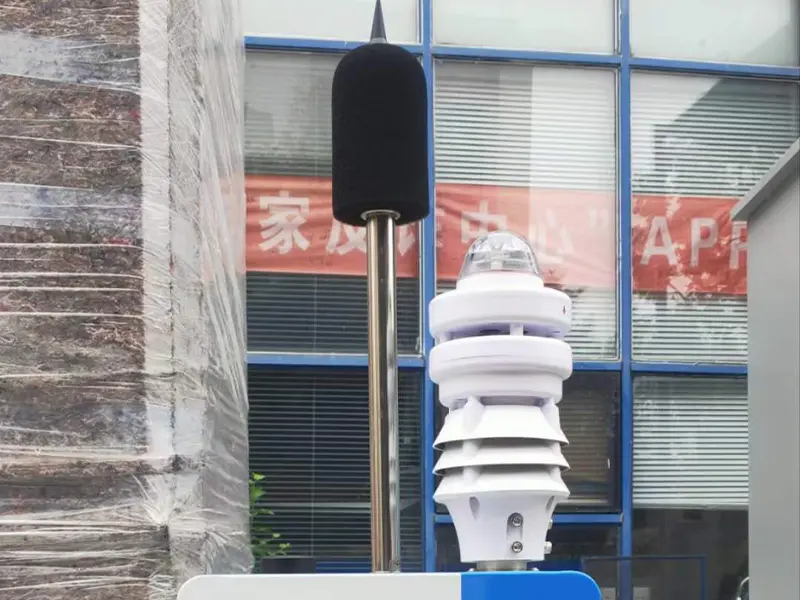

Micro-Environmental Monitoring
Suitable for small-scale environmental monitoring applications in cities, parks, campuses, and industrial parks.
Surveillance de l'environnement à l'aide d'un réseau
Supports multi-point deployment to build high-density monitoring networks, enabling refined environmental data management.
Surveillance météorologique agricole
Provides meteorological data support for smart agriculture, facility farming, and field management, aiding scientific planting decisions.
Transport Surveillance météorologique
Deployed along highways, bridges, and roadways to enhance traffic safety and meteorological warning capabilities.
Photovoltaic Monitoring
Delivers reliable meteorological data for evaluating photovoltaic power plant operations and analyzing power generation efficiency.
custom compact smart weather station
XF600L compact smart weather station To meet diverse project environments and industry application requirements, we offer professional configuration optimization based on customer installation conditions, monitoring parameters, communication methods, and system integration needs. This ensures stable operation and reliable data in real-world applications.
Options de personnalisation
- Communication Protocol Customization: Supports SDI-12, NMEA, ASCII (Vaisala-compatible), CAN Port, and other protocol customizations to adapt to various IoT platforms.
- Function Module Expansion: Supports adding functional modules such as 4G communication, GPS positioning, electronic compass, tilt sensor, and heating/defogging.
- Measurement Parameter Expansion: Beyond the six core parameters, can expand monitoring to include additional environmental parameters to meet diverse scenario requirements.
- Hardware and Protocol Customization: Supports modifying internal register addresses, configuring rainfall accumulation time, and magnetic declination correction.
- Brand and Packaging Customization: Provides OEM/ODM services, supporting custom brand logos, product appearance, and packaging.
- Installation and Cable Customization: Offers custom lengths for communication cables, flanges/bend plates, and other mounting fixtures.
