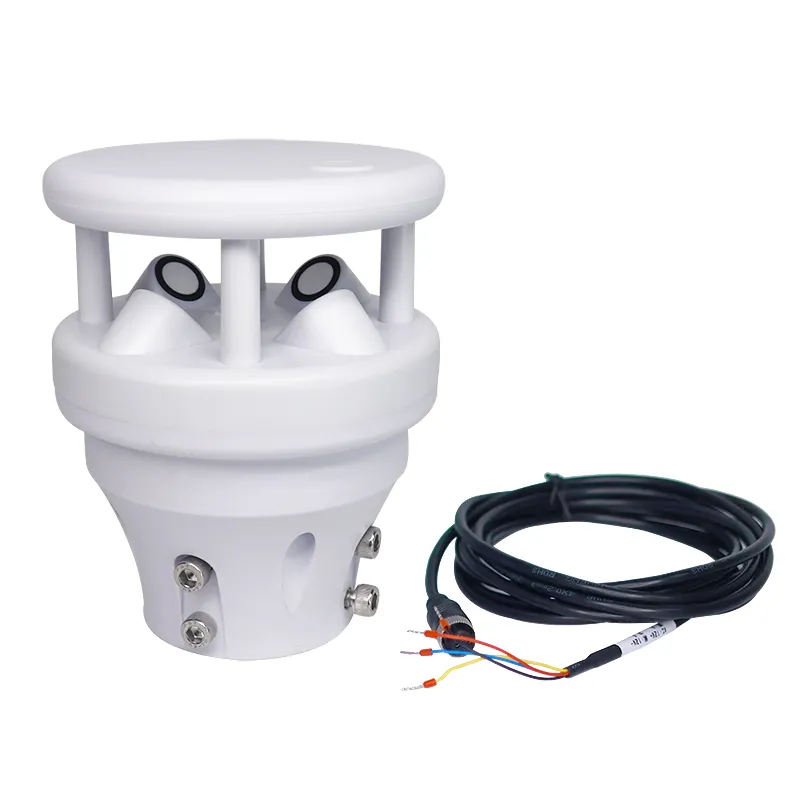

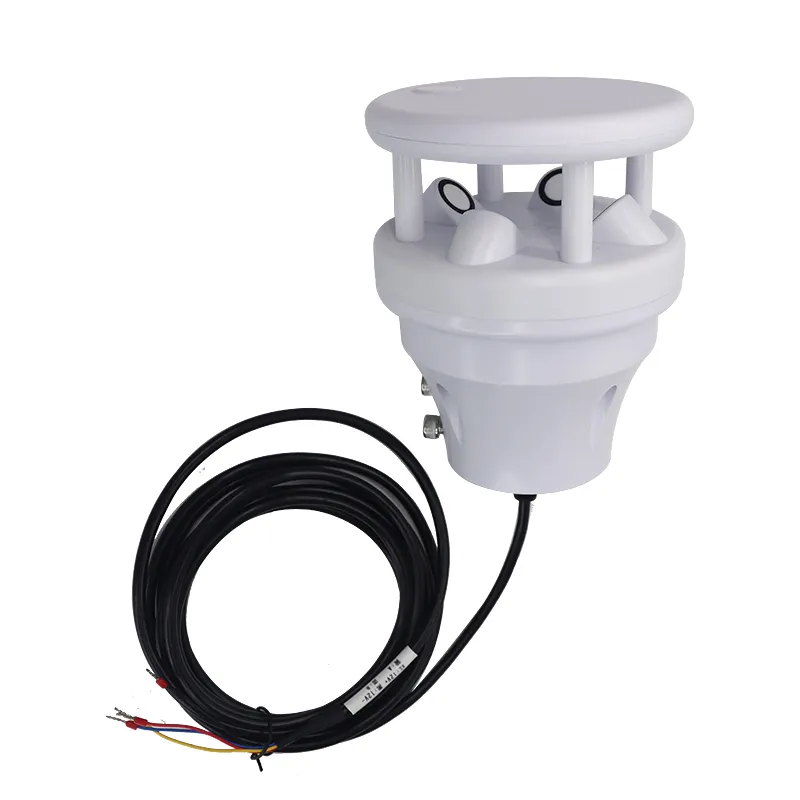

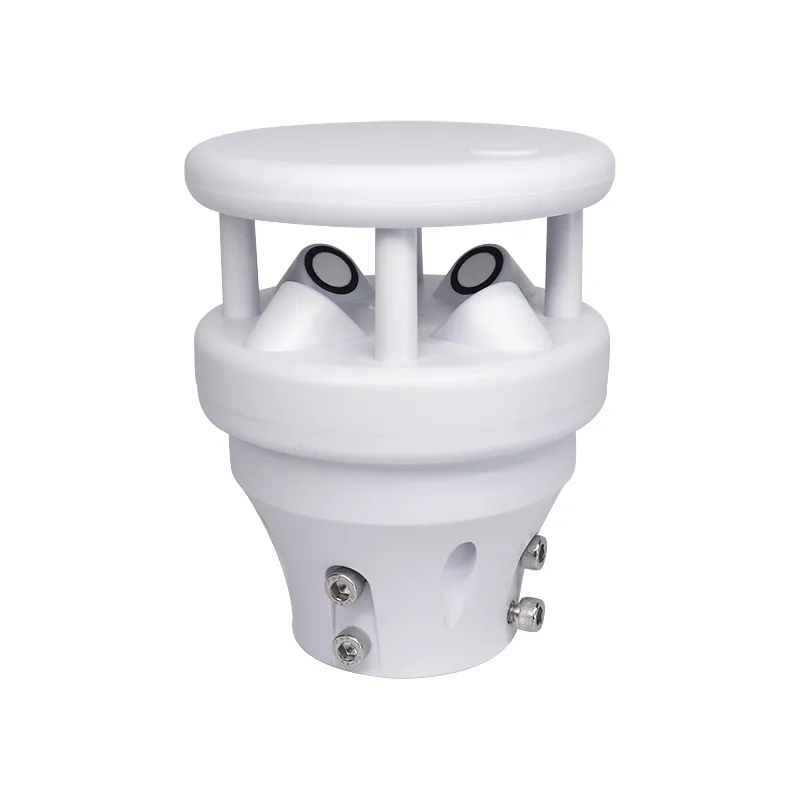

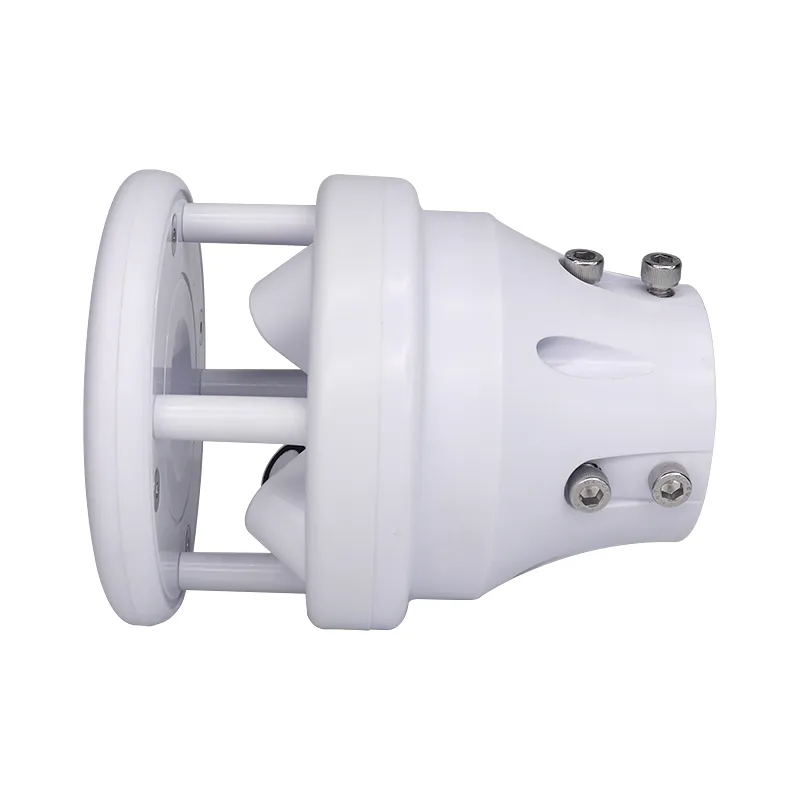

XF200AS Ultrasonic Anemometer
The XF200AS ultrasonic anemometer is an instrument that measures wind speed and direction by utilizing the time difference of ultrasonic waves propagating through the air. Compared to traditional mechanical anemometers, it has significant advantages such as no wear, long lifespan, and fast response speed. It requires no maintenance or on-site calibration and is a stable and reliable wind field monitoring device.
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-40℃–80℃ |
|
Wind Direction |
0–359.9° |
|
Level of Protection |
IP65 |
|
Output |
RS485 interface, ModbusRTU; Customizable option SDI-12 |
|
Maximum Output Frequency |
Passive Mode: 1/S Active Mode: 1/min |
Introduction
The XF200AS Ultrasonic Wind Anemometer is a high-precision wind speed and direction sensor based on ultrasonic measurement principles. It calculates wind speed and direction in real time by detecting variations in the propagation time of ultrasonic waves through air. Featurinan all-electronic structure with no mechanical moving parts, it delivers high reliability, rapid response, and long-term stable measurement performance, making it suitable for continuous operation in outdoor and industrial environments.
XF200AS Ultrasonic Anemometer Structures
- Fully electronic with no mechanical structure, resulting in wear-free and maintenance-free operation.
- Integrated ultrasonic probe layout ensures stable and high-precision measurements.
- Streamlined aerodynamic design reduces turbulence interference.
- Weather-resistant housing material resists UV rays and corrosion, adapting to harsh environments.
- High-protection sealed structure (IP65+) ensures long-term reliable outdoor operation.
- Standardized installation interface allows for quick and easy installation with strong compatibility.

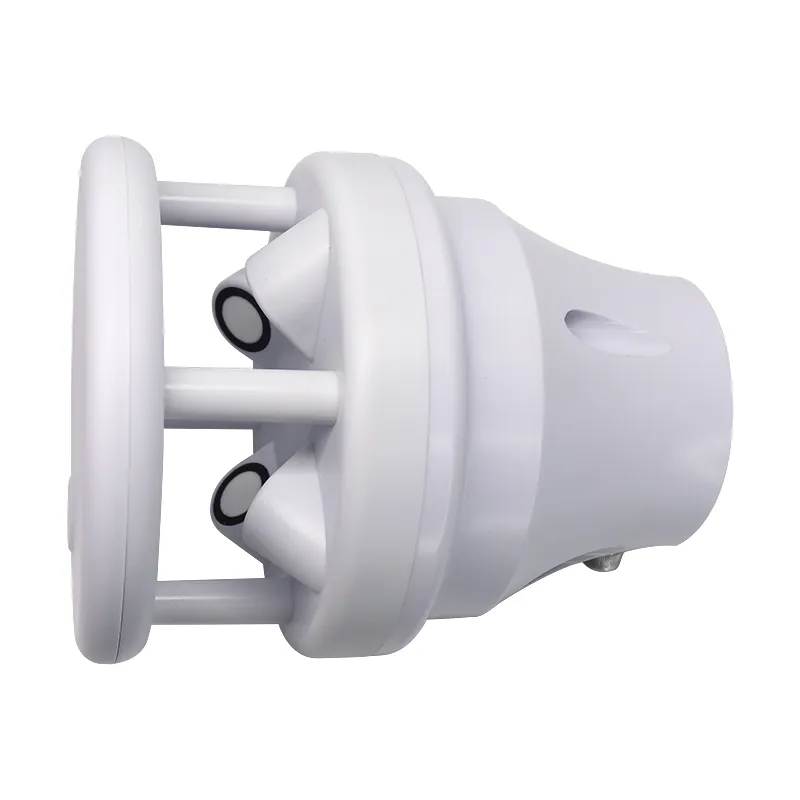

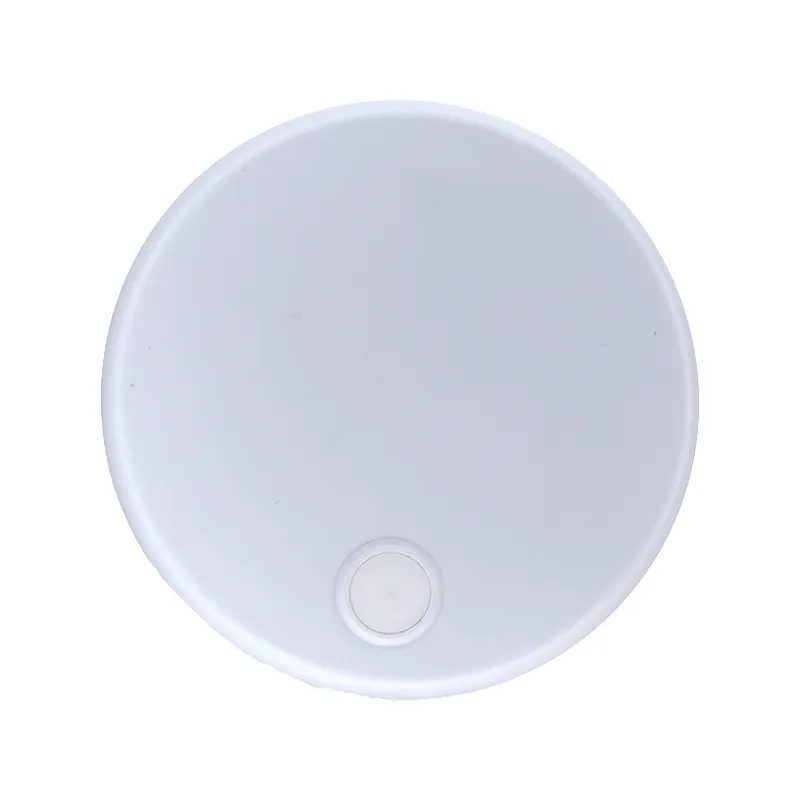

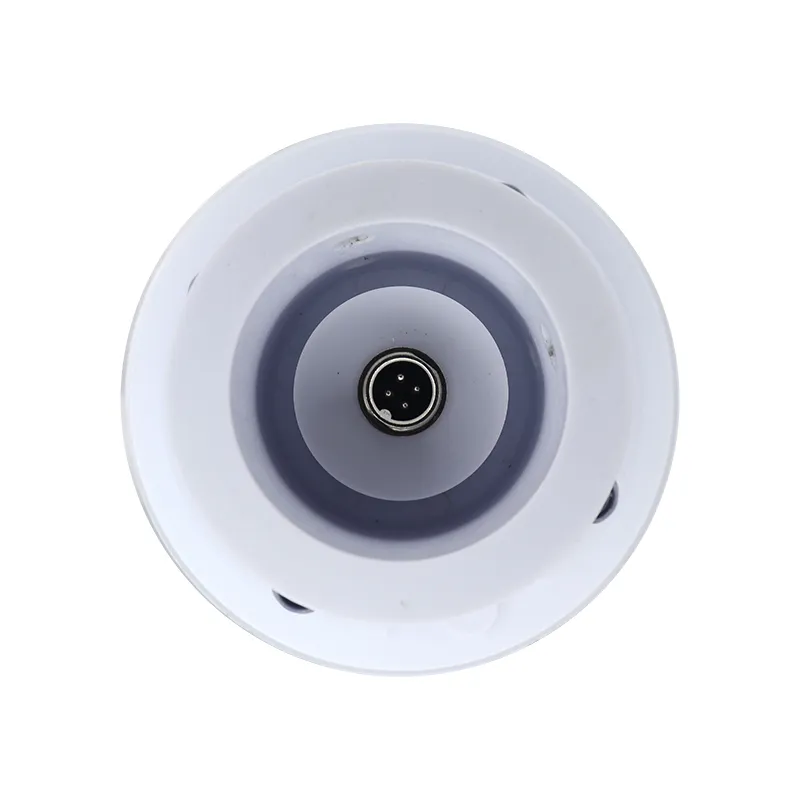

Details Show
Through the following structural details, you can intuitively feel the high standards of quality and professional manufacturing capabilities of the XF200AS in terms of materials, processes, and design.
Specifications
The XF200AS Portable Ultrasonic Anemometer supports flexible customization of multiple parameters, including measurement range, accuracy, resolution, and sampling frequency, providing the most suitable configuration for different application scenarios. The following are standard parameter specifications for your reference:
| Parameterss | Measuring range | Accuracy | Resolution | Sampling frequency |
|---|---|---|---|---|
| Wind Speed | 0-60m/s | ±（0.3+0.03V）m/s；V≤30m/s ±（0.3+0.05V）m/s; V≥30m/s (V stands for standard wind speed in a wind tunnel) | 0.01m/s | 4HZ |
| Wind Direction | 0-359.9° | ±3°（when Wind Speed ＜10m/s） | 0.1° | 4HZ |
| Operating Temperature | -40℃—80℃ | |||
| Output | Standard product with RS485 interface, ModbusRTU; Customizable option SDI-12, NMEA(Extra costs apply) | |||
| Maximum Output Frequency | Passive Mode: 1/S Active Mode: 1/min | |||
| Power Supply | DC9-24V | |||
| Level of Protection | IP65 | |||
| Mounting Manner | Standard Product is sleeve fixed (Optional: matching parts, extra costs apply, see Accessory and Parts) | |||
| Fixed Trestle | Optional: 1.5 meter, or 1.8 meter bracket (extra cost apply) | |||
Features of XF200AS Ultrasonic Anemometer
Fully electronic structure
Fully electronic with no mechanical components, ensuring zero wear and maintenance-free operation.
High-precision measurement
Integrated ultrasonic probe layout delivers stable, high-precision measurements.
Aerodynamic design
Streamlined aerodynamic design minimizes turbulence interference.
Weatherproof protection
Weather-resistant housing material provides UV resistance, corrosion resistance, and harsh environment adaptability.
Long-term reliability
High-protection sealed structure (IP65+) ensures long-term reliable outdoor operation.
Easy installation
Standardized mounting interface enables quick, convenient installation with strong compatibility.
applications of ultrasonic anemometer
The XF200AS Ultrasonic Anemometer is suitable for multiple core applications including meteorological monitoring systems, urban and microenvironment monitoring, power grid and energy equipment monitoring, agriculture and smart farming applications, traffic safety and weather early warning, wind power generation and new energy monitoring. It provides stable and reliable data support for various wind field monitoring needs.
Meteorological Monitoring System
Deployed at national meteorological stations, regional weather stations, and scientific research monitoring points to provide critical meteorological data such as wind speed and direction.

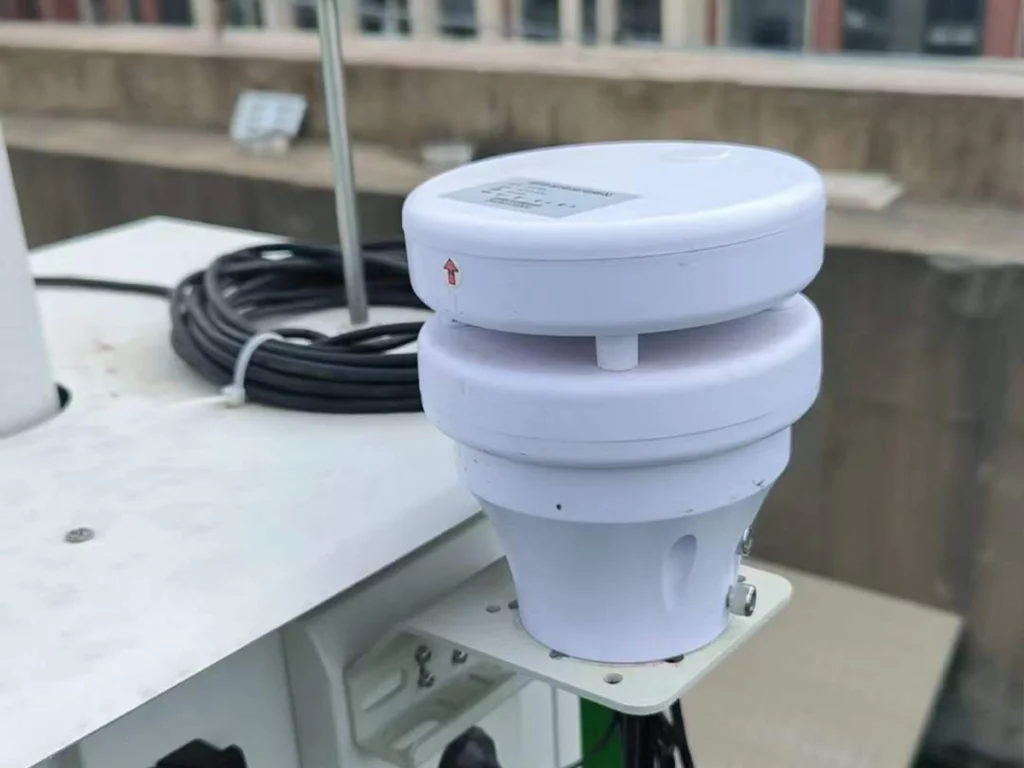

Urban and Microenvironment Monitoring
Conducts localized wind environment monitoring in areas like industrial parks, communities, and campuses to support air quality assessment and environmental management.
Power Grid and Energy Equipment
Provides real-time wind speed and direction monitoring around substations and transmission line towers to support grid safety operations and equipment protection.
Agriculture and Smart Farming Monitoring
Monitors wind field changes in farmlands, greenhouses, and orchards, providing data support for irrigation, fertilization, pest/disease early warning, and planting decisions.
Traffic Safety and Weather Alerts
Deployed on highways, airport runways, port terminals, bridges, and similar areas to monitor high-wind risks and enhance traffic safety alert capabilities.
Wind Power and Renewable Energy Monitoring
Used for wind resource assessment, wind farm operation monitoring, and integrated with environmental monitoring for photovoltaic power plants.

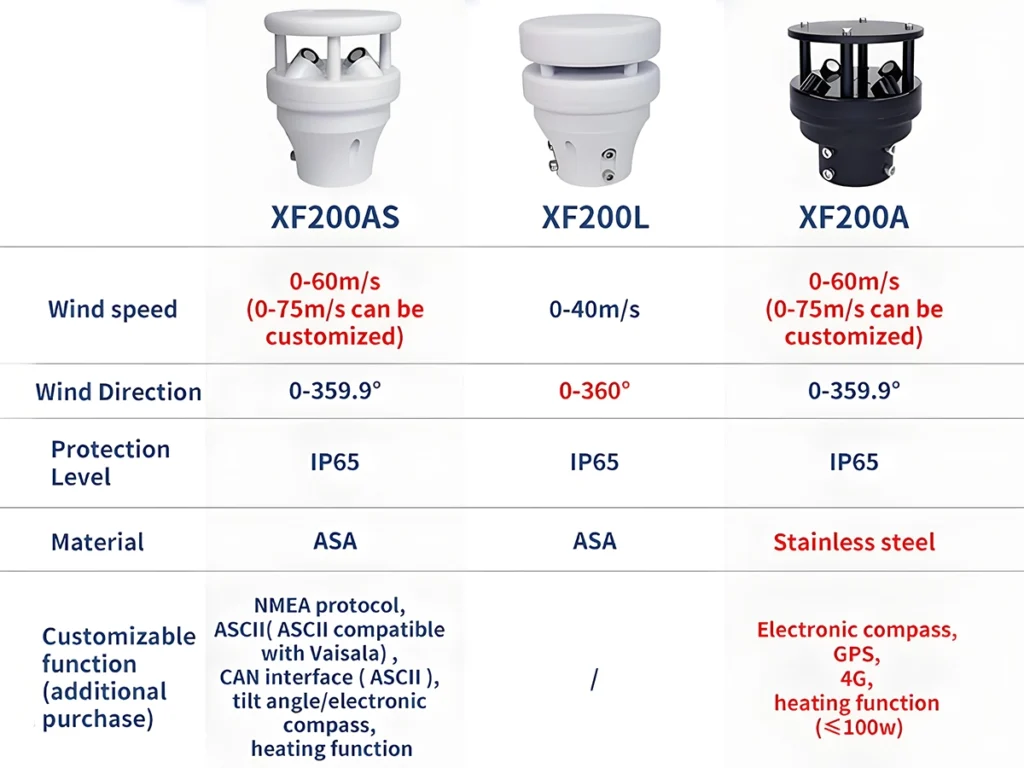

custom XF200AS Ultrasonic Anemomete Sensor
XF200AS Compact Ultrasonic Anemometer offers comprehensive customization services, tailoring solutions and configurations to meet specific application requirements. Customizable features include:
- Measurement Range Customization (wind speed range, wind direction range, etc.)
- Measurement Accuracy and Resolution Customization
- Sampling Frequency and Output Speed Customization
- Communication Interface and Protocol Customization (RS485, Modbus, ASCII, analog signals, etc.)
- Structural material and protection rating customization (salt spray resistance, corrosion resistance, sandstorm resistance, heavy rain resistance)
- Power supply method and power consumption optimization solutions

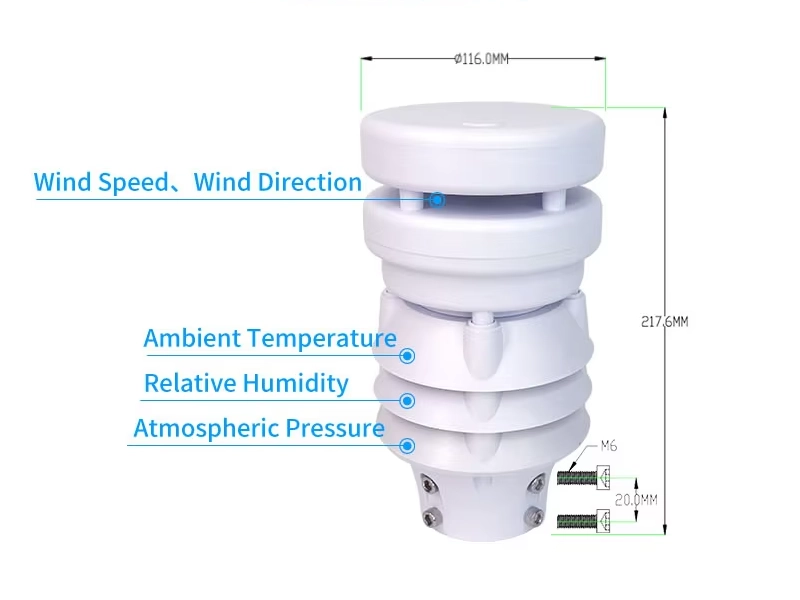

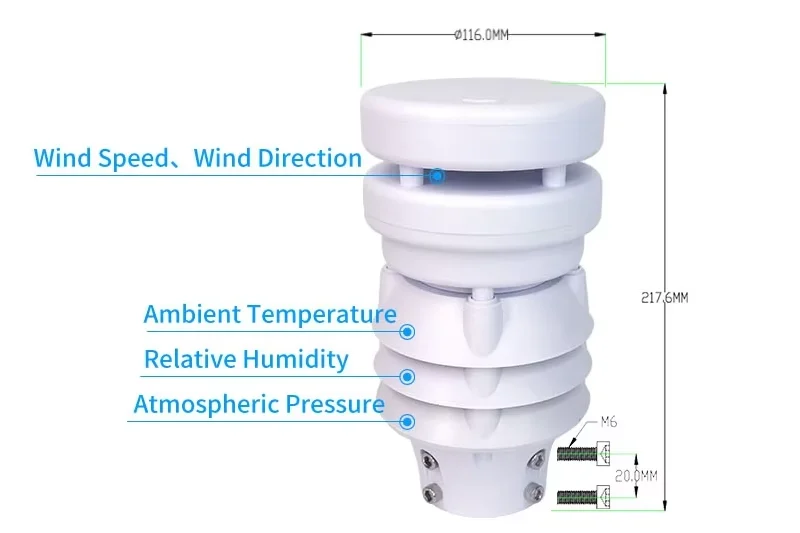

- Multi-parameter expansion integration (optional elements include temperature, humidity, barometric pressure, rainfall, etc.)
- Installation structure and bracket customization (adaptation for different platforms, towers, enclosures)
- Special environment adaptability customization (extreme cold, high winds, marine, desert scenarios, etc.)
China Ultrasonic Anemomete Sensor Manufacturer and Supplier

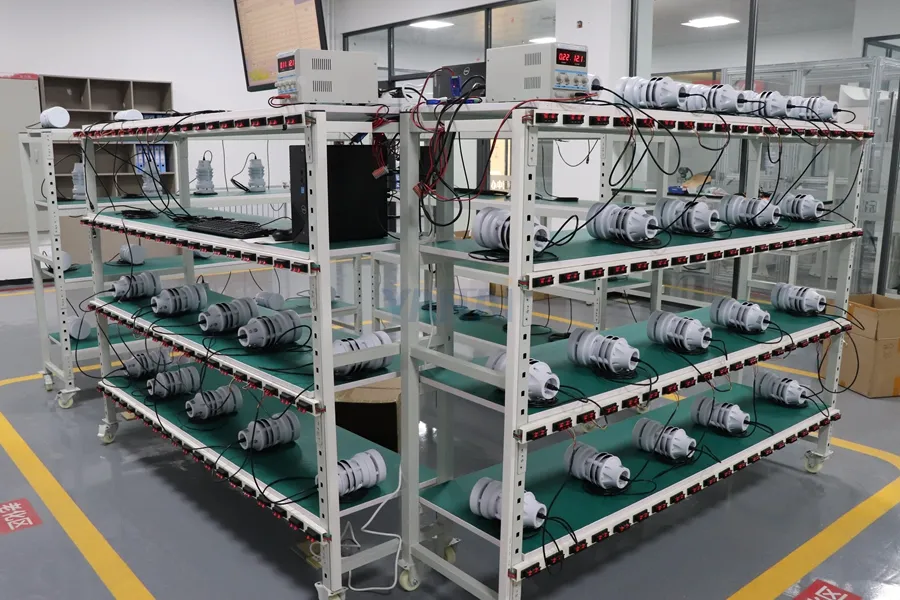

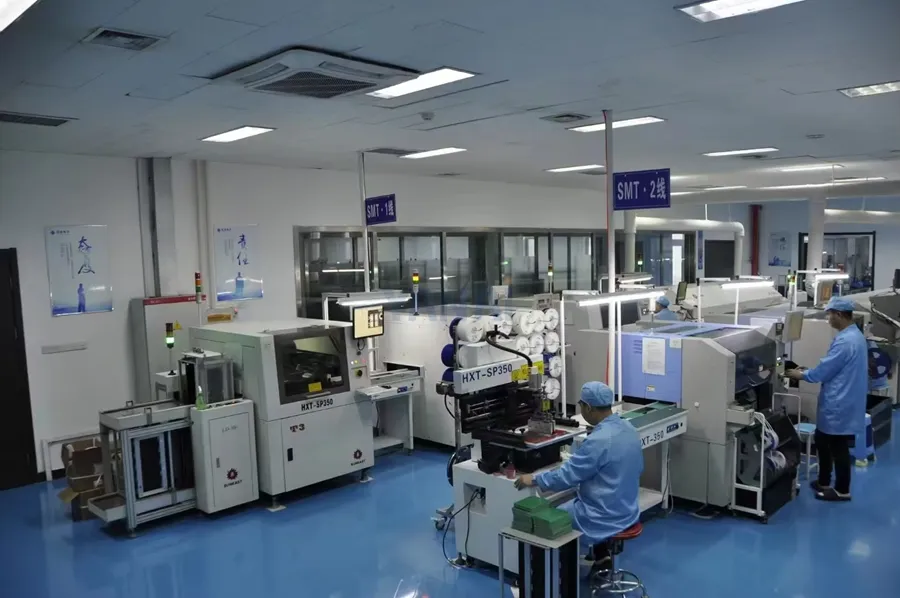

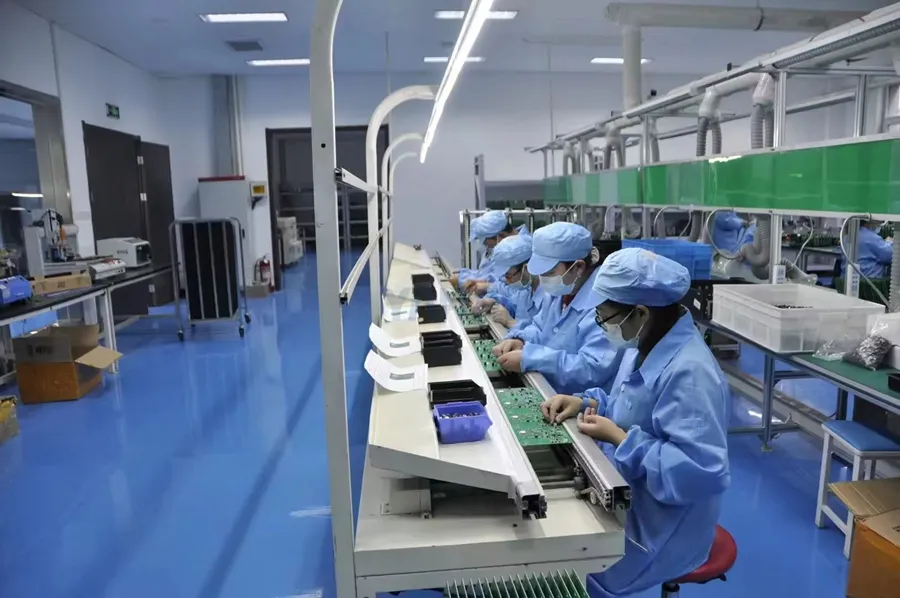

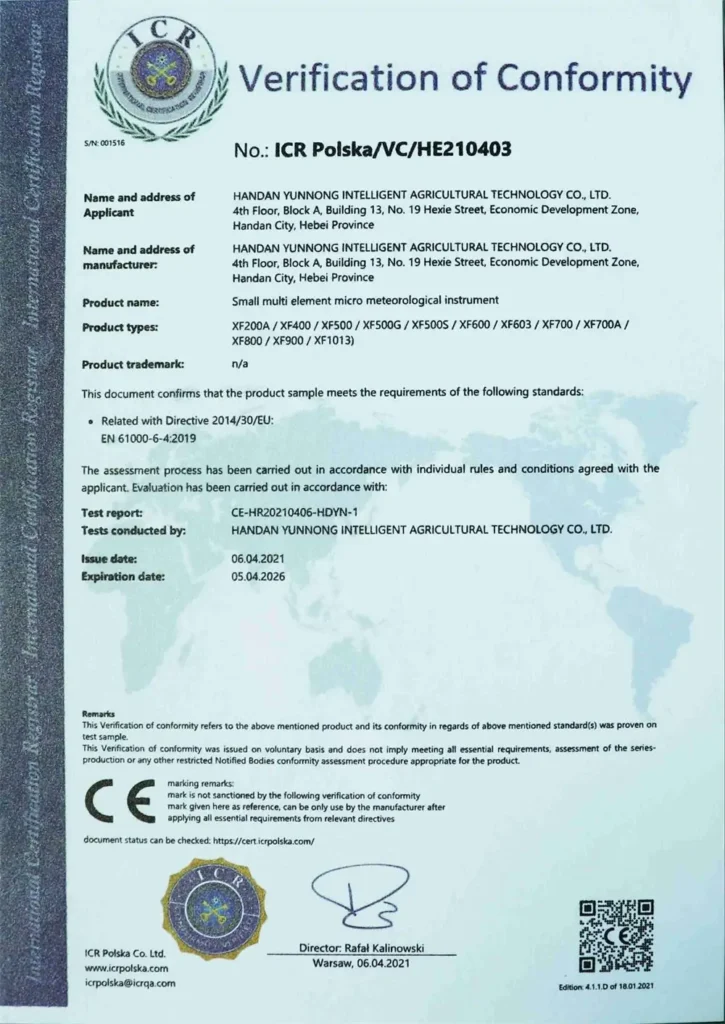

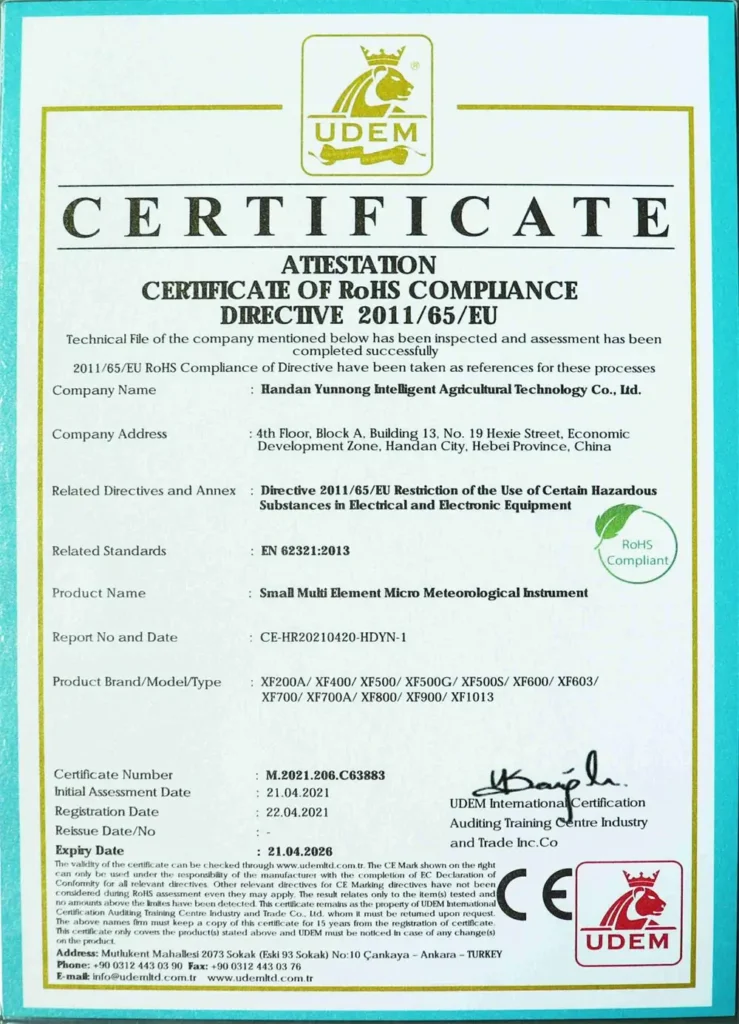

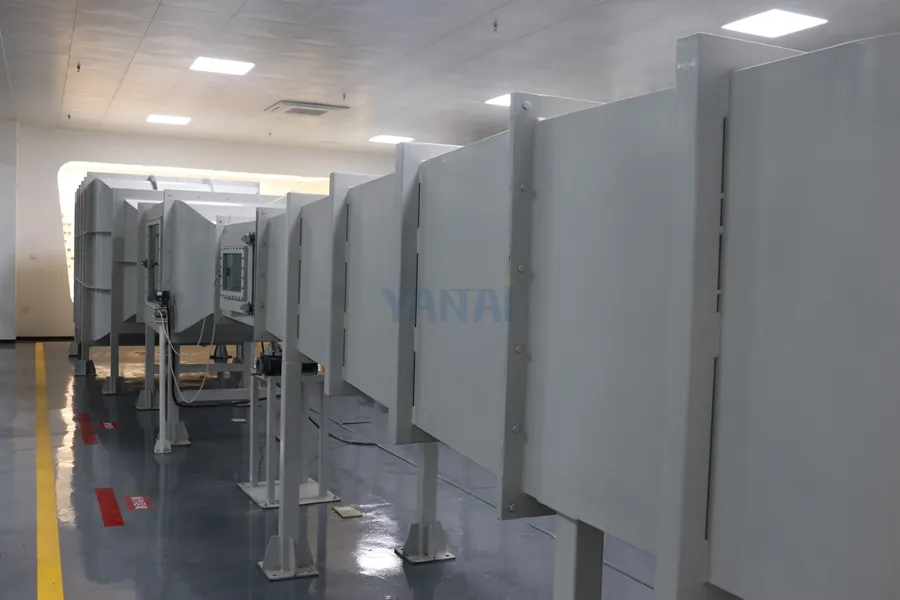

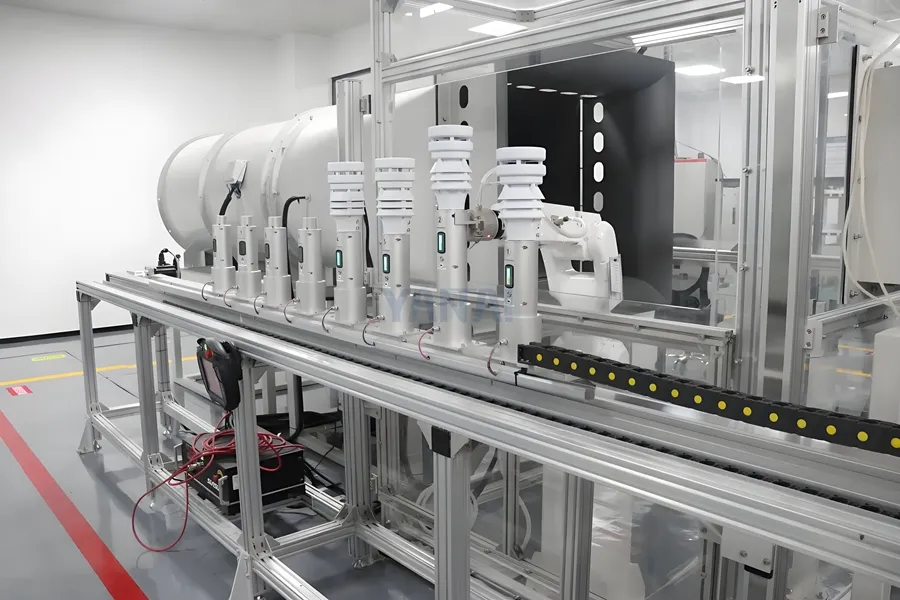

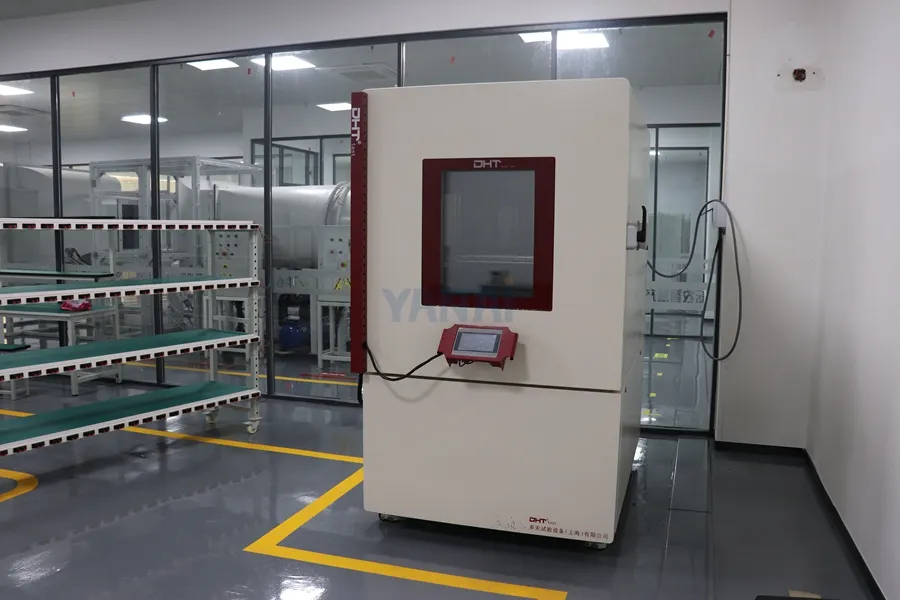

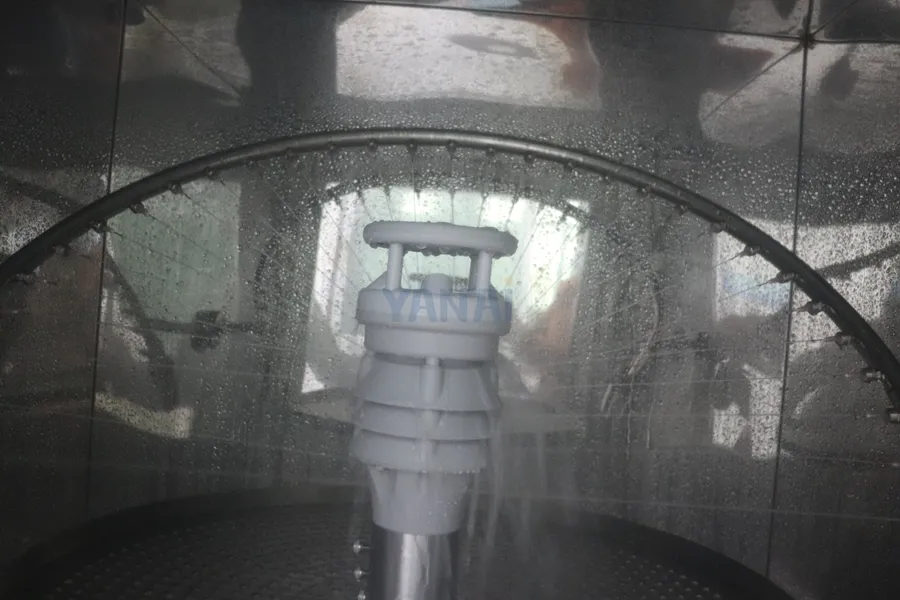

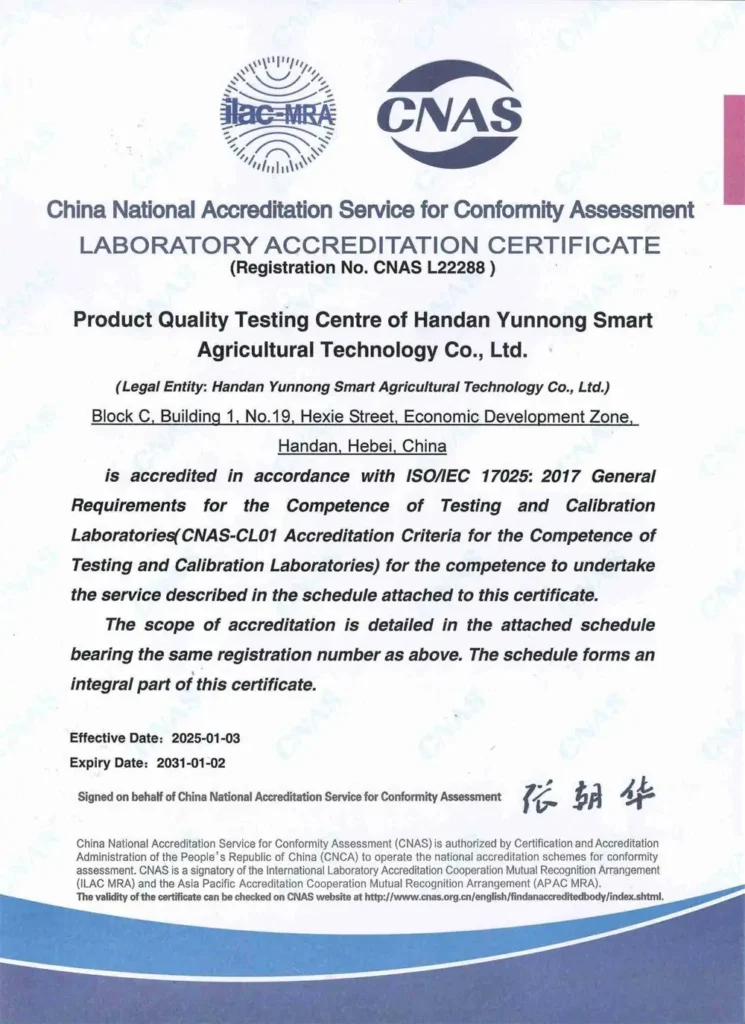

Yantai Ultrasonic Anemomete Sensor is a company specializing in the R&D, production, and supply of ultrasonic anemometers. We possess an in-house R&D team, production facilities, and a wind tunnel laboratory. Our products are certified by CNAS, CE, ISO, and RoHS, and have undergone rigorous testing in extreme environments, ensuring stable and reliable performance. They are widely applied in meteorological monitoring, smart agriculture, environmental protection, transportation, and other fields. We offer customized solutions and system integration services. Contact our expert team to access premium products and dedicated support.
