RYQ-2 Portable Weather Station Automatic for monitoring ambient temperature, humidity, atmospheric pressure, wind speed, and wind direction
RYQ-2A Portable Weather Station Automatic is specifically designed for meteorological observation and mobile monitoring scenarios. It integrates multiple monitoring functions including ambient temperature, relative humidity, atmospheric pressure, wind speed, wind direction, optical precipitation, noise, illuminance/solar radiation (optional), and PM2.5/PM10 (XF900). Equipped with a high-performance data logger (RY-ARM11, durable plastic housing), it enables stable long-term or short-term monitoring.
|
Parameter |
Specification |
|---|---|
|
Air temperature |
-40-85โ |
|
Relative humidity |
0-100%RH |
|
Light intensity |
0-100KLUX |
|
Soil temperature |
-20-80โ 0.1โ |
|
Power supply |
DC12-24V lithium solar energy |
Introduction

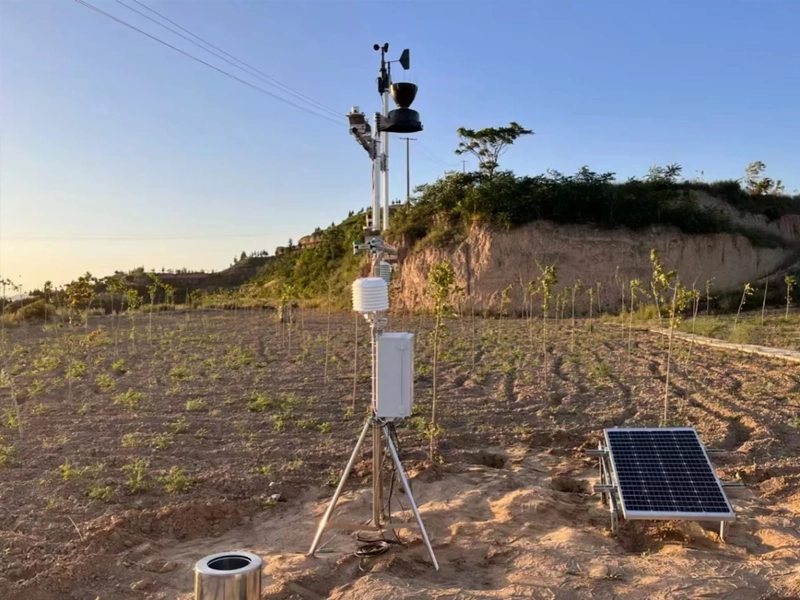

The RYQ-2 Portable Weather Station Automatic features a compact size, lightweight design, low power consumption, high integration, and easy installation. It is highly suitable for field operations or mobile monitoring, providing reliable data support.
System Equipment:
The portable automatic weather station is an integrated environmental monitoring system comprising high-precision sensors, a data acquisition unit, a solar power module, a rechargeable battery, and a portable mounting stand. The following is key components and its features:
- Weather Sensors: Accurately measure meteorological parameters such as temperature, humidity, pressure, wind speed, and wind direction.
- Data Acquisition Unit: Collects, processes, and stores sensor data, provide stable and continuous monitoring.
- Solar Panel: Provides sustainable power supply, supporting long-term outdoor operation.
- Rechargeable Battery: Stores energy to maintain uninterrupted operation during low-light or nighttime conditions.
- Portable Mounting Stand: Enables fast installation and easy relocation, ideal for mobile and temporary monitoring scenarios.
Specifications
| Parameters | Measuring Range | Accuracy | Resolution | Sampling Frequency |
| Ambient Temperature | -40-85โ | ยฑ0.3โ@25โ | 0.01โ | 1HZ |
| Relative Humidity | 0-100%RH | ยฑ3%RH(<80%RH, No Condensation) | 0.01%RH | 1HZ |
| Component Temperature | -20โ๏ฝ+80โ | โค ยฑ0.2โ | 0.1โ | 1HZ |
| Wind Speed | 0-60m/s | ยฑ๏ผ0.3+0.03V๏ผM/S๏ผVโค30M/Sยฑ๏ผ0.3+0.05V๏ผM/S;Vโฅ30M/S(V stands for standard wind speed in a wind tunnel) | 0.01m/s | 4HZ |
| Wind Direction | 0-359.9ยฐ | ยฑ3ยฐ(when Wind Speed =10m/s) | 0.1ยฐ | 4HZ |
| Atmospheric Pressure | 500-1100hPa | ยฑ0.5hPa๏ผ25โ๏ผ950-1100hPa๏ผ | 0.1hPa | 1HZ |
| Total Solar Radiation POA | 0~2000W/m2 | โค ยฑ3% | 1W/m2 | 1HZ |
| Operating Temperature | -40โโ80โ | |||
| Output | Standard product with RS485 interface, ModbusRTU;Customizable option SDI-12(Extra costs apply) | |||
| Maximum Output Frequency | Passive Mode: 1/S Active Mode: 1/min | |||
| Power Supply | DC12-24V | |||
| Solar Radiation Gauge Adjustment Panel | Adjustable Range: 0-60ยฐ(General Standard Selection 40ยฐ) | |||
| Level of Protection | IP65 | |||
| Mounting Manner | Standard Product is sleeve fixed (Optional: matching parts, extra costs apply, see Accessory and Parts) | |||
| Fixed Trestle | Optional: 1.5 meter, or 1.8 meter bracket (extra cost apply) | |||
| Cable | 3 meter cable line (Optional: 10 meter cable line available for extra cost ) | |||
| Remarks | XF500S-CWB Compact Weather Station standard equipped with thermometric value principle pyranometer-TBQ-2C-D (secondary). User have the options of EKO/MS-802(Class A), MS-60(Class B), MS-40(Class C) as the pyranometer. Kipp&Zonen/CMP6(Class B),CMP10(Class A) pyranometer glossary: Class A/B/C according to ISO9060:2018 Grade standard defined by the World Meteorological Organization Pyranometer Classification Secondary : according to GBT19565-2017 National standard for Pyranometer XF_PcSoftV1.0: the upper computer reading software, Nong-IoT developed for XF series compact weather station. | |||
Portable Weather Station Automatic Manufacturer and Supplier
As a professional manufacturer and supplier of portable automatic weather stations, we are committed to providing reliable environmental monitoring solutions for global customers. We possess an independent R&D team, advanced production facilities, a specialized wind tunnel testing laboratory, and international certifications including CNAS, CE, ISO, and RoHS. We continuously innovate sensor technology and system integration to ensure our products deliver high precision, stability, and long-term reliability across diverse outdoor and agricultural environments.
We offer flexible OEM/ODM customization and system integration services to help clients build tailored, data-driven monitoring solutions. Our experienced technical team stands ready to provide expert consultation and comprehensive after-sales support.
