RY-FSX Integrated wind speed direction sensor For Weather Station
The RY-FSX integrated wind speed and direction sensor, also called an anemometer sensor, adopts a traditional three-cup anemometer structure, featuring high-strength PC cups and a dynamically balanced housing. Its built-in signal processing unit outputs multiple wind speed signals. This sensor features a reliable structure and responsive activation, effectively capturing wind speed and direction data. It finds extensive application in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, as well as industrial, agricultural, and transportation sectors.
|
Parameter |
Specification |
|---|---|
|
Spectral range |
400-700nm |
|
Sensitivity |
7—50μv/μmol•m-2•s-1 |
|
Cosine correction |
Up to 80°incident angle |
|
Working environment |
Temperature-40—65℃,humidity |
|
Output |
Original output 200mv |
Introduct

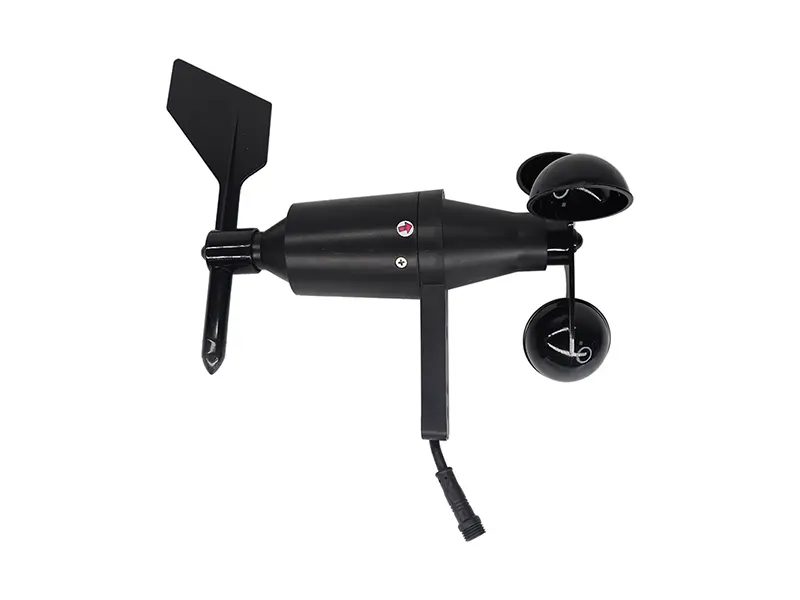

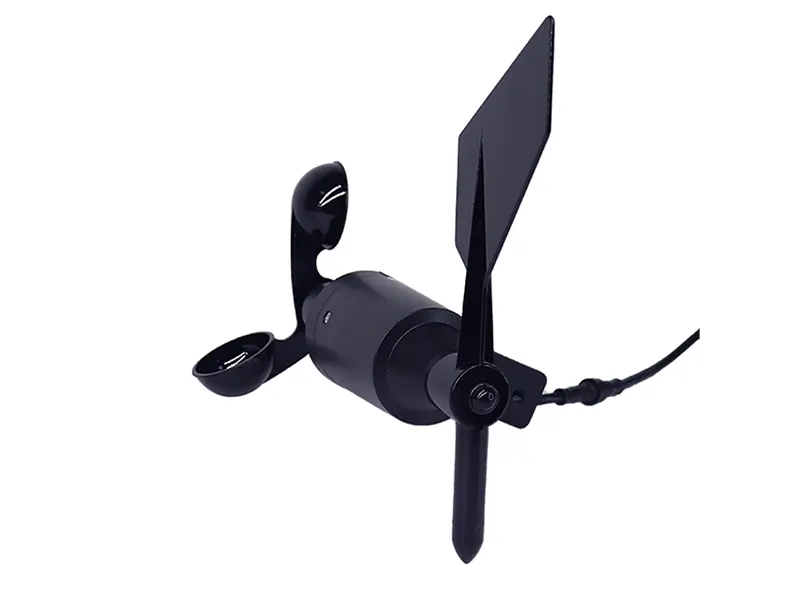

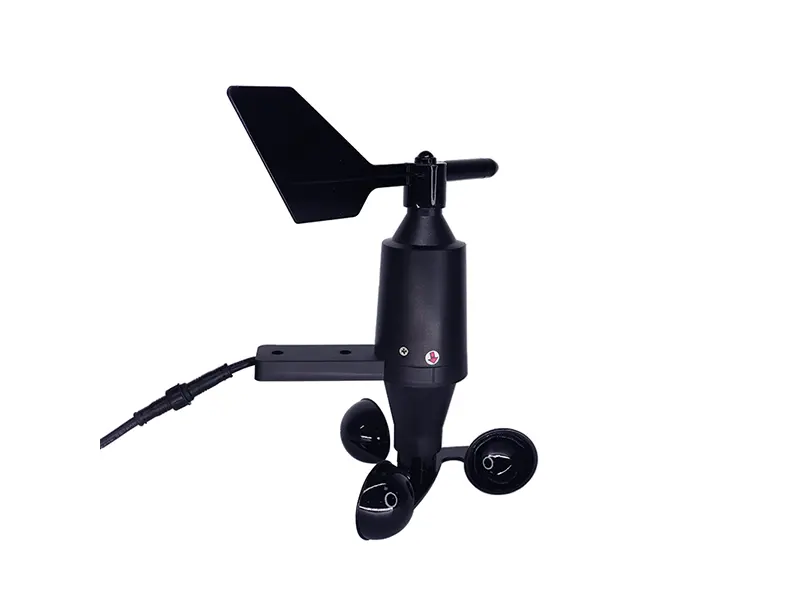

The RY-FSX Integrated Wind Speed and Direction Sensor is a meteorological sensor that combines wind speed and wind direction measurement into a single unit. It measures wind speed using a three-cup anemometer structure and wind direction via a large wind vane design. An internal signal processing unit outputs real-time wind speed data. Constructed from high-strength, corrosion-resistant materials and featuring a smooth bearing system, the sensor ensures long-term stable and accurate wind data collection.
Structure of wind speed and direction sensors
- Wind Speed Measurement Section: Traditional three-cup anemometer design with high-strength PC cups for responsive activation and excellent balance.
- Wind Direction Measurement Section: Large wind vane design effectively captures external wind direction data.
- Signal Processing Unit: Built-in electronic module outputs wind speed signals as required.
- Sensor Housing: Constructed from corrosion-resistant ASA material for long-term durability.
- Bearing System: Smooth bearings ensure flexible rotation and precise data acquisition.
Details Show
The RY-FSX Integrated Wind Speed Direction Sensor features a composite housing structure combining high-strength engineering plastic with aluminum alloy, balancing lightweight construction with weather resistance. Its main body employs a streamlined, monolithic design to effectively reduce wind resistance. The surface undergoes UV-resistant coating and anti-corrosion treatment, making it suitable for long-term outdoor exposure. Below are detailed specifications:
Specifications
The key parameters of the RY-FSX Integrated wind speed direction sensor include wind speed range, wind direction angle, output signal type, response time, and operating environment. Detailed technical specifications are as follows:
Parameters
| Mounting Type | multi-function | Model Number | RY-FSX |
| Type | weather station | Brand Name | XINFENG |
| Usage | wind speed and direction | Description | Flange installation |
| Place of Origin | Hebei, China | Series | HCD |
| Features | HIGH SENSITIVITY | Theory | Hall principle |
| Output | RS485 | Description | RY-FSX wind speed and direction sensor |
| Measuring Range | 0-60m/s | Monitoring principle | Hall principle |
| Accuracy | ±(0.3±0.03V) m/s | Resolution | 0.3 m/S |
| Starting wind speed | ≤0.6m/s | Wind Direction(Measur… | 0-360° |
| Wind Direction(Monitor… | Hall principle | Power Supply | DC12V-DC24V |
| Power consumption | ≤200mW | Output | RS485(ModBus RTU) |
Features of integrated wind speed and direction sensor
Wide Wind Speed Range
Measures 0–60 m/s with 0.28 m/s resolution for accurate monitoring in all environments.
Full Wind Direction Coverage
Captures wind direction from 0° to 359.9°, providing precise and comprehensive directional data.
Anti-EMI Design
Built-in protection ensures stable, reliable signal in electromagnetic environments.
High-Precision Bearings
Imported bearings provide smooth rotation, low friction, and accurate measurements.
Durable ASA Shell
High-strength ASA shell resists corrosion, UV, and long-term outdoor use.
Optimized Structural Design
Low inertia and balanced weight enable fast, sensitive wind response.
application wind speed direction sensor
The RY-FSX wind speed direction sensor is versatile and reliable, suitable for a variety of environments. Its precise measurement capabilities and durable design make it an ideal choice for professional monitoring in fields such as meteorology, transportation, industry, and scientific research.
Meteorological Monitoring
Used in weather stations to record wind speed and direction for accurate weather forecasting.
Marine Applications
Installed on ships, buoys, and coastal observation stations to monitor sea and wind conditions.
Environmental Monitoring
Applied in air quality and climate observation systems to assess local environmental conditions.
Airports and Ports
Provides real-time wind information for runways and ports, ensuring safe operations.
Agriculture and Greenhouses
Monitors airflow, temperature, and ventilation efficiency to support crop management.
Industrial and Laboratory Applications
Used in factories, research laboratories, and testing facilities for precise wind measurement.
custom Integrated Wind Speed and Direction Sensor
RY-FSX Integrated Wind Speed and Direction Sensor supports diverse customization services, enabling flexible configuration for varying project requirements and application environments. Through professional R&D and engineering support, we deliver tailored, high-efficiency wind monitoring solutions that precisely match client needs.
Customization Options
- Output Method Customization: Supports multiple signal output formats including RS485 and analog signals
- Communication Protocol Customization: Tailors protocols like Modbus to system requirements
- Range and Accuracy Customization: Optimizes wind speed or wind direction measurement parameters for specific applications
- Structure and Installation Customization: Supports various mounting methods and structural optimization designs
- Housing and Protection Customization: Offers enhanced corrosion resistance, dustproofing, and waterproofing ratings
- Project-Level Solutions: Provides sensor selection, system integration, and technical support
Integrated Wind Speed and Direction Sensor Manufacturer and Supplier
Yantai Sensor is a modern integrated wind speed and direction sensor manufacturer and supplier, specializing in the research, development, and production of high-performance wind monitoring sensors. Our company is supported by an experienced R&D team, a mature production system, and comprehensive testing facilities. All products are manufactured using high-quality components and stable, reliable measurement principles. Each sensor undergoes rigorous environmental and reliability testing to ensure excellent sensitivity, strong weather resistance, and long-term stability. Our integrated wind speed and direction sensors are widely used in meteorology, environmental monitoring, airports, ports, marine applications, agriculture, and transportation systems. We also provide flexible customization options and system integration services, delivering reliable, durable, and easy-to-integrate wind measurement solutions tailored to specific project requirements.
