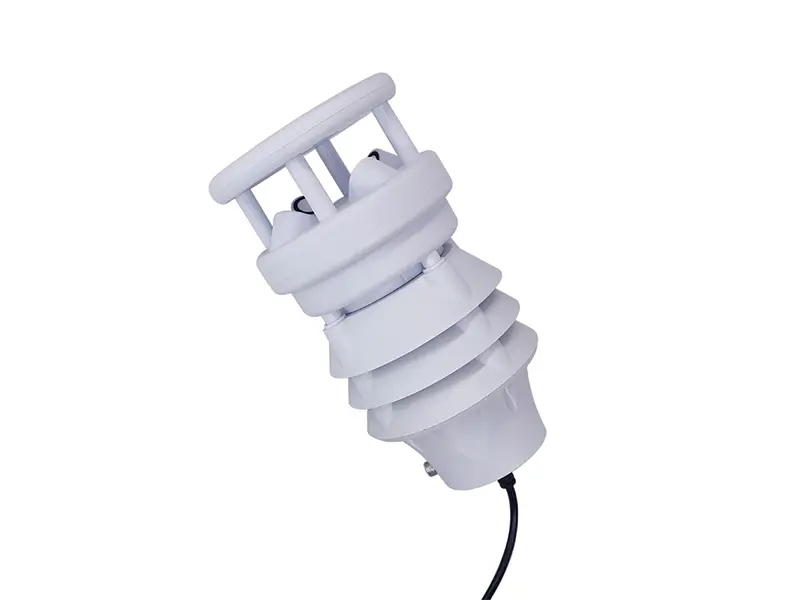

Industrial Compact Weather Stations | XF500 Series All-in-One Meteorological Sensors
The XF500 series represents an industrial-grade, highly integrated, maintenance-free all in one compact weather station. Through fully solid-state design with no moving parts, it achieves precise multi-parameter monitoring of wind speed/direction, barometric pressure, light intensity, and radiation within a single unit.
Supporting highly flexible protocol customization, it perfectly adapts to diverse integration needs in smart cities and industrial IoT. With multiple models and functional options, it delivers customizable, durable solutions for renewable energy, smart agriculture, and industrial IoT applications.
- Measurement Parameters: Wind Speed/Wind Direction/Temperature/Humidity/Air Pressure/Light Intensity/Radiation
- Protection Rating: IP65/IP66
- Operating Temperature: -40°C to +85°C
- Communication Interface: RS485/Modbus/4-20mA
- Power Supply: DC 9-24V / Solar Power / PoE
- Warranty Period: 12 months
Price: $899~$2,199
Introduction
The XF500 Series Compact Weather Station Sensor is a multi-parameter meteorological monitoring sensor device. The base model collects core meteorological data including temperature, humidity, wind speed, wind direction, barometric pressure, light intensity, and solar radiation.
The series also includes sub-models such as XF500G, XF500S, and XF500L, which respectively expand monitoring capabilities to include light intensity, solar radiation, and third-generation wind speed and direction. Featuring a compact design and flexible functionality expansion, this series delivers customized monitoring solutions for diverse applications.
The XF500L sub-model, specifically enhanced for light intensity, solar radiation, and third-generation wind speed/direction monitoring, finds extensive use in environmental, meteorological, agricultural, photovoltaic, and transportation sectors.
Working Principle

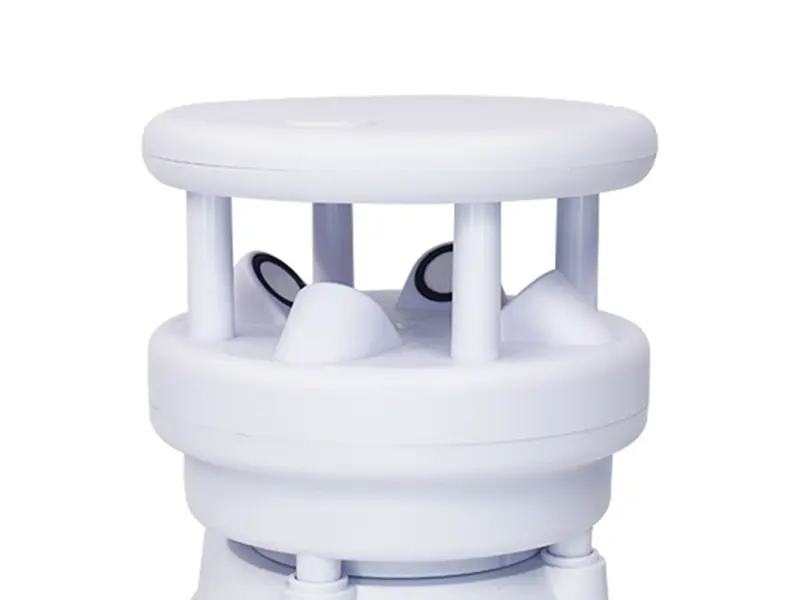

The XF500 Series All-in-One Weather Sensor operates on the advanced ultrasonic time-of-difference principle for wind measurement. Unlike traditional mechanical sensors, it features four ultrasonic transducers arranged in a matrix that emit and receive high-frequency sound pulses. By calculating the micro-second travel time differences caused by airflow, the internal microprocessor determines precise horizontal wind speed and direction with zero starting threshold and no mechanical wear.
For environmental parameters, the station integrates high-precision MEMS sensors and thermopiles within its anti-radiation shield. Barometric pressure, temperature, and humidity are measured via industrial-grade solid-state modules, while light intensity and solar radiation (in G/S/SL models) are captured through specialized photoelectric sensors. All raw data is processed by an onboard edge-computing chip using filtering algorithms to eliminate environmental noise, delivering stable, linearized engineering values via the RS485 Modbus-RTU interface.
Types and Selection Guide
We offer the XF500 series of integrated weather stations in multiple configurations to meet monitoring needs across various industries. From basic environmental monitoring to high-precision wind speed and solar radiation analysis, you can select the model that best matches your project requirements.

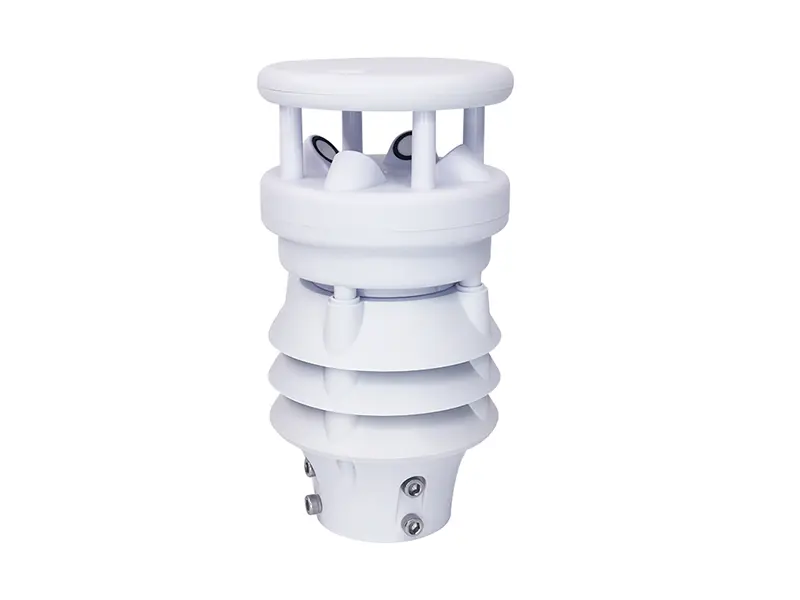

XF500 | Standard All-in-One Wind Monitoring Solution
The essential all-in-one station providing reliable wind speed and direction data, ideal for cost-effective environmental monitoring in general industrial zones.

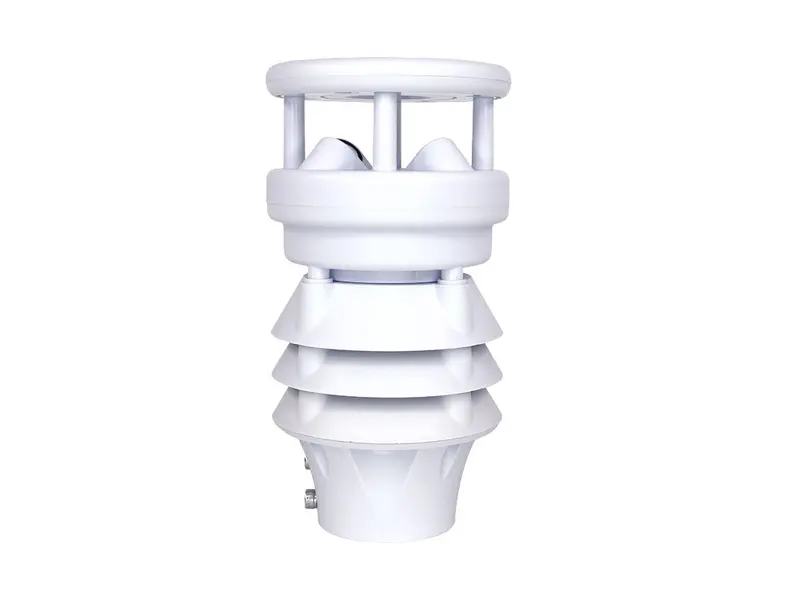

XF500G | Integrated Light Intensity & Pressure Weather Station
Integrated with air pressure and high-sensitivity light intensity sensors, specifically designed for smart lighting, building automation, and urban environment management.
XF500S | Solar Radiation & PV Performance Weather Station
A comprehensive solution combining wind sensors with solar radiation measurement, perfect for evaluating efficiency and performance ratios (PR) in PV power plants.
XF500L | 3rd-Gen Ultrasonic Wind & Pressure Sensor
Features our 3rd-gen ultrasonic wind technology and pressure monitoring, offering enhanced signal stability for professional-grade meteorological research and data analysis.
XF500LB | Industrial-Grade Advanced Wind & Pressure Station
The XF500LB is a advanced wind and pressure sensors, used to withstand harsh, high-interference environments with maximum data integrity.
XF500GL | Advanced Wind Sensing & Agriculture Light Monitor
Optimized for smart agriculture, combining advanced wind sensing with precision light measurement to balance climate control and optimal crop growth.

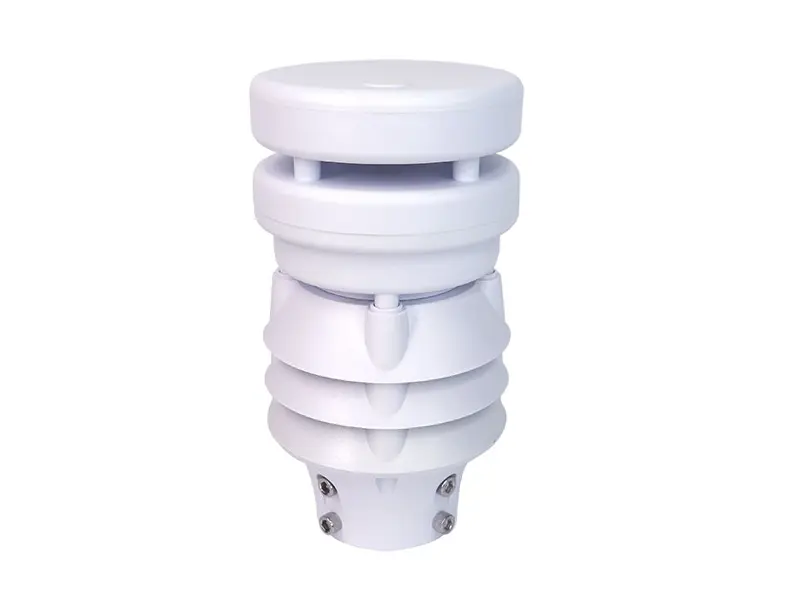

XF500SL | Professional Solar Radiation & Advanced Wind System
Suitable for professional solar monitoring, merging advanced wind sensor technology with high-accuracy solar radiation sensors for scientific-grade energy data.
Quick Selection of Multi-parameter Meteorological Sensor
Streamline your procurement process by comparing our XF500 configurations at a glance.
| Model | Wind Speed & Direction | Air Pressure | Light Intensity | Solar Radiation | Technology Level | Core Application |
| XF500 | ● | – | – | – | Standard Ultrasonic | Environmental Monitoring |
| XF500G | ● | ● | ● | – | Standard Ultrasonic | Smart City / Lighting |
| XF500S | ● | ● | – | ● | Standard Ultrasonic | PV Power Stations |
| XF500L | ● | ● | – | – | 3rd-Gen High Precision | Meteorological Research |
| XF500LB | ● | ● | – | – | Advanced Industrial | Heavy Industrial / Marine |
| XF500GL | ● | ● | ● | – | Advanced Wind Tech | Smart Agriculture |
| XF500SL | ● | ● | – | ● | Advanced Wind Tech | Professional Solar Study |

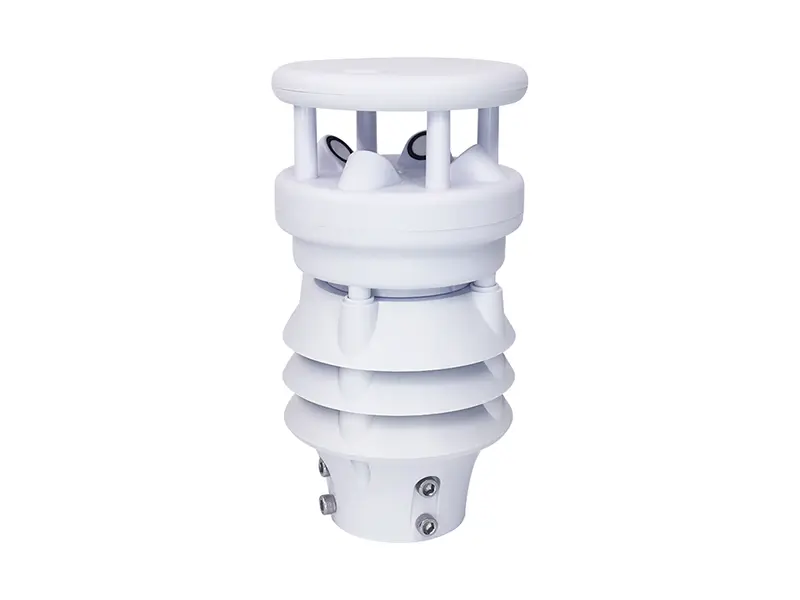

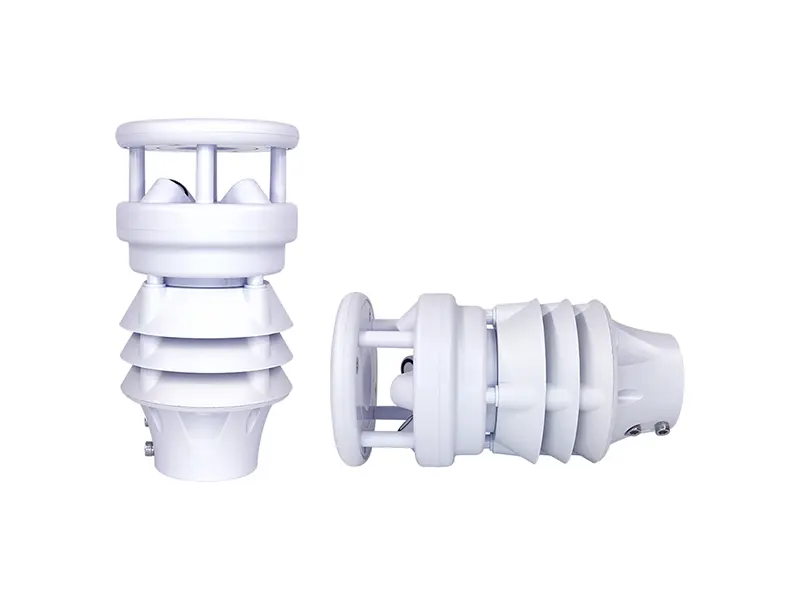

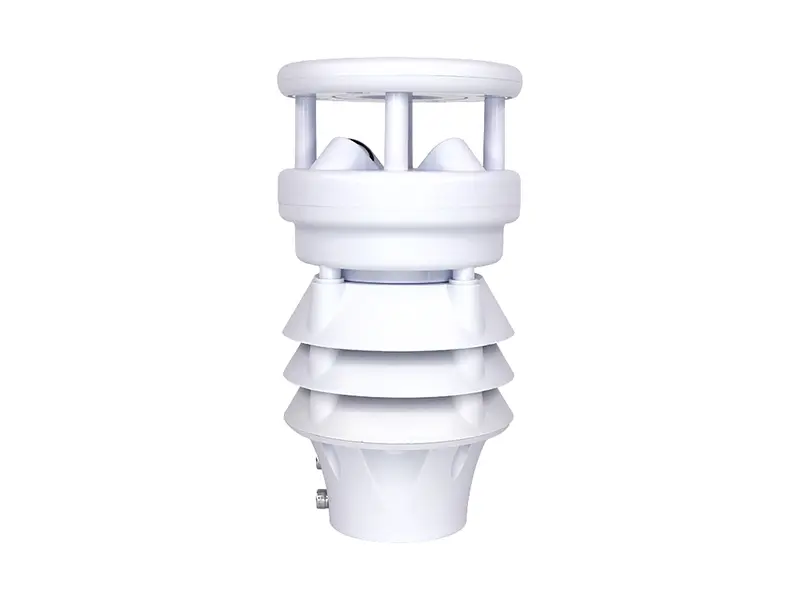

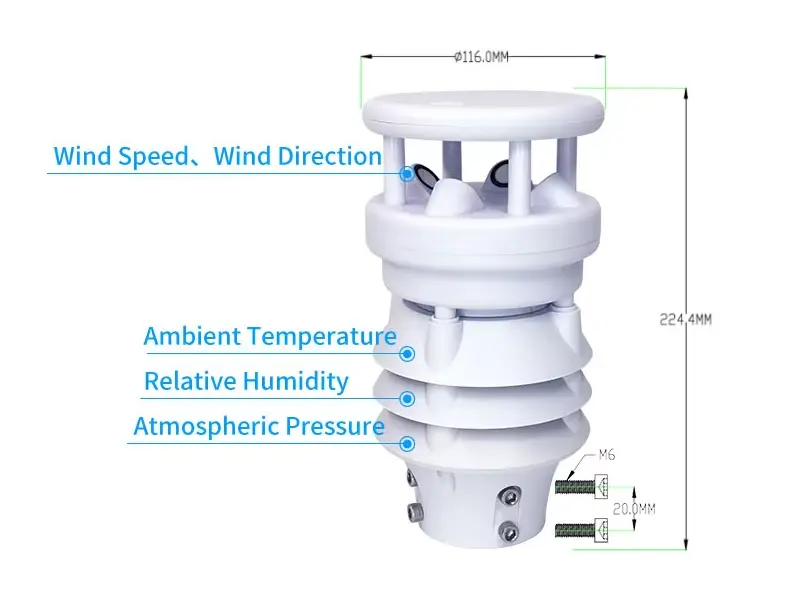

Structure of compact weather station
The XF500 Series industrial compact weather station consists of five integrated meteorological sensing components within a single unified enclosure: ultrasonic wind speed and direction sensor, ambient temperature sensor, relative humidity sensor, atmospheric pressure sensor, and thermal radiation shield housing.
- Wind Speed & Direction Sensor: Solid-state ultrasonic technology with no moving parts, providing 360° measurement coverage and immunity to mechanical wear.
- Ambient Temperature Sensor: High-precision thermistor element protected by radiation shield, delivering accurate air temperature readings across extended operating ranges.
- Relative Humidity Sensor: Capacitive polymer sensing element with fast response and long-term stability for reliable moisture measurement.
- Atmospheric Pressure Sensor: Temperature-compensated MEMS barometric transducer sealed within the housing for precise pressure monitoring.
- Radiation Shield & Enclosure: Multi-layer thermally-optimized shield with IP65/IP66 rated housing, suitable in harsh outdoor environments.

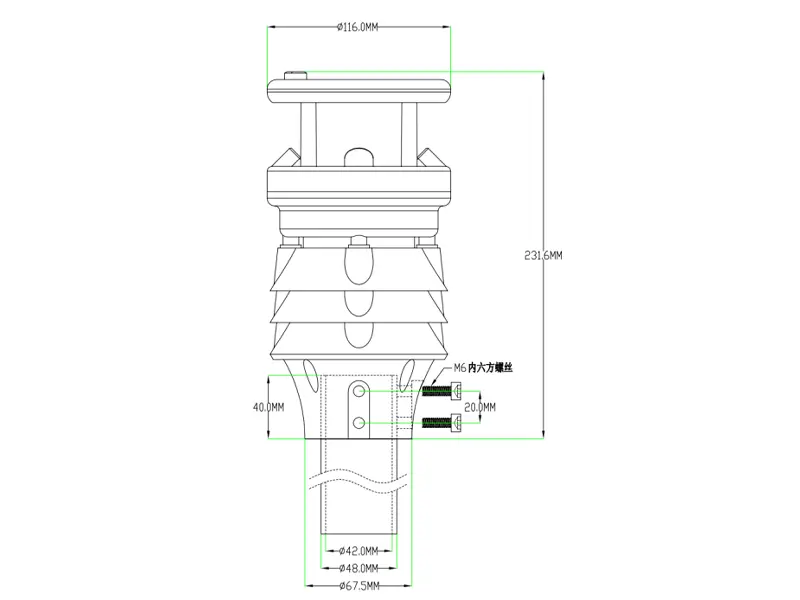

size
The compact design of the XF500 series allows easy integration into space-constrained environments; please refer to the dimensional drawings below for installation and structural planning.
Specifications
The table below details the technical specifications and measurement ranges for the XF500 series. For specialized parameter configurations or protocol development, we offer deep customization services to align with your project requirements.
| Monitoring Parameters | Measuring Range | Accuracy | Resolution | Sampling Frequency |
| Air Temperature | -40–85°C | ±0.3°C @25°C | 0.01°C | 1Hz |
| Air Humidity | 0–100%RH | ±3%RH (10%–90%RH, non-condensing) | 0.01%RH | 1Hz |
| Wind Speed | 0–60m/s (Customizable 0–75m/s) | ±(0.3+0.03V)m/s (V≤30m/s); ±(0.3+0.05V)m/s (V>30m/s) V is standard wind tunnel value | 0.01m/s | 4Hz |
| Wind Direction | 0–359.9° | ±3° (when wind speed <10m/s) | 0.1° | 4Hz |
| Atmospheric Pressure | 500–1100hPa | ±0.5hPa (25°C, 950–1100hPa) | 0.1hPa | 1Hz |
| Illuminance | 0–200KLux | ±3% or 1%F.S | 10Lux | 1Hz |

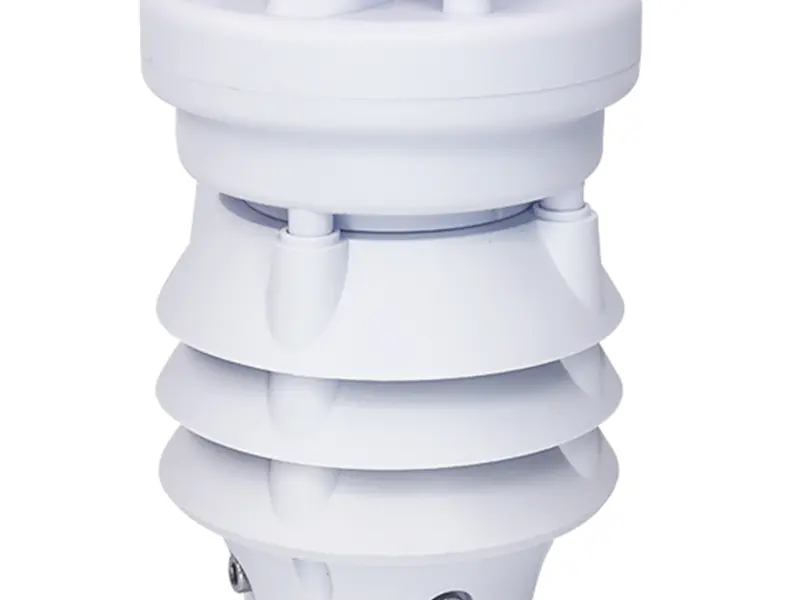

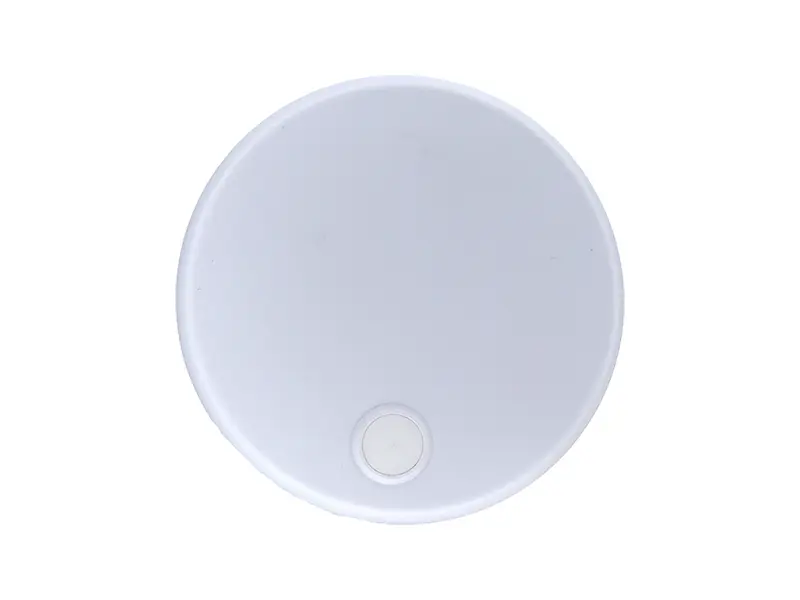

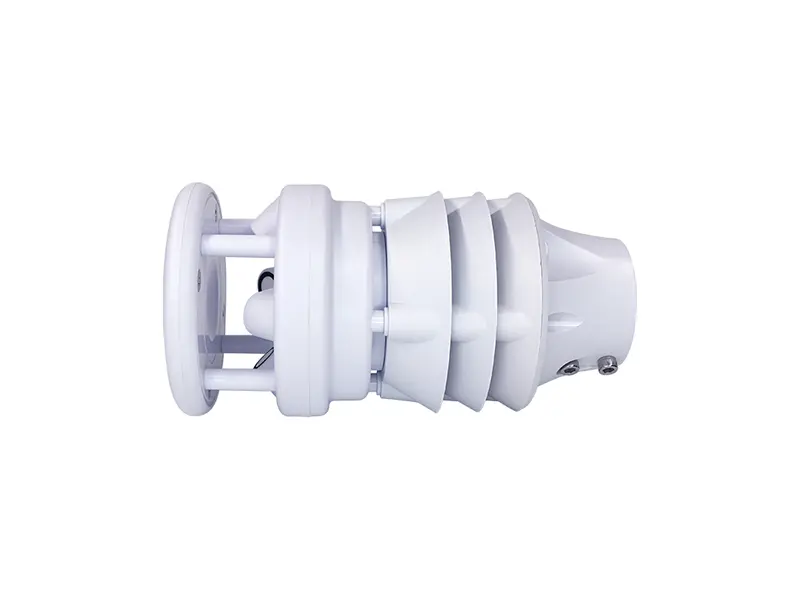

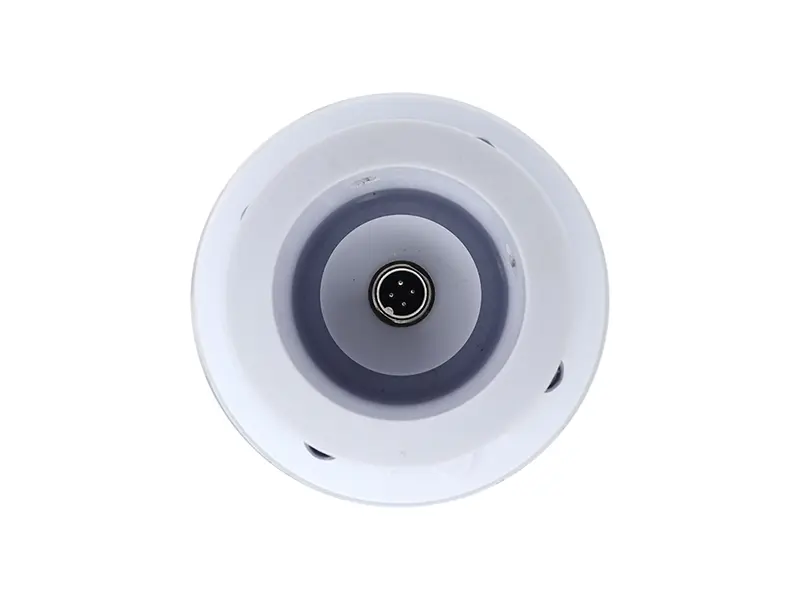

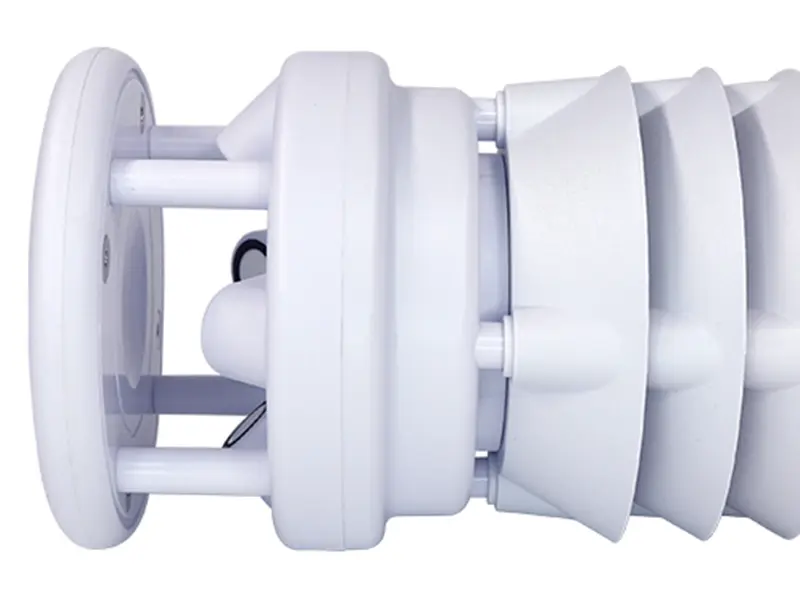

Details Show
Compatible Adapter

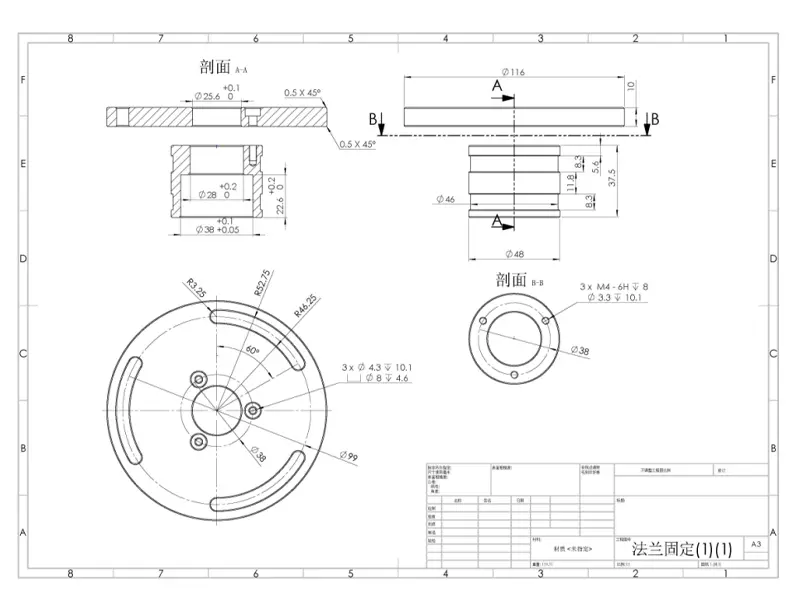

Flange Mounting Method

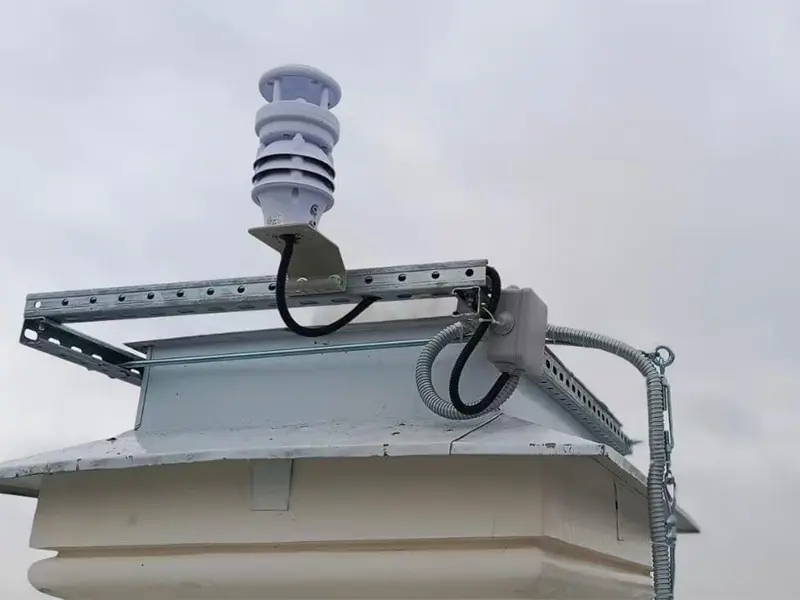

Bent Plate Mounting Method
Features
Compact Integrated Design
Compact meteorological sensor featuring a highly integrated and modular architecture to simplify deployment.
Maintenance-Free Operation
Design with no moving parts ensures long-term reliable operation and minimal maintenance requirements.
Quick Installation
User-friendly mounting system enables rapid installation and commissioning in diverse environments.
Advanced Thermal Management
Radiation shield incorporates specialized insulation for precise temperature measurement.
Expandable Measurement Capabilities
Supports additional parameter modules for customized meteorological monitoring applications.
Complete Support Package
Includes one-year warranty and complimentary XF_PcSoftV1.0 configuration software (available through your sales representative).
application

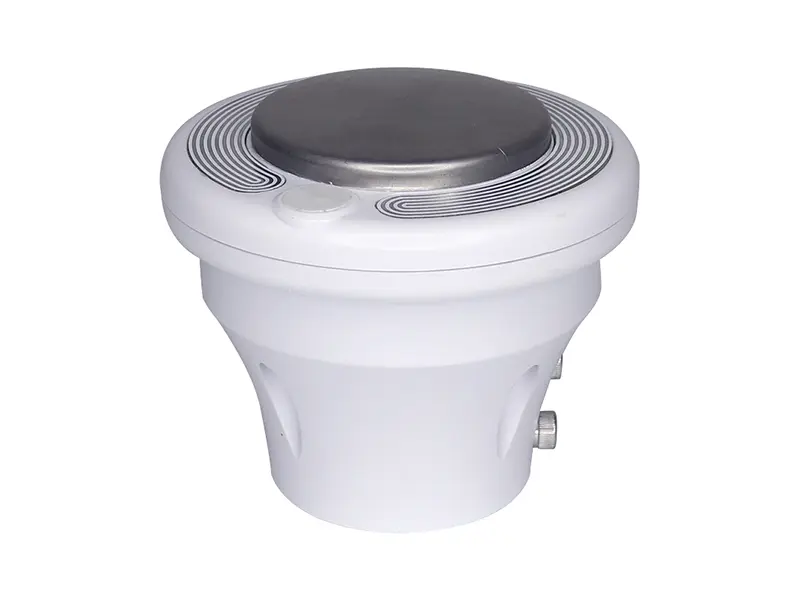

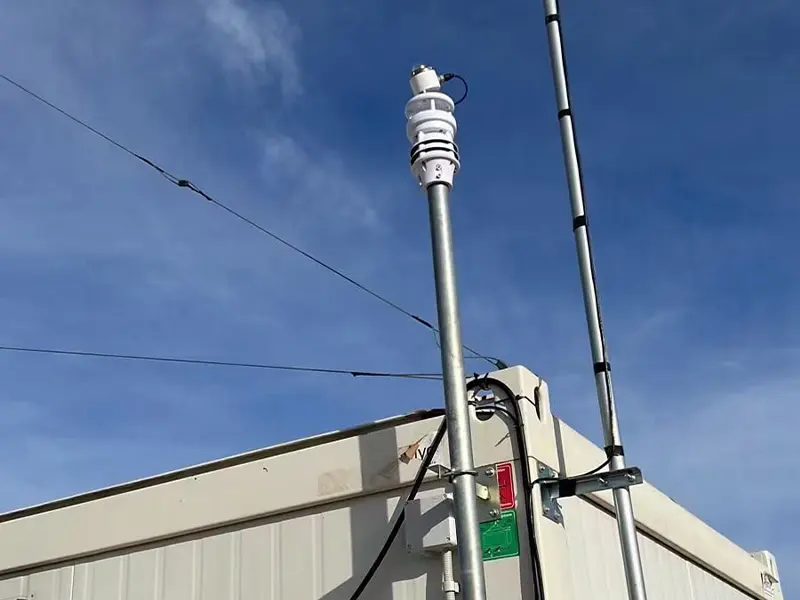

Compact Weather Station with Rainfall Sensor Featuring a miniaturized, highly integrated all-in-one design, this station continuously monitors environmental parameters including rainfall, wind speed and direction, temperature, humidity, and atmospheric pressure. It finds extensive application in meteorological monitoring, environmental assessment, agriculture, and photovoltaic industries.
Environmental Monitoring
Urban air quality networks, ecological research stations, and pollution tracking systems requiring continuous meteorological data.
Smart Agriculture
Precision crop management, irrigation scheduling, and microclimate monitoring.
Smart City Infrastructure
Intelligent street lighting control, urban heat island analysis, and municipal environmental management platforms.

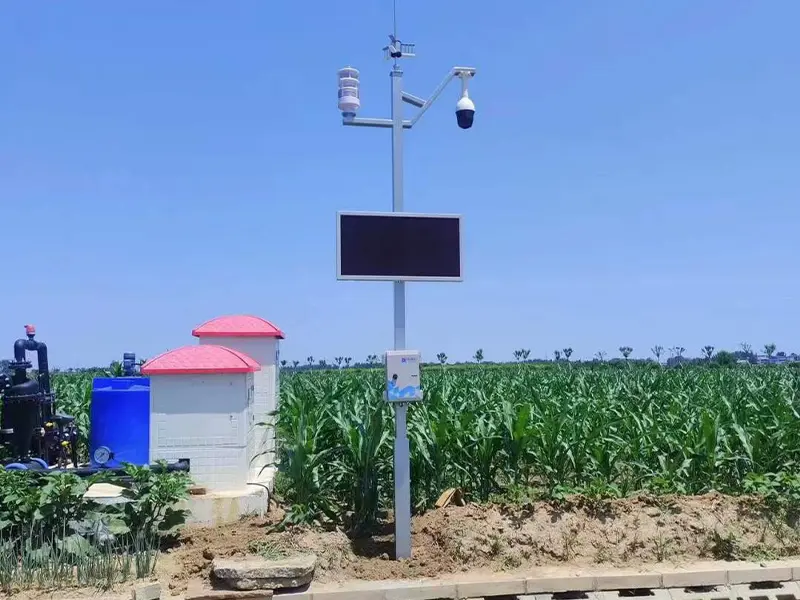

Agricultural Meteorological Monitoring
Provides real-time monitoring of field meteorological conditions, delivering data-driven insights for agricultural production management and disaster early warning.
Transportation & Highways
Road weather information systems (RWIS), visibility monitoring, and hazardous condition early warning for traffic safety.

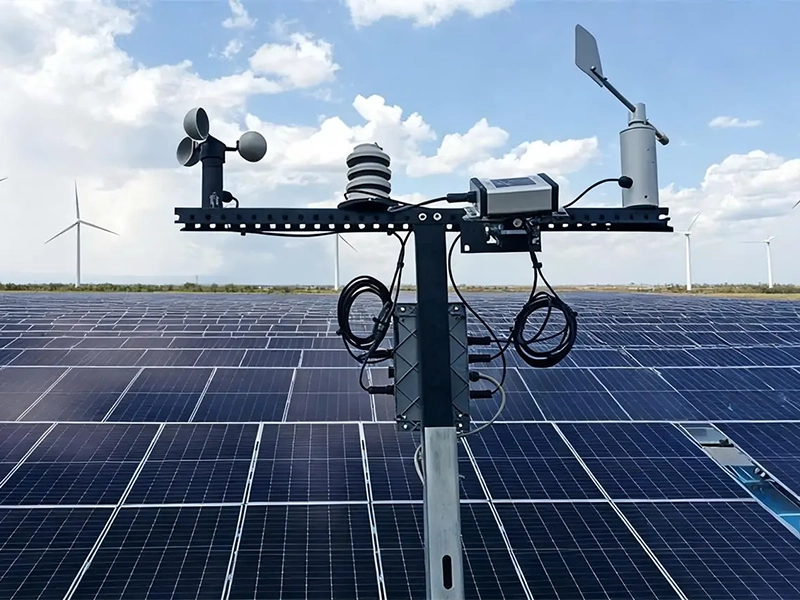

Renewable Energy
Solar farm irradiance tracking, wind farm site assessment, and energy output forecasting.
custom Industrial Compact Weather Stations
The XF500 Series Automatic Weather Station (AWS) offers flexible customization to match your specific meteorological monitoring requirements. Our engineering team collaborates directly with clients to configure optimal sensor combinations, communication protocols, and installation specifications for applications across smart agriculture, environmental monitoring, transportation infrastructure, and industrial operations.
To receive a tailored proposal with detailed specifications and pricing, please provide:
- Application requirements and installation environment
- Desired meteorological parameters and measurement accuracy
- Communication interface and power supply preferences
- Project quantity and delivery timeline
Industrial Compact Weather Stations sensor Manufacturer and Supplier
Yantai Sensor is a leading manufacturer and supplier of industrial compact weather stations, specializing in the research, development, and production of advanced meteorological sensing solutions. Our CNAS-accredited facilities include a professional wind tunnel laboratory capable of rigorous testing under extreme conditions, high-temperature/high-humidity, freeze-thaw cycles, and severe wind exposure, ensuring reliable performance in demanding operational environments.
Equipped with automated production lines and ISO-certified quality management systems, we hold 10+ core patents and international certifications including CE and RoHS.
From customized single-unit solutions to complete turnkey weather monitoring systems, we deliver application-specific configurations backed by comprehensive technical support.
