TBQ‑2C Total Solar Radiation Sensor for Zhenfa Pakistan Solar Power Plant

---

Customer Requirement

The client’s requirements for solar-powered surveillance hardware are as follows:

• Need reliable total solar radiation measurement to calculate PV system efficiency, compare actual power output vs theoretical yield.
• Field environment is harsh: frequent sand wind, high ambient temperature, strong ultraviolet radiation. Sensors must withstand long‑term outdoor desert operation without frequent maintenance.
• Data output should match local site data acquisition system, easy to integrate into existing PV monitoring platform.
• Full set solution: not only radiation sensor, but also complete meteorological station including wind speed & direction, temperature‑humidity sensor, installation bracket, junction box and field installation guidance.
• Strict project delivery timeline: equipment should arrive before site construction & commissioning phase to avoid delaying overall project progress.

Communication Process

At the early stage, our technical team communicated repeatedly with the project engineering team both online and offline.

The customer first shared site environment description and project drawing, and raised concerns about local desert sand‑storm influence on sensor lens and measuring accuracy. They also mentioned many imported sensors in local market had high cost and slow after‑sales support.

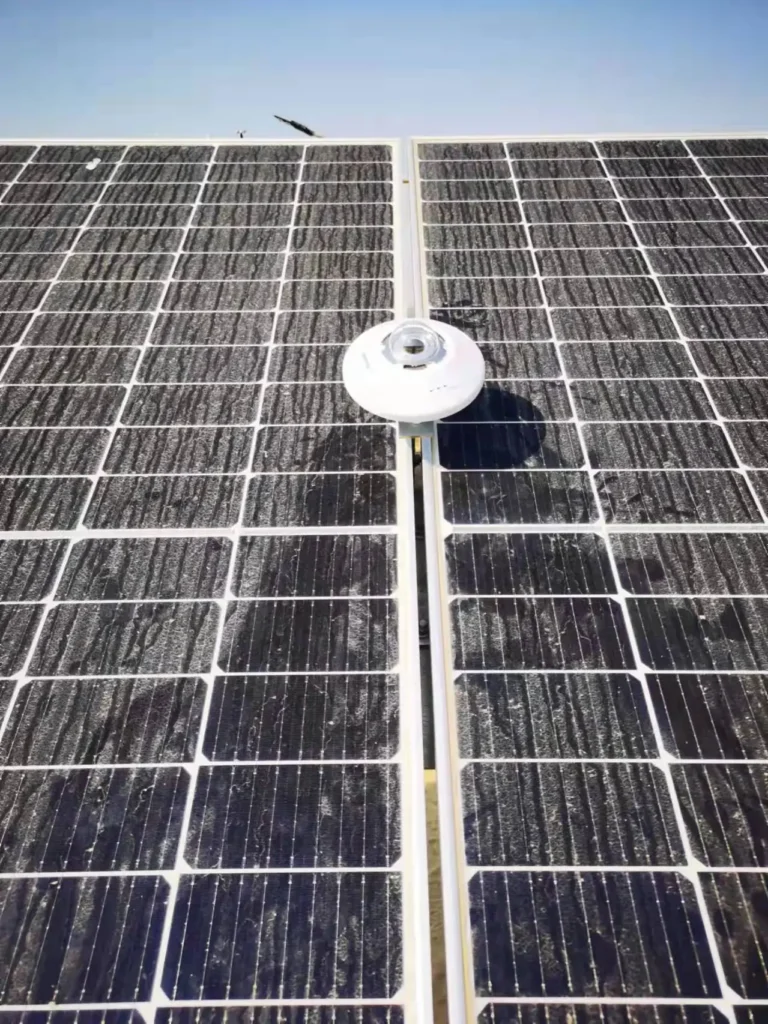

We listened to their pain points: high‑cost imported spare parts, long replacement lead time, worries about lens dust accumulation affecting measurement result. Then we introduced TBQ‑2C total solar radiation sensor practical desert‑project references. We discussed installation options: one option is mounting sensor directly on PV panel support frame as shown in picture; another option is integrating sensor into full‑function PV weather station. After comparing site layout, the customer finally selected dual‑layout solution: part TBQ‑2C sensors are fixed on PV array for panel‑plane irradiance monitoring, and others are assembled on meteorology station for horizontal total radiation collection.

We also confirmed signal output type, cable length, installation accessories and delivery schedule step‑by‑step, adjusted package to adapt long‑distance sea transportation to Pakistan.

Yantai Sensor Solution

Combined with Pakistan desert PV site real‑working condition, we delivered customized monitoring solution:

Core measuring unit: TBQ‑2C total solar radiation sensor, some units mounted on PV module rack to obtain irradiance on photovoltaic array plane.

Complete PV meteorological station: equipped with wind speed sensor, wind direction sensor, temperature‑humidity sensor with radiation shield, lightning‑protection rod, metal installation bracket, data acquisition cabinet, matched cables and fasteners.

Signal output: 4‑20mA analog signal, compatible with site existing data logger and SCADA monitoring system.

Supply full‑set installation accessories, transportation‑proof packaging, and provide remote technical guidance for field commissioning.

Parameters of TBQ‑2C Total Solar Radiation Sensor

Item	Specification
Measuring range	0～2000W/㎡
Sensitivity	7～14μV/(W·m⁻²)
Response time	≤30s
Zero offset	≤±7W/㎡(when 200W/㎡ ventilation shielding)
Signal output	4‑20mA (can customize 0‑5V, RS485 Modbus)
Operating environment	‑45℃～+60℃, long‑term outdoor exposed use
Protection grade	IP65
Application scene	Ground‑mounted PV plant, meteorological station, solar energy research

Equipment Advantages

• Strong environmental adaptability for desert scenario: special optical glass cover, anti‑aging shell material, resist sand wind erosion and intense UV exposure. Even under heavy dust environment, it can keep stable measuring performance with regular simple cleaning.
• Stable measuring performance: meet photovoltaic industry irradiance monitoring requirements, data can support PV power generation efficiency calculation and performance evaluation.
• Flexible installation: support installing on PV array support or assembling on meteorology station bracket, adapt different site layout requirements.
• Diversified signal options: analog and digital signal optional, easy to dock with most mainstream PV data collection devices.
• Cost‑effective: compared with imported brands, achieve equivalent measuring accuracy, with shorter delivery cycle and more accessible spare‑part support for overseas projects.

Our Service

• Pre‑sales: technical communication, solution customization, parameter confirmation, drawing review, provide reference case of overseas photovoltaic projects.
• Production & packing: adopt reinforced anti‑shock packing for sea freight, list detailed packing list for convenient customs clearance in Pakistan.
• Delivery: strictly follow project schedule, track logistics status until goods arrive at destination port.
• After‑sales: provide detailed English‑version operation & installation manual. Offer remote online technical support for field engineers during equipment installation and debugging. Answer questions about sensor calibration, daily maintenance and dust cleaning tips.
• Long‑term support: provide spare‑part supply channel for later‑stage project operation.

Project Result & Customer Feedback

All TBQ‑2C total solar radiation sensors and meteorological station hardware were delivered on schedule. On‑site installation and commissioning work has been completed as shown in project photos.

The radiation sensor works stably in high‑temperature and sand‑dust desert conditions. Real‑time solar radiation data is smoothly transmitted to plant monitoring platform. The data supports theoretical power generation comparison, PV module performance analysis, and assists operation team to make scientific O&M decisions.
Project engineering team gave positive feedback:

“The TBQ‑2C solar radiation sensor runs well in Pakistan desert environment. The data is reliable. The complete set of accessories and remote technical guidance greatly helped our field construction work. Comparing with imported products, it brings obvious advantage on project cost, and delivery cycle is much more satisfying.”

This Zhenfa Pakistan solar project becomes a typical overseas reference case for Yantai Sensor TBQ‑2C total solar radiation sensor, proving that our solar irradiance monitoring hardware can adapt large‑scale ground‑mounted photovoltaic projects under harsh desert climate.

---
