XF600A temperature Relative humidity Rainfall wind speed direction compact weather sensor

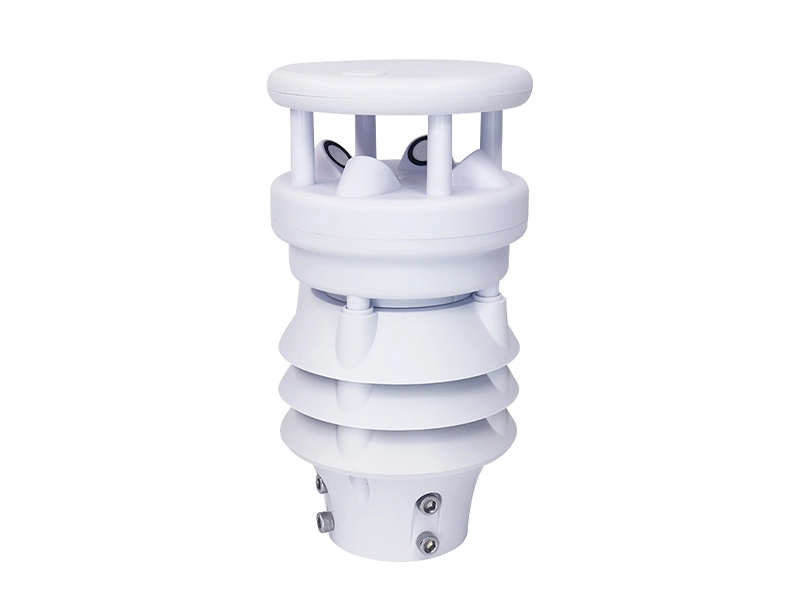

XF600A compact weather station integrates six meteorological parameters, Ambient Temperature, Relative Humidity, Atmospheric Pressure, Wind Speed, Wind Direction and Piezoelectric Rainfall, in one structure. It realizes 24 hours continuous online monitoring of outdoor meteorological parameters, and output these data to users through digital communication interface all at once.
|
Parameter |
Specification |
|---|---|
|
Model number |
XF600A |
|
Ambient Temperature |
-40-60℃ |
|
Output |
RS485 interface, Modbus RTU; Customization option SDI-12 |
|
Fixed Trestle |
0–110 kPa |
|
Wind Speed |
0-60m/s |
Introduction

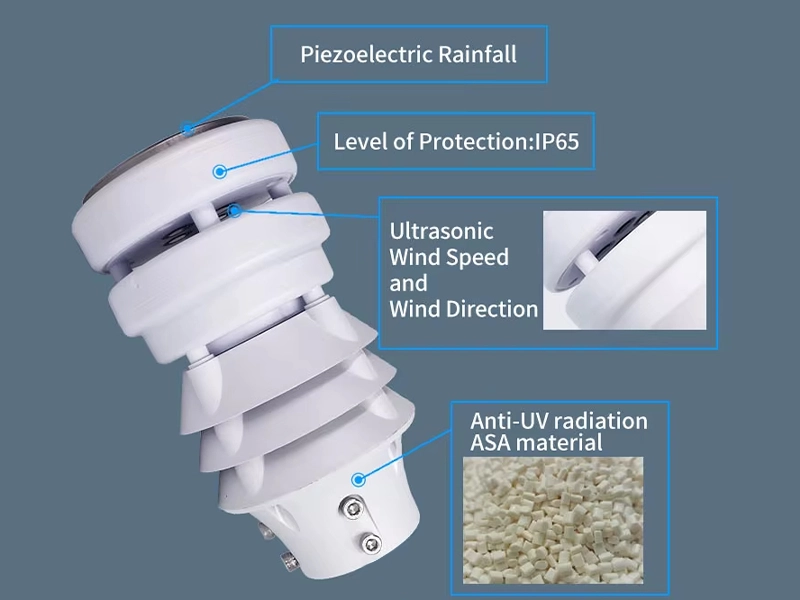

The XF600A compact weather station features a highly integrated design, concentrating multiple sensors for temperature, humidity, wind speed and direction, and rainfall into a single structure. Combined with an ultrasonic anemometer, optical rainfall detection components, and an intelligent signal processing main control board, it achieves high-precision, multi-parameter synchronous data acquisition.
The compact weather sensor casing is made of UV-resistant and corrosion-resistant materials, along with a multi-layer radiation protection structure, ensuring long-term stable operation in harsh outdoor environments. It also features standardized power and communication interfaces, supporting industrial protocols such as RS485 and SDI-12, and is compatible with various mounting brackets, making it suitable for rapid deployment and professional applications in various automatic weather station and environmental monitoring scenarios.

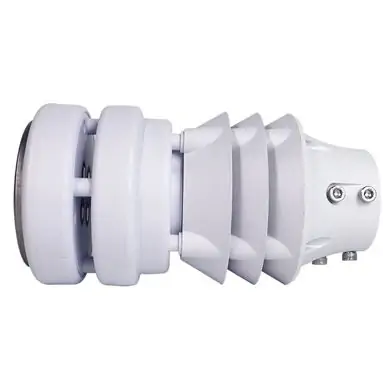

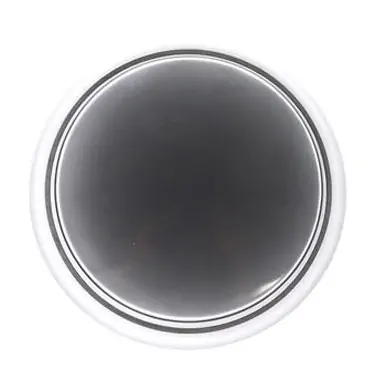

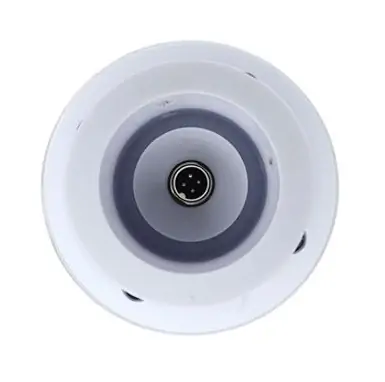

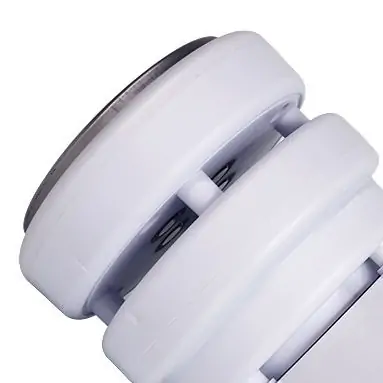

Details Show

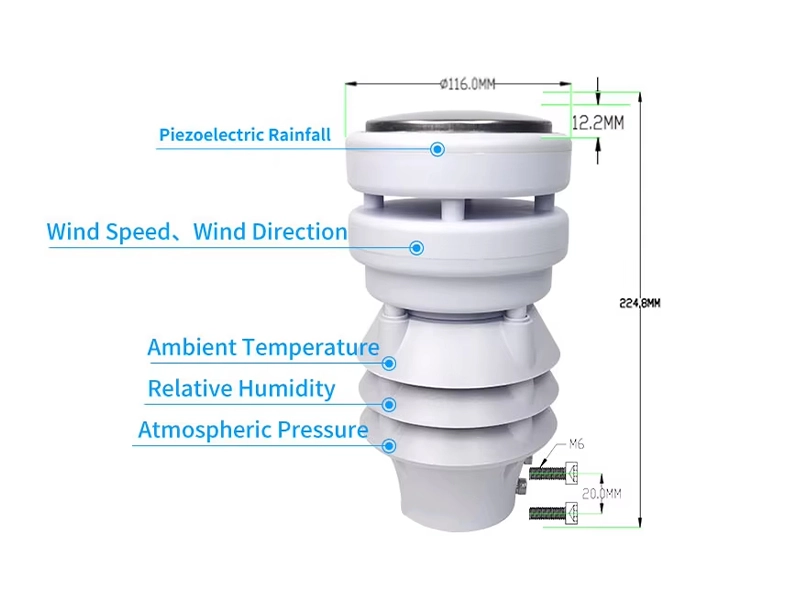

Ambient Temperature, Relative Humidity, Atmospheric Pressure, Wind Speed, Wind Direction and Piezoelectric Rainfall, in one structure.
Output:
Customizable option SDI-12(Extra costs apply)
Standard product with RS485 interface, ModbusRTU;
Specifications
| Monitoring parameters | Measuring range | Accuracy | Resolution | Sampling frequency |
|---|---|---|---|---|
| Ambient Temperature | -40-60℃ | ±0.3℃@25℃ | 0.01℃ | 1HZ |
| Relative Humidity | 0-100%RH | ±3%RH (10%-80%RH, no condensation) | 0.01%RH | 1HZ |
| Wind Speed | 0-60m/s (0-75m/s can be customized) | ±（0.3+0.03V）m/s; V≤30m/s ±（0.3+0.05V）m/s; V≥30m/s (V stands for standard wind speed in a wind tunnel) | 0.01m/s | 4HZ |
| Wind Direction | 0-359.9° | ±3° (wind speed <10m/s) | 0.1° | 4HZ |
| Atmospheric Pressure | 500-1100hPa | ±0.5hPa (25℃, 950-1100hPa) | 0.1hPa | 1HZ |
| Rainfall | Measurement form: piezoelectric type; Measuring range: 0-200mm/h; Resolution: 0.01mm; Sampling frequency: 1HZ | |||
| Operating Temperature | -40℃—80℃ | |||
| Output | Standard product with RS485 interface, ModbusRTU; Customized option SDI-12(additional purchased) | |||
| Maximum Output Frequency | Passive mode: 1/S Active mode: 1/min | |||
| Power Supply | DC9-24V | |||
| Protection Level | IP65 | |||
Videos Show
Features
Multi-Parameter Integration
Integrates six meteorological parameters—temperature, humidity, air pressure, wind speed, wind direction, and precipitation—into a single, compact structure for comprehensive monitoring.
Miniaturized and Highly Integrated Design
The compact and lightweight design with no mechanical parts reduces potential failure points, making on-site installation and maintenance easier,Meteorological monitoring system suitable for unattended operation.
Continuous Monitoring and Digital Output
Supports continuous monitoring in all weather conditions, using RS485 (Modbus RTU) digital communication to output full data in a single pass, with an optional SDI-12 interface.
Wide Measuring and Measurement Accuracy
It features a wide measurement range and stable accuracy, and can operate reliably under various environmental conditions such as extreme temperature and humidity, high wind speed, and standard air pressure.
IP65 protectionments
The shell is made of outdoor-grade weather-resistant material with an IP65 protection rating, which can maintain stable working performance in long-term outdoor exposure environments and reduce later maintenance costs.
Flexible Power Supply and Easy Installation
Supports a wide power supply range of DC 9–24V, compatible with multiple installation methods, and features simple wiring and fixing methods, making it suitable for rapid deployment in various scenarios.

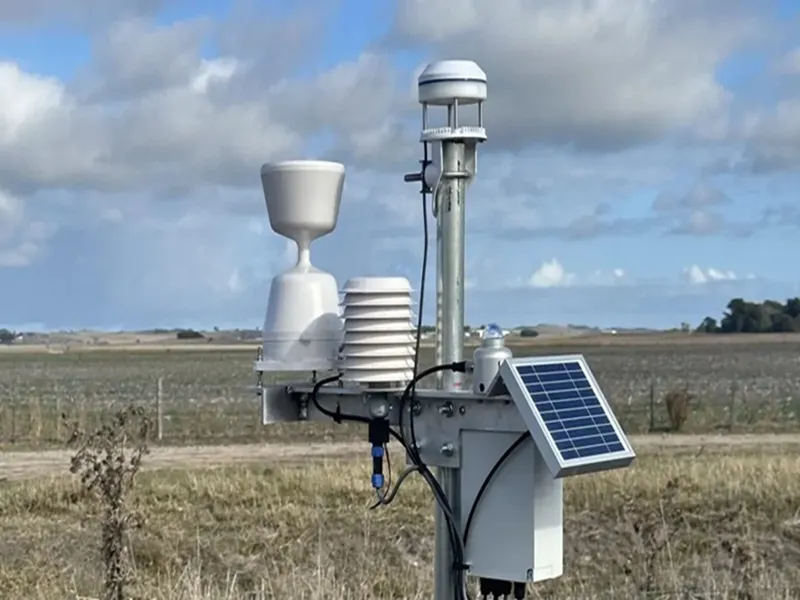

Application
The XF600A is a compact all in one weather sensor that integrates temperature, humidity, precipitation, wind speed, and wind direction. It is suitable for all-weather online monitoring and remote data acquisition, helping to facilitate precise environmental management and decision-making.

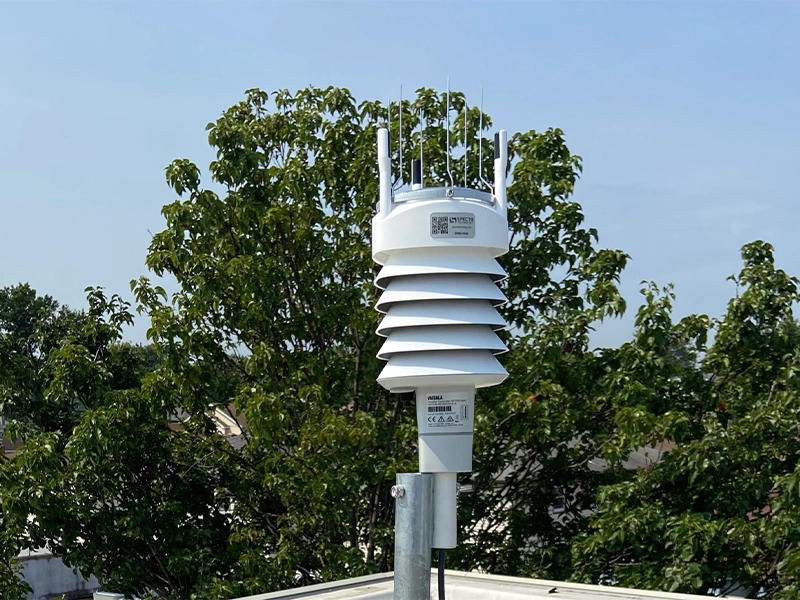

Meteorological Monitoring
Supports the acquisition of core meteorological data from regional meteorological stations and research sites.

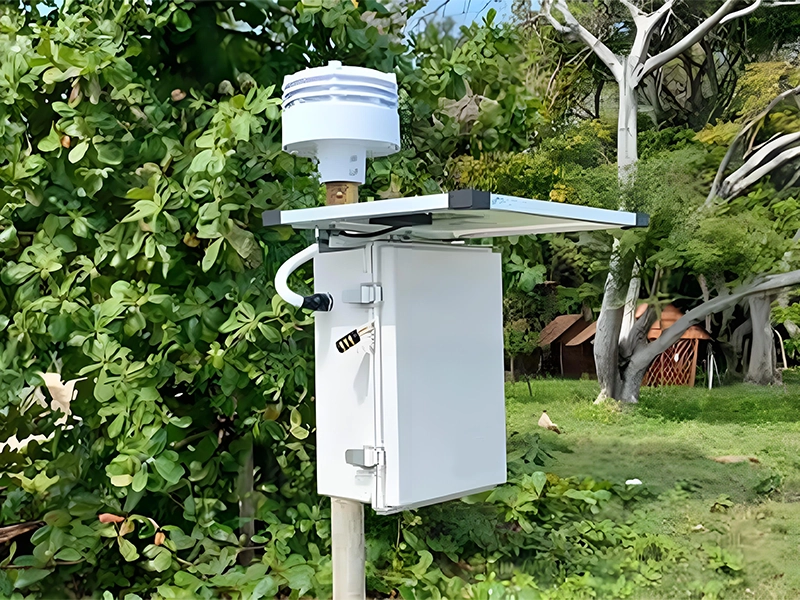

Microenvironment Monitoring
Accurately monitors environmental changes in industrial parks, communities, and small-scale environments.

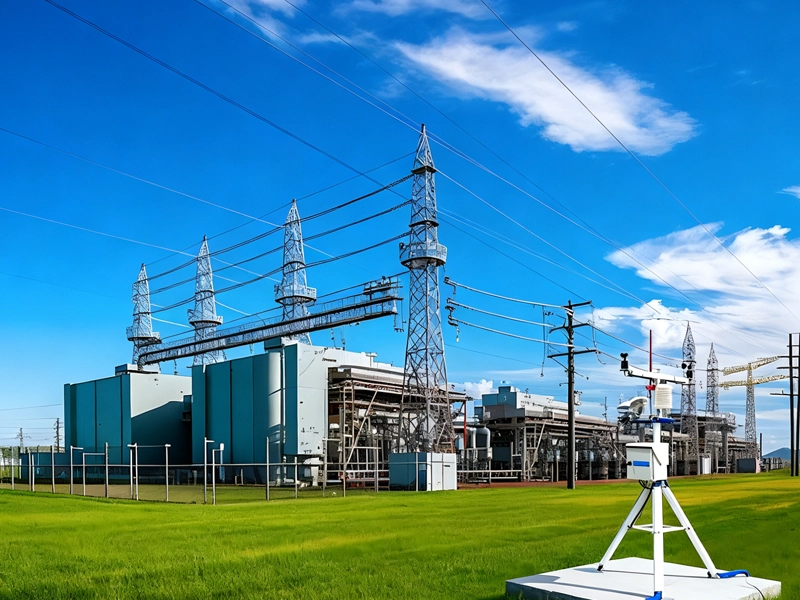

ower Grid Environmental Monitoring
Monitors the environment surrounding substations and transmission lines to ensure power grid safety.

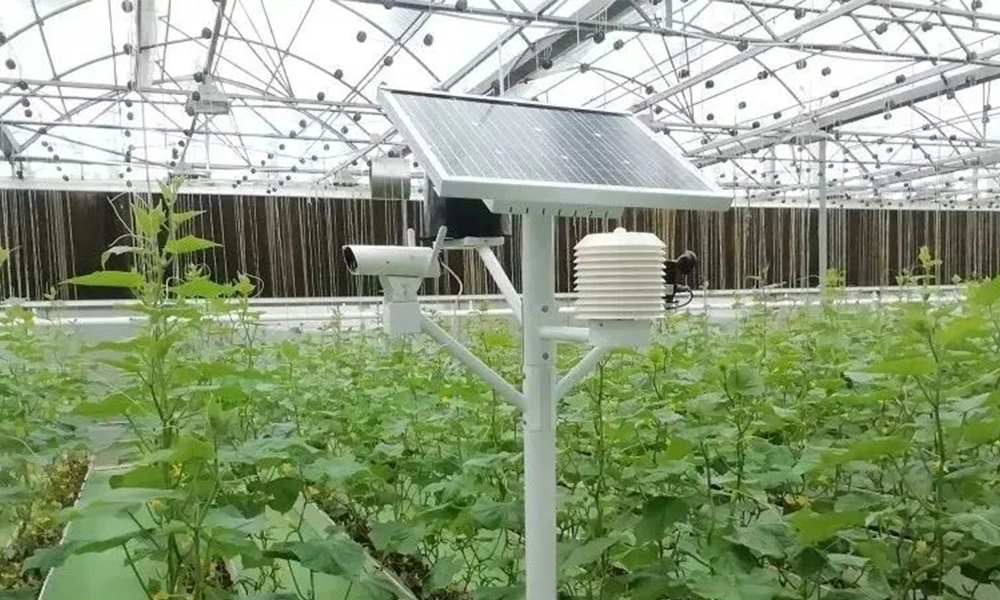

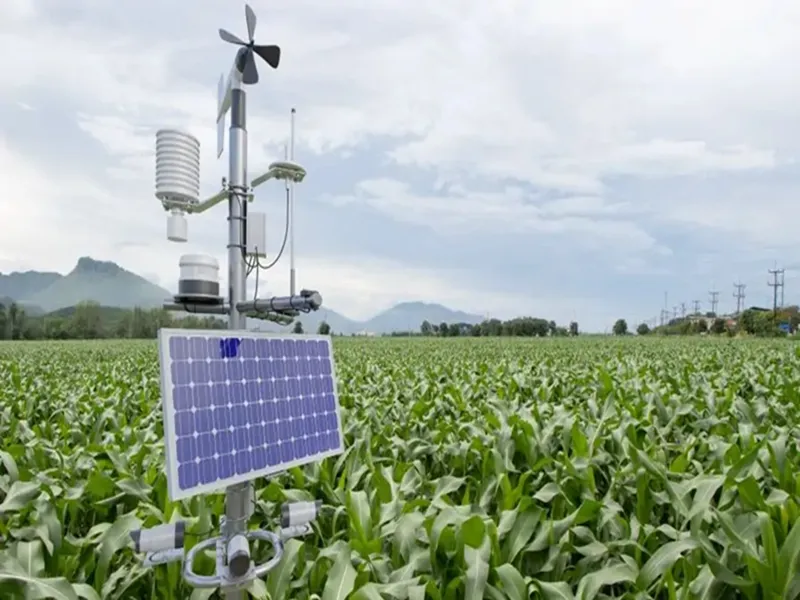

Agricultural Meteorological
Provides irrigation, planting, and disaster early warning support for farmland, production bases, and greenhouses.

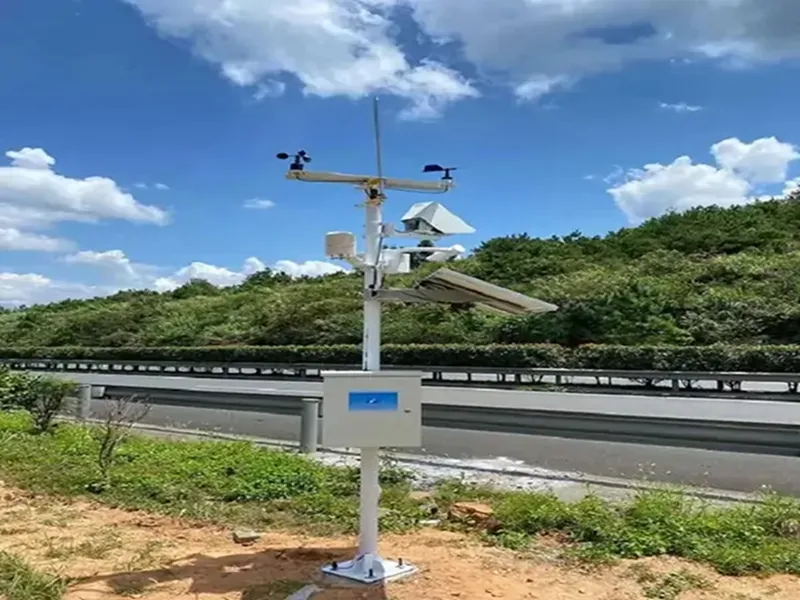

Transportation Meteorological
Monitors meteorological changes in traffic scenarios such as highways and airports in real time.

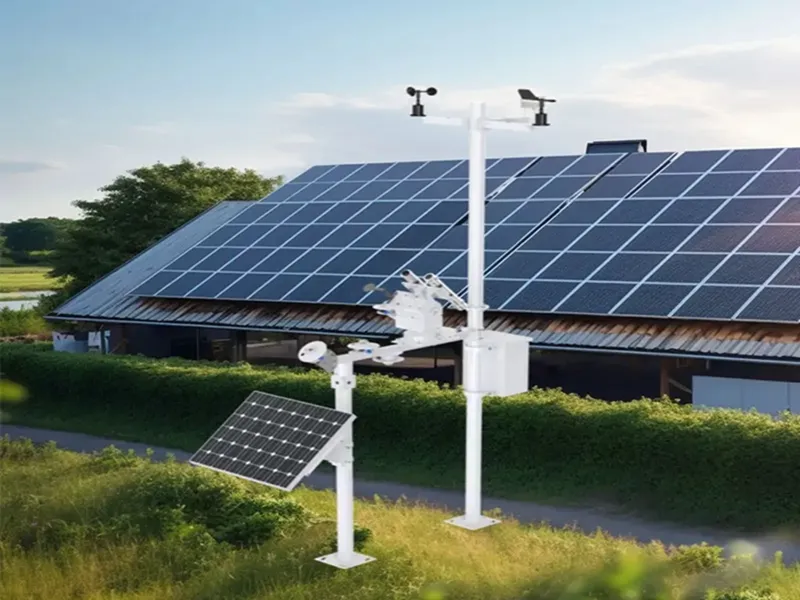

Photovoltaic Environmental
Monitors environmental parameters of photovoltaic power plants to optimize power generation efficiency.
Power Tower Monitoring
Deployed near transmission towers and poles to monitor key environmental factors such as wind, rain, and snow that affect line safety.
Building and Industrial Control
Enables monitoring and management of the environmental status of smart buildings and industrial parks.
Professional compact weather sensor Manufacturer and Supplier
Yantai Sensor is a trusted compact weather sensor manufacturer and supplier, dedicated to delivering high-quality monitoring solutions for temperature, humidity, wind speed and direction, light and solar radiation, soil, water quality, and more. Our products serve a wide range of industries, including smart agriculture, meteorology, environmental protection, wind and solar energy, and photovoltaic monitoring.

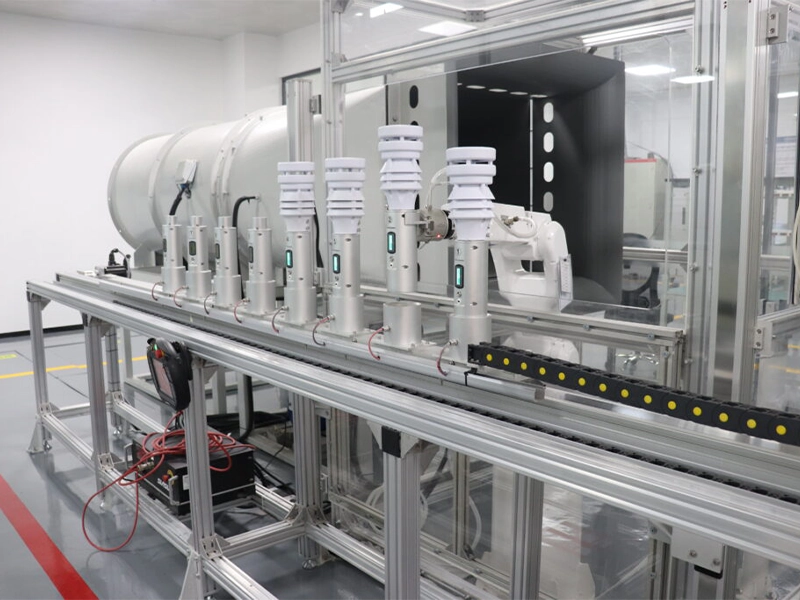

Equipped with a professional wind tunnel laboratory and a product stability testing lab, Yantai Sensor boasts a complete R&D and production team supported by advanced factory equipment. We adhere to rigorous quality standards, holding ISO 9001 and other certifications, and possess independent import and export rights. Contact our professional team today to discuss your custom sensor solution and find the best fit for your application.
